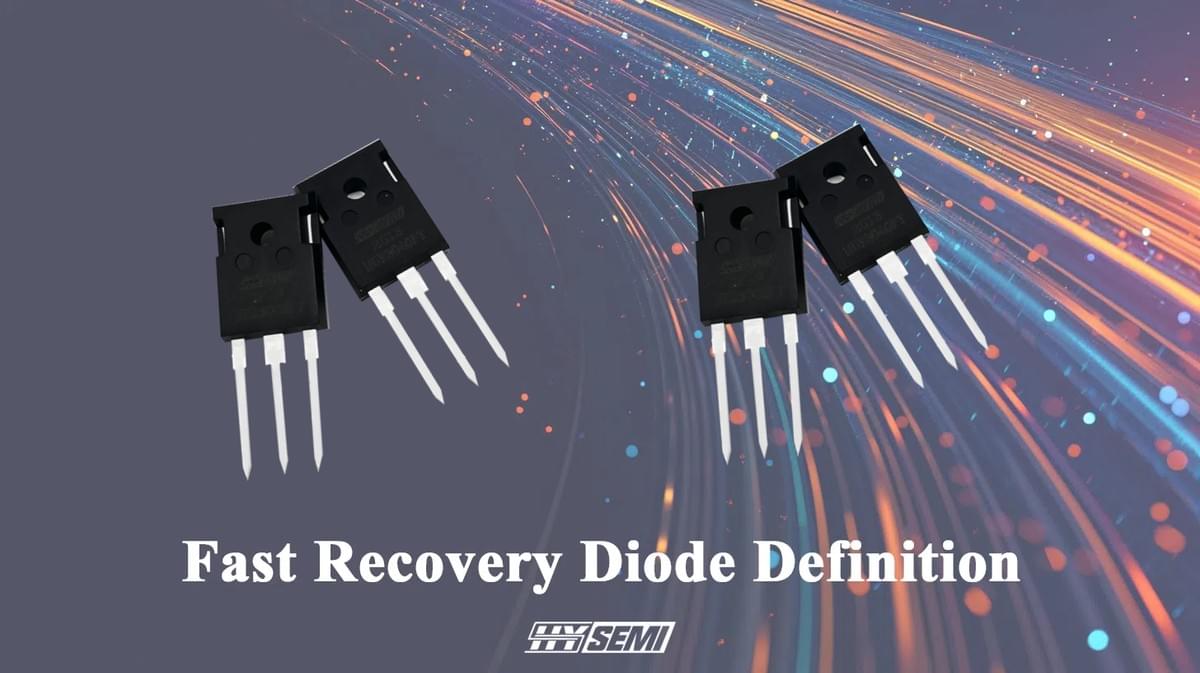

The fast recovery diode definition has evolved significantly over the years. Originally designed for basic rectification, these components now play a critical role in high-speed switching applications. Understanding what is fast recovery diode and how its definition has changed helps engineers optimize modern circuits.
This article traces the development of fast recovery diodes, their current applications, and future trends.
What Is a Fast Recovery Diode?
A fast recovery diode is a semiconductor device that switches off quickly after conducting current. The fast recovery diode definition highlights two key features:
- Fast reverse recovery time (trr) – The time it takes to stop conducting when voltage reverses.
- Low switching losses – Minimizes energy wasted during transitions.
Compared to standard diodes, fast recovery diodes handle high-frequency operations better.
Early Days: Basic Rectification
In the 1960s, the fast recovery diode definition was simple—it was just a diode that turned off faster than standard PN-junction diodes.
- Used in early switching power supplies
- Limited to low-frequency applications
- Bulkier and less efficient than modern versions
Engineers used them where speed mattered, but performance was still limited.
The 1980s-1990s: Rise of Switching Power Supplies
As electronics demanded higher efficiency, the fast recovery diode definition expanded.
- Faster switching – trr reduced from microseconds to nanoseconds
- Improved materials – Silicon carbide (SiC) and gallium arsenide (GaAs) experiments began
- New applications – Switch-mode power supplies (SMPS), inverters
This era answered what is a fast recovery diode used for—enabling compact, efficient power conversion.
2000s-Present: High-Frequency and High-Power Demands
Today’s fast recovery diode definition includes ultra-fast and soft-recovery variants.
- Ultra-fast diodes (trr < 50ns) for RF and telecom
- Soft-recovery diodes – Reduce EMI in sensitive circuits
- Wide-bandgap materials – SiC and GaN diodes push limits further
Engineers now ask when to use a fast recovery diode in:
- Solar inverters
- Electric vehicle chargers
- High-frequency DC-DC converters
Future Trends: Beyond Silicon
The fast recovery diode definition keeps evolving with new technologies:
Silicon Carbide (SiC) Diodes
- Higher temperature tolerance
- Faster switching than silicon
Gallium Nitride (GaN) Diodes
- Ultra-low trr (<10ns)
- Ideal for 5G and aerospace
Integrated Modules
- Diodes combined with MOSFETs/IGBTs
- Optimized for specific applications
When to Use a Fast Recovery Diode?
Not every circuit needs one. Consider fast recovery diodes when:
- High-frequency switching (>10kHz) is required
- Low switching losses are critical
- EMI suppression matters (soft-recovery types)
For low-speed applications, standard diodes may suffice.
Conclusion
The fast recovery diode definition has shifted from a basic rectifier to a high-performance switching component. From early power supplies to next-gen SiC devices, these diodes continue to enable faster, more efficient electronics.
Understanding what is fast recovery diode and its evolution helps engineers choose the right component for modern designs.
