Power module packaging technology serves as the critical bridge between semiconductor chips at the microscopic level and large-scale power electronics applications. As applications expand from home appliances to electric vehicles, and from industrial drives to renewable energy systems, packaging technologies have evolved into multiple technical approaches.
In general, mainstream power module packaging can be categorized into three major types: Intelligent Power Module (IPM) packaging, potting box power module packaging, and advanced packaging technologies such as double-sided cooling and advanced interconnection. These technologies are not simply iterative generations; rather, they evolve in parallel to meet different requirements for performance, cost, and reliability, while also influencing one another.
Intelligent Power Modules integrate gate drivers and protection logic internally, offering high integration and cost efficiency. As a result, they are widely used in home appliances, consumer electronics, and low-to-medium power industrial applications.
The core characteristics of IPM packaging are plastic encapsulation and multi-chip integration, where multiple semiconductor devices—such as IGBTs, fast recovery diodes, and control ICs—are integrated into a single package.
According to substrate and interconnection methods, power module packaging can be further divided into several subcategories.
1.1 Leadframe-Based Power Modules
These packages originate from traditional IC packaging technology and are typically used in cost-sensitive, low-power applications.

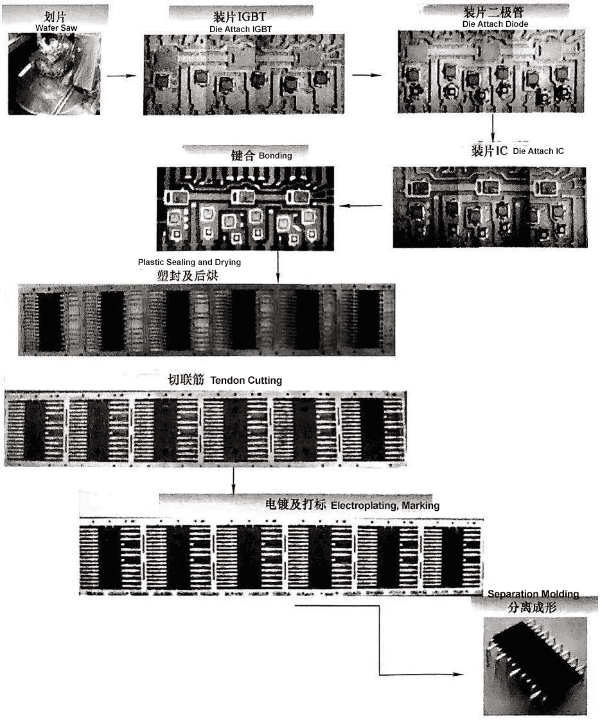

- Leadframe with Silver-Epoxy Die Attach: This structure is commonly used in small appliances and pump speed control systems. Chips are attached using conductive silver epoxy and interconnected with copper bonding wires. The process is simple and highly cost-effective.

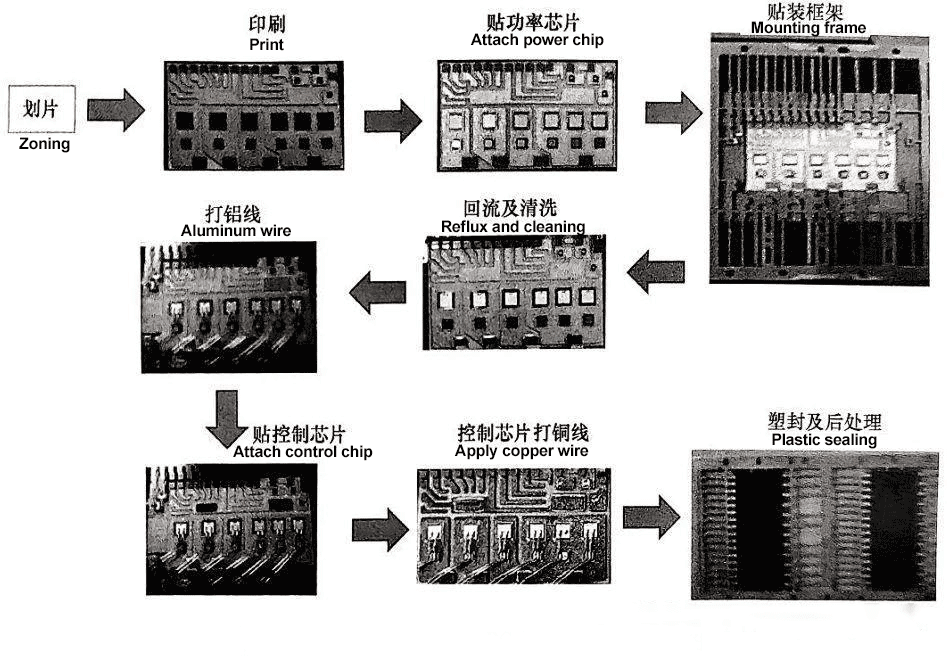

- Hybrid Solder and Silver-Epoxy Die Attach: This design is widely used in inverter-based home appliances where moderate thermal performance is required. The backside of the power chip is soldered directly onto the leadframe heat-spreading island.
Power devices typically use thick aluminum bonding wires to handle high current, while control chips are connected using gold or copper bonding wires, balancing performance and cost.
1.2 DBC-Based IPM
When power levels increase to industrial or automotive ranges, the thermal capability of traditional leadframe structures becomes insufficient. In such cases, Direct Bonded Copper (DBC) substrates become essential.
DBC substrates provide both high-voltage insulation and efficient heat dissipation, making them ideal for high-power modules.(The IPM module of SHYSEMI uses IMS substrate, which has better insulation and thermal conductivity.)
- High Integration: The DBC substrate effectively functions as a circuit board. Using SMT assembly processes, power devices and passive components—such as capacitors and resistors—can be integrated onto a single substrate, significantly improving integration density.
- Efficient Interconnection: High-current paths are typically implemented using thick aluminum wire bonding, while control circuits connect through raised leadframe structures. This results in a highly integrated intelligent power distribution module.
1.3 Key Process Controls in IPM Packaging
Regardless of the packaging type, manufacturing yield depends heavily on precise process control.
Heatsink Attachment
For modules requiring ceramic heatsinks, silicone adhesives are commonly used. The dispensing process must carefully control adhesive distribution, heating conditions, and pressure to ensure uniform thickness and bubble-free bonding.
Bonding Sequence and Fixture Design
In hybrid bonding processes involving thick aluminum wires and fine gold or copper wires, bonding sequence is critical.
Typically, thick aluminum wires are bonded first, leaving sufficient clearance for fine-wire bonding. During subsequent gold or copper wire bonding, special clamping fixtures are used to avoid contact with existing bond wires.
For thermal processes such as reflow soldering, fixture design must balance mechanical locking with thermal stress release. Proper simulation and experimentation are required to prevent component displacement or deformation caused by thermal expansion.
2. Potting Box Power Modules: Reliable Solutions for High-Power Applications
When applications move into high-power domains—such as industrial motor drives and electric vehicle traction inverters—power modules must handle much higher current levels and long-term reliability demands.
In these scenarios, potting box packaging is widely adopted.
These modules typically use DBC substrates as their core structure. Chips are attached to the substrate using solder or more advanced silver sintering technology. To carry hundreds of amperes of current, internal interconnection methods evolve beyond traditional fine wires.
Common interconnection technologies include:
- Thick aluminum wire bonding
- Thick copper wire bonding
- Copper clip or copper plate soldering
After assembly, the module is placed inside a plastic housing and filled with thermally conductive insulating gel to provide environmental protection.
Currently, aluminum wire bonding remains the most widely used and cost-effective interconnection method in high-power modules.
2.1 Interconnection Technology Trade-offs
Aluminum Wire Bonding
A mature and simple process widely used where electrical resistance and thermal limitations remain acceptable.
Copper Clip or Copper Plate Interconnection
Copper provides lower electrical resistance and better thermal conductivity. However, copper plates lack flexibility and must be customized for specific chip layouts.
Another challenge is that copper plate technologies—such as silver sintering or diffusion bonding—cannot directly form reliable joints with aluminum metallization layers on chip surfaces.
Therefore, chip metallization must be adapted, such as:
- Using front-side copper metallized chips
- Depositing additional metal layers (e.g., Ni/Au or Ni/Ag) via chemical plating or PVD
Thick Copper Wire Bonding
This method combines the excellent conductivity of copper with the flexibility of wire bonding and has become an emerging trend in high-power module interconnection technology.
Manufacturing Challenges in Potting Modules
Despite their excellent performance, potting box modules introduce several manufacturing challenges.
- Power Terminal Installation: Strict dimensional control of functional terminals is required to ensure reliable contact during testing and system integration.
- Encapsulation Process Control: The potting process introduces internal pressure on the housing and sealing structure. Engineers must carefully study dimensional variations introduced during manufacturing and select appropriate materials to ensure high production yield and long-term reliability.
3. Future Trends: Double-Sided Cooling and Advanced Packaging Technologies
With the growing adoption of wide-bandgap semiconductors such as Silicon Carbide and Gallium Nitride, power modules are evolving toward higher switching frequencies, higher operating temperatures, and greater power density.
These requirements are driving another generation of packaging innovation, combining the advantages of traditional IPM plastic encapsulation with the power handling capabilities of potting modules.
A key example is double-sided cooling plastic-encapsulated power modules.
3.1 Evolution of IPM Technology: The SPM Example
One notable development is the SPM (Smart Power Module) series originally developed by Fairchild Semiconductor, now part of onsemi.
SPM represents an important implementation form of IPM technology. Some SPM designs adopt assembly concepts from the electronics manufacturing services (EMS) industry—such as printing, SMT placement, and reflow soldering—simplifying manufacturing complexity while maintaining strong electrical performance.
This approach highlights how packaging technologies evolve through cross-industry integration and innovation.
3.2 Double-Sided Cooling Modules: Structural Innovation
If SPM represents a process optimization, double-sided cooling modules represent a structural breakthrough.

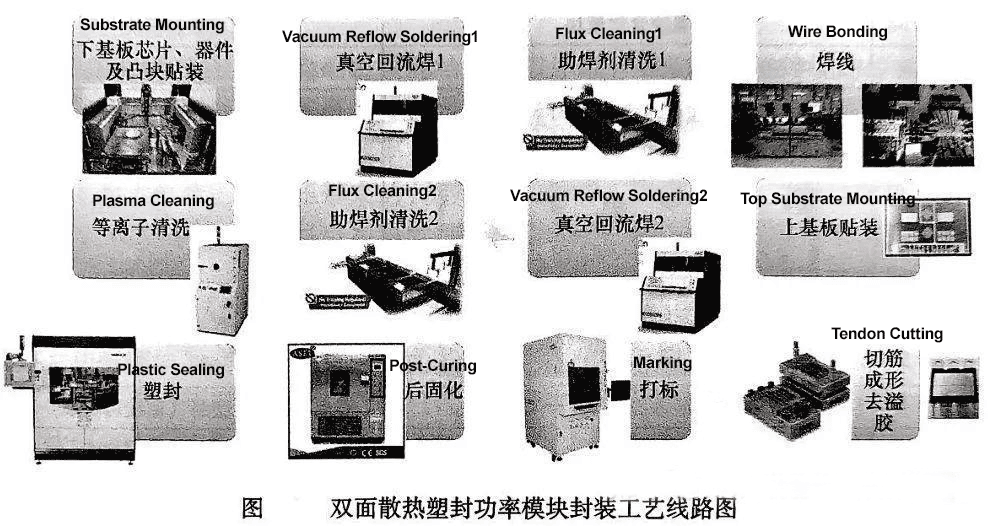

These modules typically adopt a double DBC substrate structure with copper pillars, where chips are mounted between two substrates using solder or silver sintering technology.
Internal interconnections may use bonding wires or copper clips. The entire assembly is then plastic-encapsulated into a compact, flat module. Due to its shape, it is often referred to as a blade-type power module.
Compared with traditional potting modules, double-sided cooling modules provide several major advantages:
- Higher Power Density: The double-sided cooling architecture significantly reduces module size. Even in three-phase integrated designs, the module remains more compact than traditional boxed modules.
- Improved Thermal Performance: Heat can dissipate efficiently from both the top and bottom surfaces of the chip, significantly reducing thermal resistance and enabling the full high-temperature capability of materials such as SiC.
- Enhanced Reliability: Fully molded structures provide better mechanical protection than potting packages, improving resistance to shock and vibration.
The use of silver sintering technology also improves high-temperature performance and provides superior thermal fatigue resistance compared with traditional solder, greatly extending power cycling lifetime.
To fully leverage the benefits of SiC devices, packaging technologies are also evolving:
- Silver sintering replaces traditional solder die attach
- Copper wire or copper clip interconnection replaces thick aluminum wires
- Thermal and electrical resistance are further reduced
Conclusion and Outlook
The development of power module packaging technologies—from leadframe modules to potting box structures and finally to double-sided cooling designs—clearly reflects the industry’s evolution driven by application demands and materials innovation.
- Leadframe-based modules will continue to dominate consumer electronics and low-power industrial applications due to their high integration and cost advantages.
- Potting box modules remain the reliable backbone for high-power industrial systems.
- Double-sided cooling and advanced interconnection technologies represent the future, enabling next-generation power devices such as SiC to unlock new performance levels in electric vehicles and renewable energy systems.
In practice, there is no universal packaging solution. Engineers must carefully balance requirements for thermal performance, power density, reliability, and cost when selecting or combining packaging technologies to achieve optimal system performance.
