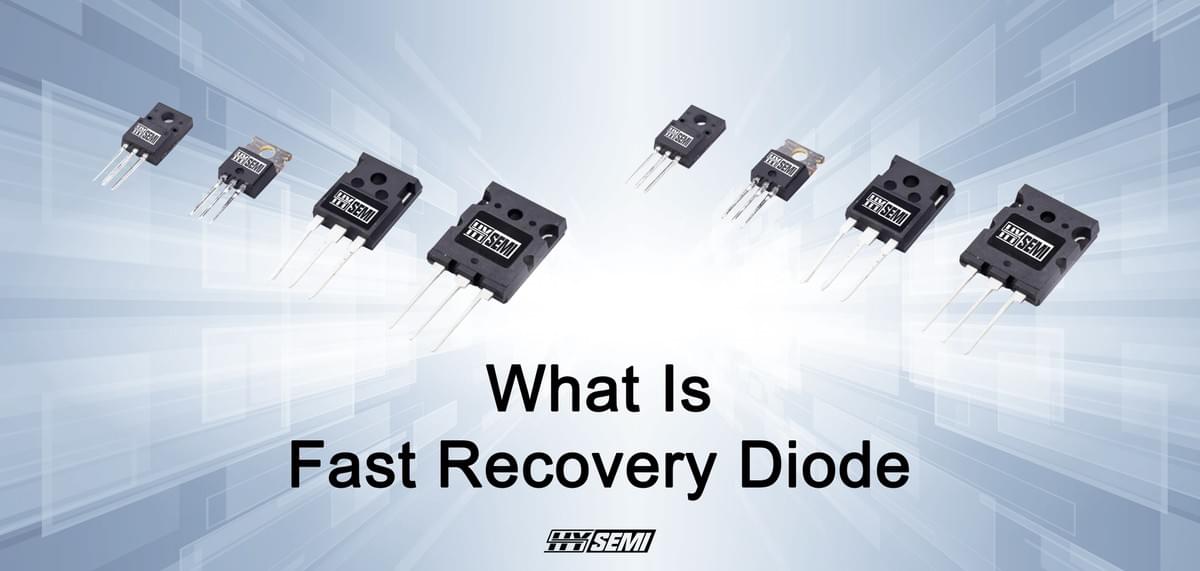

Understanding Fast Recovery Diodes
What is fast recovery diode exactly? It’s a semiconductor that switches off faster than standard diodes. This speed reduces energy loss in circuits. The fast recovery diode definition: A diode optimized for quick transition from conducting to blocking state.
Why does this matter? Slower diodes waste power as heat. Fast ones improve efficiency.
How Fast Recovery Diodes Work
1. Switching Mechanism
- Conducts current in one direction
- Stops conducting rapidly when voltage reverses
- Typical recovery time: <100ns (vs. 500ns+ for standard diodes)
2. Key Components
- Lightly doped N- layer for fast charge clearing
- Platinum or gold doping reduces carrier lifetime
Efficiency Benefits
1. Lower Switching Losses
- Wastes less energy during on/off transitions
- Critical for high-frequency circuits
2. Reduced Heat Generation
- Runs cooler than standard diodes
- Extends component lifespan
3. Improved System Performance
- Enables compact power supply designs
- Supports higher frequency operation
Where are Fast Recovery Diodes mainly applied?
1. Switch-Mode Power Supplies (SMPS)
What is a fast recovery diode used for here?
- Output rectification
- Snubber circuits
2. Inverters and Converters
3. High-Frequency Applications
- RF systems
- Induction heating
When to Use a Fast Recovery

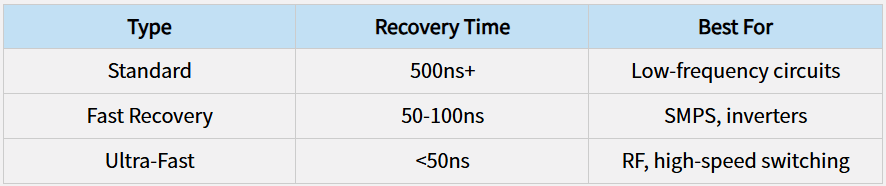

Comparison to Other Diodes
Real-World Impact
1. Solar Inverters
- Gain 1-2% more energy output
- Run cooler in hot environments
- Enable faster switching topologies
- Reduce cooling system size
- Improve motor drive efficiency
- Lower electricity costs
Future Developments
1. Wide bandgap versions (SiC/GaN)
2. Integrated modules with MOSFETs
3. Lower cost through mass production
Conclusion
Now you know what is fast recovery diode and why it matters. These components:
✔ Cut energy waste
✔ Enable compact designs
✔ Improve system reliability
Their role in efficient power conversion keeps growing.
