Introduction
Industrial inverter systems are widely used in motor drives, HVAC equipment, automation systems and variable frequency drives (VFD).
Selecting the right Intelligent Power Module (IPM) is a critical step that directly affects system reliability, efficiency and development cycle.
With a wide range of IPM specifications available on the market, engineers must evaluate multiple parameters beyond basic voltage and current ratings.
This guide outlines the key factors to consider when selecting an IPM for industrial inverter applications, helping engineers make informed design decisions.
The first step in IPM selection is to define the DC bus voltage and load current of the inverter system.
Key considerations:
- Common industrial inverter platforms typically use 600V or 1200V IPMs
- Current rating should include sufficient margin for overload and transient conditions
- Ambient temperature and cooling method must be considered when determining current derating
Choosing an IPM aligned with mainstream industrial voltage classes ensures compatibility with standard inverter architectures.
2. Integrated Functions and Protection Features
One of the key advantages of IPMs is their high level of functional integration.
A well-designed industrial IPM should integrate:
- IGBT devices optimized for inverter operation
- Gate driver circuits
- Short-circuit protection
- Over-temperature protection
- Under-voltage lockout (UVLO)
These built-in protection functions help reduce system-level risk and improve inverter reliability under abnormal operating conditions.
3. Switching Performance and Efficiency
Switching characteristics directly impact inverter efficiency and thermal performance.
When selecting an IPM, engineers should evaluate:
- Switching loss characteristics
- Gate drive compatibility with control strategy
- Trade-off between switching speed and EMI performance
For industrial inverters, a balanced switching performance is often preferred over extreme high-speed operation, ensuring stable and efficient long-term operation.

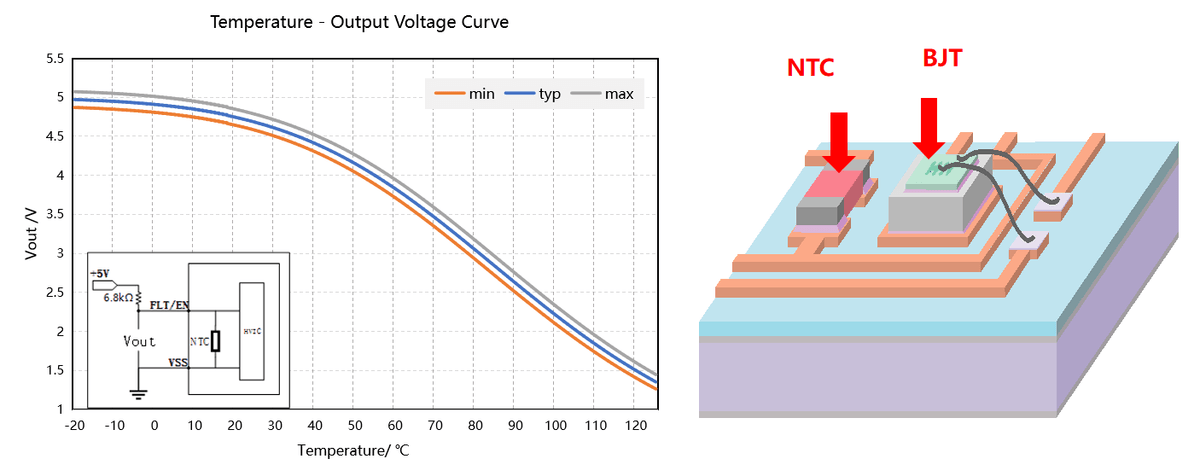

4. Thermal Performance and Package Design
Thermal management is a critical factor in industrial inverter reliability.
Key points to evaluate include:
- Thermal resistance from junction to case
- Package type and mounting method
- Compatibility with existing heatsink designs
IPMs designed with industrial-grade thermal paths help maintain stable operation across a wide temperature range, reducing the risk of premature failure.
5. Mechanical Form Factor and Footprint
Mechanical compatibility is often overlooked during IPM selection but plays an important role in system integration.
Considerations include:
- Package dimensions and pin layout
- Creepage and clearance distances
- Ease of PCB layout and assembly
Selecting an IPM with a compact and standardized footprint simplifies inverter design and allows faster platform reuse across different product models.
6. Application Fit and Industry Use Cases
Different inverter applications may prioritize different IPM characteristics.
Choosing an IPM designed for the same application categories commonly served by industrial inverter platforms helps reduce design uncertainty.
7. Supply Stability and Technical Support
Beyond technical specifications, supply chain reliability and support capability are increasingly important in industrial projects.
Engineers and system integrators should evaluate:
- Long-term product availability
- Lead time stability
- Local technical support and application assistance
IPM suppliers offering flexible manufacturing and responsive technical support can significantly reduce project risk during both development and production stages.
SHYSEMI IPM Selection Advantages
SHYSEMI Intelligent Power Modules are developed based on widely accepted industrial inverter design practices, targeting motor drive and power electronics applications.
SHYSEMI IPM solutions offer:
- Standard industrial voltage classes (600V / 1200V)
- Integrated IGBT, gate driver and protection functions
- Optimized thermal and mechanical design
- Competitive cost-performance balance
- Flexible supply and responsive application support
These features make SHYSEMI IPMs suitable for industrial inverter platforms traditionally served by established global power semiconductor suppliers.
Conclusion
Selecting the right Intelligent Power Module is not only about meeting electrical specifications—it is about achieving a balance between performance, reliability, integration and long-term support.
By carefully evaluating voltage rating, protection features, thermal performance and application fit, engineers can choose an IPM that simplifies inverter design and accelerates product development.
For many industrial inverter applications, a well-selected IPM provides a robust, efficient and scalable solution for modern power electronics systems.
