In the modern industrial electrical sector, Intermediate Frequency (IF) power supplies are widely utilized. As the core component of these systems, the IGBT (Insulated Gate Bipolar Transistor) plays a vital role. This article explores the operational mechanics, key functions, common failure modes, and troubleshooting methods for IGBTs in IF power supply applications.

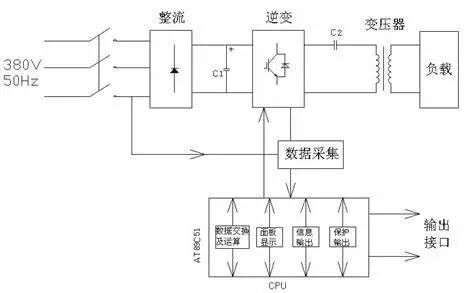

1. Working Principle of IGBTs in IF Power Supplies
In an IF power supply, the IGBT primarily functions as a high-speed switch.
- Turn-On State: When a positive voltage is applied to the gate, an internal channel is formed, allowing electrons to flow from the emitter to the collector. In this state, the IGBT is conductive, acting like an open road that permits high-current transmission.
- Turn-Off State: When the gate voltage is zero or negative, the channel disappears, and the IGBT enters a cutoff state. This acts as a barrier, stopping the flow of electricity.
By precisely controlling the timing and magnitude of the gate voltage, the system can regulate the output current and voltage of the IF power supply with extreme accuracy.
2. The Role of IGBTs in IF Power Systems
- High-Efficiency Power Conversion: IGBTs perform switching actions at high speeds, significantly increasing conversion efficiency. By precisely managing the "on" and "off" states, energy loss during conversion is minimized, lowering overall production costs.
- Precise Frequency Control: IF power supplies must output alternating current at specific frequencies. The rapid switching characteristics of the IGBT allow for the exact modulation of current timing, meeting the stringent frequency requirements of various industrial processes.
- High Voltage and Current Handling: Industrial applications often involve high-stress environments. IGBTs are designed to withstand high voltages and large currents, ensuring stable and reliable power support for heavy-duty machinery.
3. Common Failure Modes and Solutions
A. Overcurrent (OC) Fault
- Symptoms: The operating current exceeds the IGBT's rated value, leading to overheating or catastrophic failure.
- Causes: Load short-circuits or drive circuit malfunctions. For example, a short in the connected load will cause an instantaneous current surge.
- Solutions: Install appropriate overcurrent protection devices, such as fast-acting fuses. These fuses disconnect the circuit immediately upon detecting a surge. Regularly inspect the load and drive circuitry to ensure operational integrity.
B. Overvoltage (OV) Fault
- Symptoms: The voltage across the IGBT exceeds its breakdown rating ($V_{CES}$), leading to a puncture in the semiconductor material.
- Causes: Voltage spikes caused by stray inductance during the switching process. Additionally, abnormal fluctuations in the main grid voltage can trigger this fault.
- Solutions: Implement snubber circuits (absorption circuits), such as RC snubbers, to suppress voltage transients. Use voltage regulators to stabilize the input power and prevent erratic fluctuations.
C. Overheating (OH) Fault
- Symptoms: The IGBT temperature exceeds its safe operating range, compromising performance, reducing lifespan, or causing immediate burnout.
- Causes: Poor thermal management is the primary culprit, including improper heatsink installation or cooling fan failure. Sustained operation at maximum load also generates excessive heat.
- Solutions: Ensure the heatsink is mounted correctly with high-quality thermal interface material. Regularly clean dust from the fins to maintain airflow. Check cooling fans for proper operation and replace them if necessary. Manage the duty cycle and load of the IF power supply to avoid prolonged high-load stress.
4. Conclusion
As the heart of the IF power supply, the IGBT’s unique switching capabilities drive the efficiency of modern industrial production. Understanding common failure modes and preventative maintenance is essential for ensuring system stability and maximizing productivity. As IGBT technology continues to evolve, it will bring further innovation and reliability to the field of intermediate frequency power electronics. [contact us]
