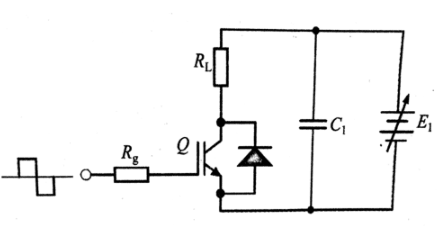

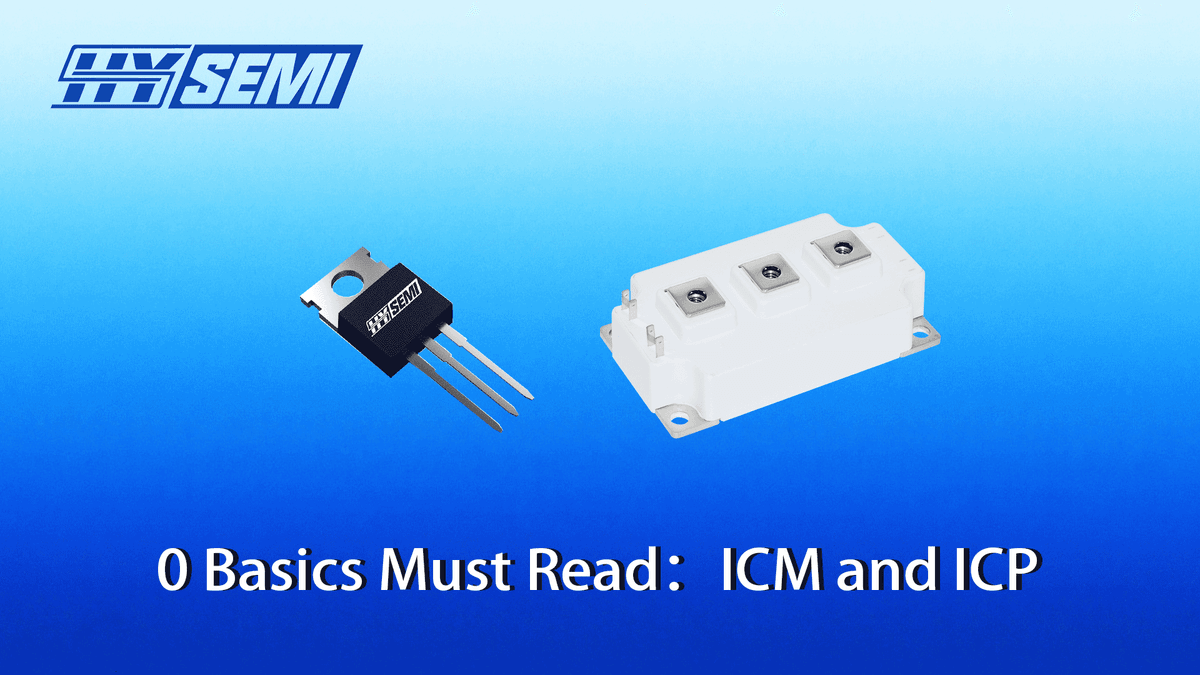

In power electronics design, the selection of IGBTs (insulated-gate bipolar transistors) directly determines system reliability, efficiency, and cost. Collector current limiting parameters are a key design consideration. As a professional power semiconductor chip provider, SHYSEMI's IGBT discrete and IGBT module product lines surpass Japanese counterparts in key performance indicators, reaching leading domestic standards. This article will provide an in-depth explanation of two key IGBT limiting parameters: maximum continuous collector current (ICM) and maximum pulsed collector current (ICP), to help you make more accurate design choices.
1.What are ICM and ICP?
1.1 Maximum Continuous Collector Current (ICM)
ICM refers to the maximum collector current an IGBT can continuously pass without exceeding its maximum rated junction temperature (typically Tj = 150°C or 175°C). This parameter represents the device's long-term reliable operation and is a key indicator for evaluating an IGBT's steady-state current-carrying capacity.
1.2 Maximum Pulse Collector Current (ICP)
ICP refers to the peak current that an IGBT can safely withstand for a short period of time (typically pulses on the order of 1ms or 10ms). This parameter is significantly greater than ICM, ensuring that the IGBT will not be immediately damaged during transient overcurrent conditions such as startup, sudden load changes, or short circuits, thus demonstrating the device's short-term overload capability.
2.Why Distinguish Between ICM and ICP?
The fundamental reason for distinguishing these two parameters lies in thermal effects.
ICM is related to thermal resistance: Continuous current generates continuous power loss within the chip (P = Vce * Ic). This heat must be dissipated promptly through the heat dissipation system to ensure that the junction temperature remains within a safe range. The size of ICM is directly affected by the module's thermal design, heat sink performance, and ambient temperature.
ICP is related to thermal capacitance: Short, high-current pulses also generate significant heat, but due to their extremely short duration, this heat does not have time to be transferred to the entire module and heat sink. Instead, it is primarily absorbed by the chip's own thermal capacity, resulting in a brief spike in chip temperature. As long as the peak junction temperature does not exceed the limit, the device is safe. Therefore, ICP can typically be twice or even higher than ICM.
SHYSEMI's IGBT modules clearly provide ICM and ICP values under different conditions in their product manuals, providing engineers with a precise basis for thermal and system protection design.
3.The Importance of ICM/ICP in Practical Design
Basis for Steady-State Current Design:
When selecting a IGBT discrete or IGBT module, ensure that the application's maximum continuous operating current is less than the device's ICM rating, with ample margin. For example, for a motor rated at 50A, select an IGBT with an ICM greater than 50A, while also considering the overload factor.
Key to Coping with Transient Surges:
Significant current surges occur during motor startup, inverter grid connection, or load short-circuit. In these situations, the ICP parameter is crucial. Designers must ensure that the maximum possible pulse current amplitude and width remain within the safe operating area (SOA) of the device's ICP curve.
Basis of Short-Circuit Protection Design:
IGBTs have a certain short-circuit withstand capability (SCWT), typically less than 10μs. The short-circuit current here is determined by the ICP capability. Protection circuits (such as desaturation detection (DESAT)) must quickly shut down the IGBT within the time and energy allowed by the ICP to prevent device damage from overheating.
4.How to Correctly Utilize ICM and ICP Selection?
— Taking Shenhuaying Products as an Example
When selecting a Shenhuaying IGBT discrete or IGBT module, we recommend the following steps:
Determine application requirements: First, clarify the system's rated voltage, continuous operating current, and the potential peak current and its duration.
Review the datasheet: Carefully review the ICM and ICP charts in the Shenhuaying product manual. Note that ICP is typically correlated with pulse width: the wider the pulse, the lower the allowable peak current.
Perform thermal simulation analysis: Based on the system's cooling conditions, calculate the junction temperature at continuous operating current and ensure it is significantly below the maximum junction temperature, Tjmax.
Confirm the safe operating area (SOA): Ensure that all operating points, including the worst-case transient conditions, fall within the reverse-bias safe operating area (RBSOA) and short-circuit safe operating area (SCSOA). Designing a matching protection circuit: Based on the ICP and SCWT parameters, accurately set the protection circuit's detection threshold and response time to ensure "quick action when necessary and no false action when not."
Conclusion
A thorough understanding of the differences and connections between ICM and ICP is fundamental to proper IGBT selection and reliability design. Ignoring ICM can lead to long-term device overheating and failure; neglecting ICP can cause instantaneous burnout under transient surges. Shenhuaying offers a wide range of IGBT discrete and IGBT module products, all with detailed and rigorous technical specifications and strong technical support. This helps you accurately grasp these two critical parameters, thereby creating efficient, stable, and reliable power electronics systems.
