Transistor Basics: The Building Blocks of Electronics
Transistors control electrical signals. But how does a MOSFET work differently than other types? This article compares MOSFETs to BJTs and IGBTs in real-world applications. First, what does a MOSFET do? It regulates current flow using voltage rather than current.
How Does a MOSFET Work?
To understand how does a MOSFET transistor work, picture a water valve:
- Gate = Handle (voltage opens/closes the channel)
- Source/Drain = Pipe ends (current flows between them)
- Body = Pipe material (usually silicon)
Unlike BJTs, how does MOSFET work as a switch? It uses an insulated gate requiring almost no current to operate.

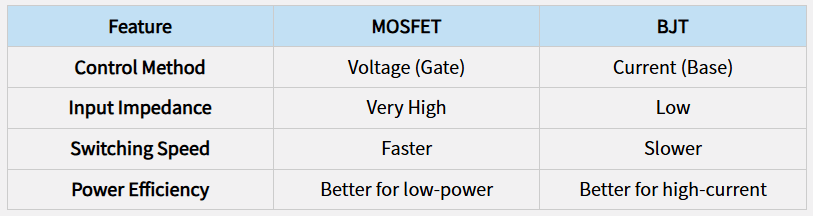

MOSFET vs. BJT: Key Differences
When to Use Which
MOSFET: Digital circuits, power switches
BJT: Analog amplification, simple circuits
MOSFET vs. IGBT: Power Electronics Face-Off
Best Applications
- MOSFET: High-frequency apps (DC-DC converters)
- IGBT: High-power apps (motor drives, inverters)
How Does a MOSFET Work as a Switch?
1. Off State: No gate voltage = No current flow
2. On State: Gate voltage forms channel = Current flows
This makes MOSFETs ideal for:
- PWM motor control
- Power supply regulation
- LED dimming
Real-World Comparisons
1. Audio Amplifiers
BJT: Better sound quality (analog)
MOSFET: More efficient (digital amps)
MOSFET: Battery management systems
IGBT: Main traction inverters
MOSFET: Small-scale systems
IGBT: Utility-scale systems
FAQ
Q: What is a MOSFET and how does it work?
A: A voltage-controlled transistor that switches/amplifies signals efficiently.
Q: How does a MOSFET work as a switch compared to relays?
A: Faster, no moving parts, but can't handle ultra-high currents.
Q: Why use MOSFETs over BJTs in computers?
A: Lower power consumption and higher speed.
Conclusion
Understanding how does a MOSFET work versus alternatives helps designers choose the right transistor. Key takeaways:
✔ MOSFETs excel in high-speed, low-power apps
✔ BJTs dominate analog amplification
✔ IGBTs rule high-power industrial systems
Each has ideal applications where performance matters most.
