In the field of power electronics, the performance of IGBTs (insulated-gate bipolar transistors) directly impacts the efficiency and reliability of the entire system. SHTSEMI's SYD4065RH1 and Inf***on's IKW40N65WR5 are two medium- and high-voltage IGBTs widely used in the industrial and energy sectors.
Each offers unique technical advantages and is suitable for different application scenarios. This article will provide a detailed analysis of the performance characteristics of these two products to help you make the most appropriate choice.
1.Advantages of the IKW40N65WR5
The IKW40N65WR5 is a high-performance 65 A / 650 V IGBT with outstanding static characteristics:

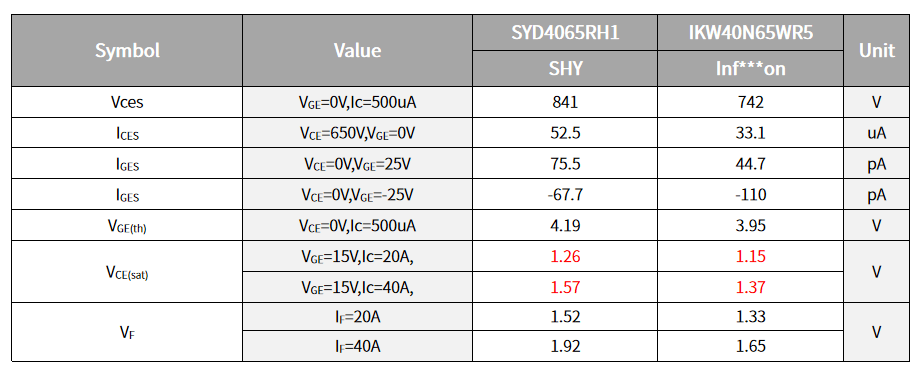

- Lower conduction losses: At 20 A and 40 A, its saturation voltage drop (Vcesat) is 9% and 13% lower than the SYD4065RH1, respectively. This means that under equivalent operating conditions, the IKW40N65WR5 offers superior energy efficiency, making it particularly suitable for high-frequency, high-current applications.
- High input capacitance design: Its unique high input capacitance structure helps improve EMI performance during switching and enhances system stability, making it suitable for applications with strict electromagnetic compatibility requirements.
- Excellent switching characteristics: The IKW40N65WR5 exhibits excellent switching performance across currents from -5 A to -40 A, making it suitable for medium- to high-power systems such as motor drives, photovoltaic inverters, and UPS.
2.Advantages of the SYD4065RH1
The SYD4065RH1 is also a 65 A / 650 V IGBT. Although its saturation voltage drop is slightly higher than that of the IKW40N65WR5, it offers unique advantages in product design and system compatibility:

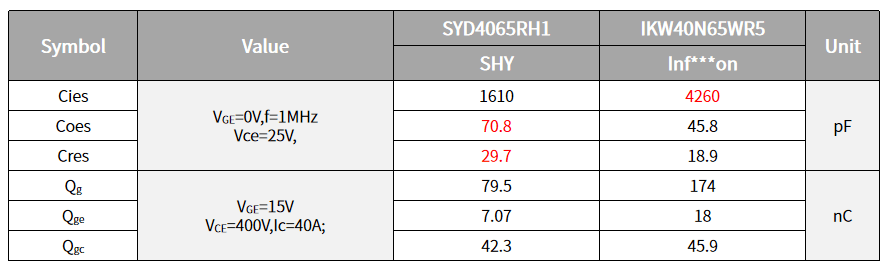

- Optimized capacitor design: Its capacitor parameters differ significantly from those of the IKW40N65WR5, making it more suitable for certain topologies (such as resonant converters and soft-switching circuits), providing better switching coordination and system response.
- High reliability and compatibility: The SYD4065RH1 offers stable performance under various operating conditions, making it particularly suitable for applications requiring high long-term reliability, such as industrial control and power modules.
- Cost-effectiveness: While meeting performance requirements, the SYD4065RH1 may offer a more favorable cost structure, making it suitable for cost-sensitive projects.
3.Summary and Selection Recommendations
If your application requires extremely high energy efficiency and switching performance, especially in high current and high frequency environments, the IKW40N65WR5 is a better choice. If system compatibility, reliability, or cost control are more important, the SYD4065RH1 offers a stable and cost-effective solution.
Both products have their strengths, and the selection should be made based on a comprehensive evaluation of the specific application scenario, system design requirements, and cost budget. Regardless of which you choose, you can expect superior performance and reliable protection for your power electronics system.
*The content of this article is solely for academic research purposes. If there is any infringement, please contact us.
