1.Overview
Modern refrigerators have become significantly more energy-efficient, quieter, and smarter than previous generations. This transformation is driven by inverter-based variable-speed control, which applies advanced vector control algorithms and power electronics to modulate the compressor motor speed continuously. By dynamically adapting to thermal load variations and minimizing enclosure heat loss, inverter refrigerators deliver substantial improvements in energy savings, noise reduction, and food preservation - ultimately enhancing overall living quality.
To support these next-generation, high-precision home appliance systems, Shenhuaying Semiconductor has developed a dedicated series of Intelligent Power Modules (IPMs) tailored for inverter refrigeration platforms.
2.Key Features and Advantages of Shenhuaying Semiconductor’s IPM Solutions
- High system efficiency
- Low acoustic noise
- Enhanced constant-current control performance
- Minimized defrosting energy consumption
3.Target Applications
- Major home appliances
- White goods and consumer appliances

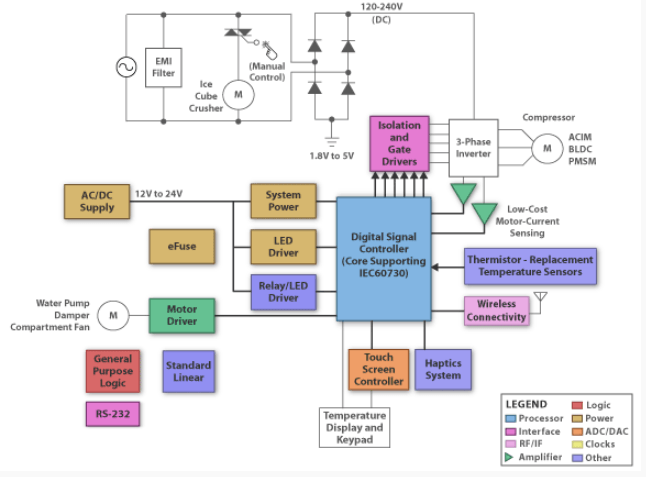

4.System Block Diagram
5.Design Considerations Energy Utilization
Motors used in white goods (household appliances) are often oversized to handle variable load torque and transient conditions. Traditional scalar control techniques frequently result in reduced efficiency and increased audible noise, limiting energy utilization to approximately 40%–50% in typical systems.
By integrating digital signal controllers (DSCs) into the motor control architecture, designers can achieve 85%–90% energy utilization, enabling smaller, quieter, and more efficient compressors and fan motors. High-efficiency appliances are essential for obtaining government energy certifications, such as EPA approvals and the U.S. Department of Energy ENERGY STAR® ratings.
6.Development Trends in Modern Refrigeration
6.1 Smart Home Networking
Future home environments will evolve into fully connected networks integrating appliances, A/V equipment, HVAC systems, and lighting. Although this vision once seemed distant, it is now achievable with Zigbee™- enabled wireless technologies. Industry-leading Zigbee-compliant SoCs and patented RF ICs have accelerated innovation in low-power wireless control.
Using today’s Zigbee™ devices, appliance manufacturers can create next-generation smart refrigerators capable of interacting with other household devices. For example, when a wash cycle finishes, a notification may appear on the user’s TV, refrigerator display, or remote LCD panel. This ecosystem enables universal remote control and seamless coordination across appliances.
Key Advantages
- No line-of-sight required
- Zigbee expands control range, enabling users to operate any Zigbee-enabled device from anywhere in the home.
- Supports bidirectional communication
- Appliances can share status information across the home network.
6.2 Automated Inventory Management
Manufacturers are actively exploring RFID-enabled smart refrigerators capable of tracking food inventory and displaying real-time information on an integrated LCD panel. As RFID tags become common on consumer goods, refrigerators equipped with RFID readers will automatically monitor items entering and leaving storage.
Once major supermarket chains adopt RFID as the primary technology for checkout and stock management, smart refrigerators with automated inventory tracking will become a widespread reality.
