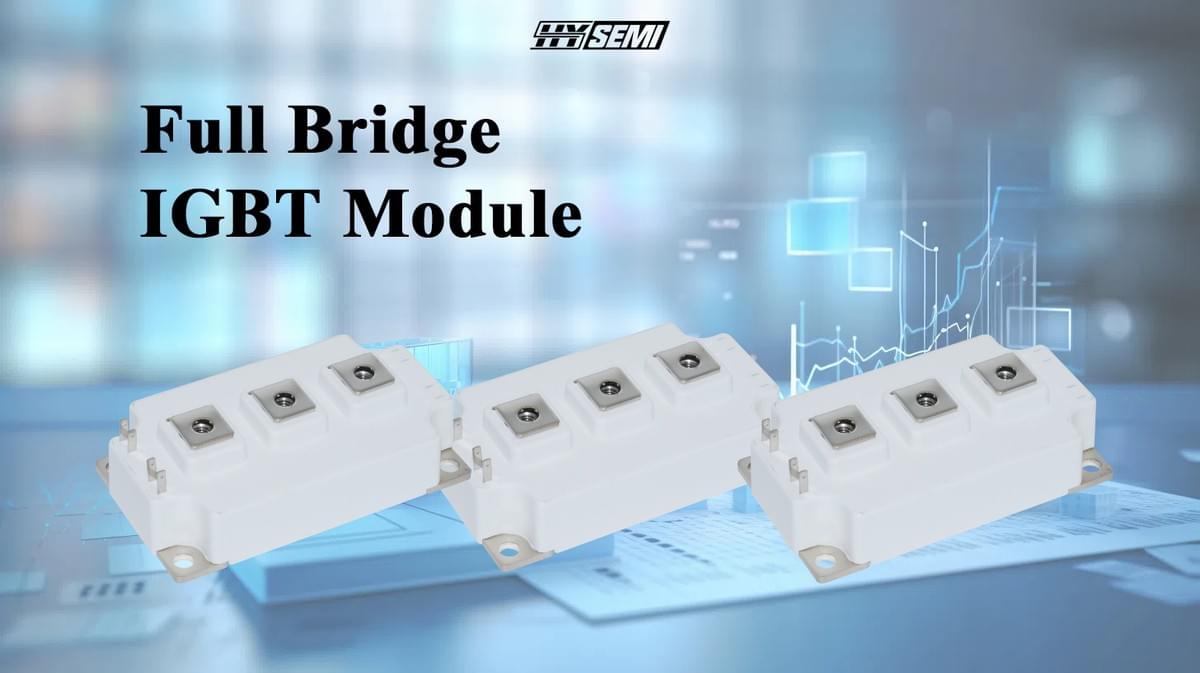

Most engineers use full bridge IGBT modules for basic power conversion. But these advanced components have untapped potential. Beyond standard switching, they offer features that boost performance, efficiency, and reliability—if you know how to use them.
Whether you're working with an IGBT inverter, motor drive, or high-voltage supply, these hidden capabilities can give your design an edge.
1. Built-In Fault Reporting (That Many Ignore)
Many full bridge IGBT modules include diagnostic pins for:
- Over-temperature warnings
- Short-circuit alerts
- Under-voltage lockout (UVLO) status
Why this matters:
These signals can prevent catastrophic failures, enable predictive maintenance, and reduce debugging time. Most designers overlook them. Check your IGBT module datasheet—you might find free protection features.
2. Adjustable Dead-Time Control
Dead-time (the brief pause between switches) is critical in IGBT module inverter designs. Some advanced full bridge IGBT modules allow:
- Dynamic dead-time adjustment
- Automatic dead-time optimization
Key benefits:
This reduces shoot-through risk, improves efficiency at different loads, and extends module lifespan. Compare this to basic half bridge IGBT module designs, where dead-time is fixed.
3. Programmable Switching Speed
Not all applications need ultra-fast switching. Some full bridge IGBT modules let you:
- Slow down turn-on/off for reduced EMI
- Speed up switching for higher efficiency
Ideal applications:
- Industrial drives (slower switching means less noise)

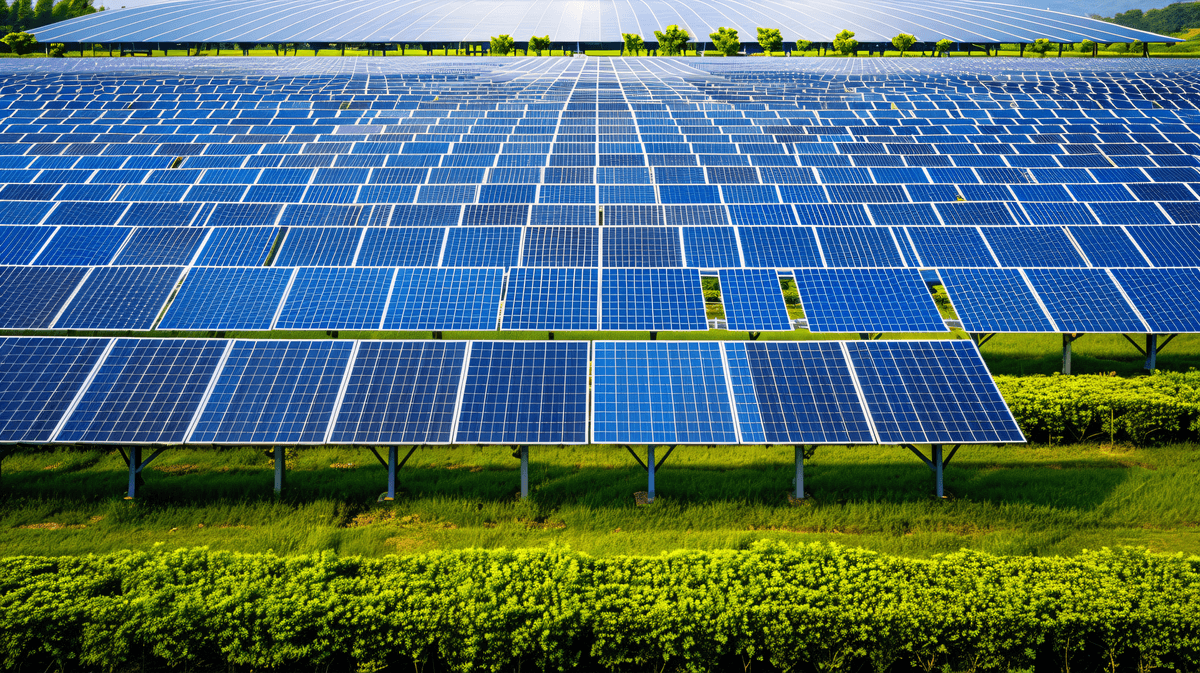

- Solar inverters (faster switching improves efficiency)
This feature is often buried in the IGBT module PDF documentation.
4. Integrated Temperature Mapping
High-end full bridge IGBT modules include:
- Multiple thermal sensors
- Hotspot detection algorithms
Advantages:
This provides real-time thermal profiling, better heat management, and prevents localized overheating. Most engineers rely on single-point temperature readings, but this gives a complete picture.
5. Advanced Gate Drive Compatibility
Your full bridge IGBT module might support:
- Negative gate voltages (for safer turn-off)
- Adaptive gate drive strength
Why this matters:
It works with smarter gate drivers, handles voltage spikes better, and improves reliability in harsh conditions. This is why IGBT module testing should include gate drive validation.
How to Test These Features
Want to verify if your full bridge IGBT module has these capabilities?
- Review the datasheet thoroughly – Look for terms like "programmable dead-time" or "multi-zone temperature monitoring."
- Run controlled tests – Use the how to test IGBT module procedures from the manufacturer.
- Experiment with gate signals – Try adjusting parameters to see if the module responds.
Conclusion
Your full bridge IGBT module is likely more capable than you think. From smart fault reporting to adaptive switching, these hidden features can improve system reliability, boost energy efficiency, and simplify your design. Next time you work with an IGBT module, dig deeper into its specs. You might unlock performance you didn't know existed.
