Energy efficiency is no longer optional—it’s a necessity. Enter SiC power modules, the breakthrough technology setting new benchmarks in power electronics. Unlike traditional silicon-based systems, silicon carbide power modules deliver:
- Up to 50% lower energy losses
- Higher temperature tolerance
- Smaller, lighter designs
This article explores how SiC power modules work, where they excel, and why they’re transforming industries.

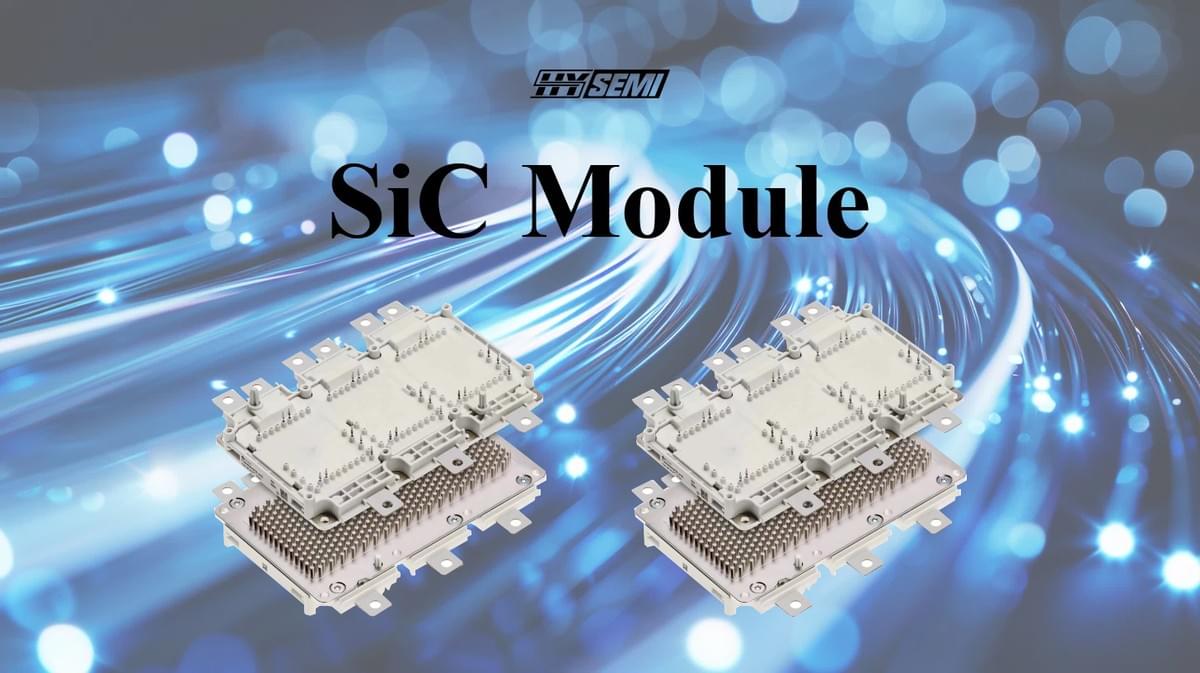

What Is a SiC Module?
A SiC power module is an advanced semiconductor device using silicon carbide (SiC) instead of silicon.
Key Components:
- SiC MOSFETs/Diode Chips – Handle high voltages efficiently
- Advanced Packaging – Manages heat and power density
- Gate Drivers – Ensure precise switching
SiC Power Module Purpose:
- Convert power with minimal loss (e.g., DC to AC in EVs)
- Operate reliably in extreme conditions
Why SiC Outperforms Silicon
1. Lower Energy Losses
Silicon carbide modules lose less power as heat.
Example: EV inverters using SiC modules gain 5-10% more range.
2. Higher Switching Speeds
- SiC power modules switch faster than silicon IGBTs.
- Reduces energy waste in solar inverters and motor drives.
3. Compact & Lightweight
- Silicon carbide power modules handle more power in smaller packages.
- Critical for aerospace and portable electronics.
Top Applications of SiC Power Modules
- SiC modules in inverters improve efficiency by 10-15%.
- Enables faster charging (800V+ systems).
- Solar inverters with SiC power modules lose 30% less energy.
- Wind turbines benefit from their high-temperature resilience.
Factories using silicon carbide modules cut energy costs by 20%.
Challenges & Solutions
1. Higher Cost (But Falling Fast)
- Early SiC modules were expensive.
- Mass production (e.g., by Tesla) is reducing prices.
2. Thermal Management
- SiC power modules run hot but dissipate heat better.
- Advanced cooling designs (e.g., liquid cooling) help.
Future of SiC Power Modules
- Wider Voltage Ranges – Supporting 1,200V+ systems.
- Integrated Designs – Combining sensors and AI for smart control.
- Cost Parity – Expected by 2027 vs. silicon.
FAQ
Q: What is a SiC module’s lifespan?
A: Typically 100,000+ hours—longer than silicon.
Q: Can SiC modules replace silicon IGBTs?
A: Yes, in high-power/high-frequency applications.
Q: Where are silicon carbide modules used most?
A: EVs, solar inverters, and industrial drives lead adoption.
Conclusion
SiC power modules are revolutionizing energy efficiency. With:
✔ Lower losses than silicon
✔ Higher power density
✔ Growing affordability
They’re key to greener EVs, solar farms, and factories. The future of power electronics is silicon carbide.
