Power electronics is undergoing a silent revolution. The key player? IGBT SiC—a hybrid technology combining the best of IGBTs and silicon carbide (SiC). Unlike traditional silicon-based systems, IGBT SiC delivers:
- Higher efficiency (up to 50% less energy loss)
- Better thermal performance (handles extreme heat)
- Smaller, lighter designs
This article explores why IGBT SiC is a game-changer and where it’s making the biggest impact.
What Is IGBT SiC?

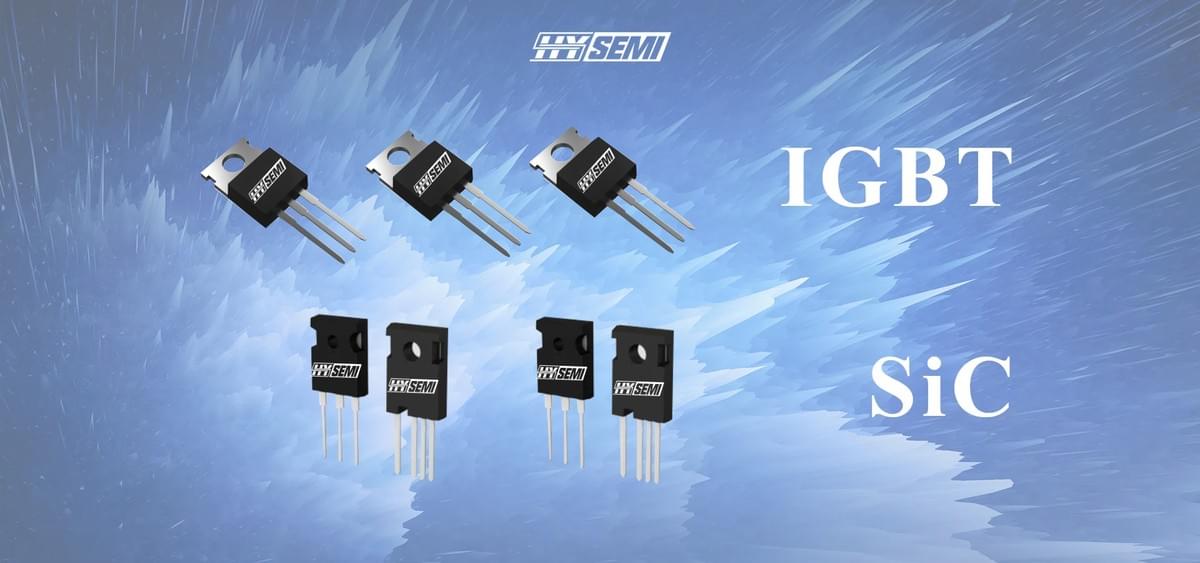

IGBT SiC merges two technologies:
- IGBTs – High-power handling
- Silicon carbide MOSFETs – Fast switching and efficiency
Key Advantages of IGBT SiC:
- Lower energy losses than standard IGBTs
- Higher voltage ratings (e.g., 1700V SiC MOSFET module)
- Longer lifespan in harsh conditions
This makes IGBT SiC ideal for EVs, solar inverters, and industrial drives.
Why IGBT SiC Outperforms Traditional Solutions
1. Unmatched Efficiency
- Silicon carbide MOSFET advantages include near-zero switching losses.
- SiC MOSFET power modules cut energy waste in solar farms by 30%.
2. Extreme Temperature Resistance
- Standard IGBTs overheat at 150°C.
- IGBT SiC operates reliably at 200°C+.
3. Compact Power Density
- A SiC MOSFET module fits 2x more power in the same space.
- Critical for EVs and aerospace.
Top Applications of IGBT SiC
- 1700V SiC MOSFET modules enable faster charging (15-20 minutes).
- Extends range by 10-15% vs. silicon IGBTs.
- Solar inverters using SiC MOSFET power modules hit 99% efficiency.
- Wind turbines benefit from their durability.
- Factories save 20% energy with IGBT SiC drives.
Challenges & Solutions
1. Higher Cost (But Dropping Fast)
- Early silicon carbide MOSFET prices were steep.
- Mass production (led by Tesla, Toyota) is cutting costs.
2. Complex Drive Requirements
- SiC MOSFET modules need specialized gate drivers.
- New ICs simplify design.
The Future of IGBT SiC
- Higher Voltage Ratings – 3.3kV+ modules coming.
- AI-Optimized Control – Smarter power management.
- Wider Adoption – Cost parity expected by 2026.
Conclusion
IGBT SiC isn’t just an upgrade—it’s redefining power electronics. With:
✔ Record-breaking efficiency
✔ Superior thermal performance
✔ Rapidly falling costs
It’s the backbone of tomorrow’s EVs, grids, and factories. The revolution is here.
FAQ
Q: How does IGBT SiC differ from pure SiC MOSFETs?A: IGBT SiC blends IGBT robustness with SiC speed—ideal for very high power.
Q: Where is IGBT SiC used most?A: EV drivetrains, mega solar farms, and heavy industrial equipment lead adoption.
Q: Are silicon carbide MOSFETs reliable?A: Yes—lifespans exceed 100,000 hours in proper conditions.
