Welding machines are essential components in modern industrial production, and their performance directly impacts welding quality and production efficiency. Among various types of welding equipment, Insulated-Gate Bipolar Transistors (IGBTs), core components in power electronics, are driving welding machine technology into a new stage of development. This article will delve into the key technical advantages of IGBTs in welding machines and highlight the innovative features and practical applications of SHYSEMI IGBT products.
The Core Role of IGBTs in Welding Machines

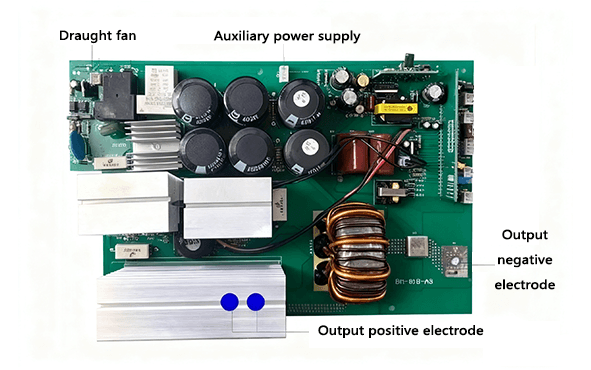

In modern welding machine systems, IGBTs perform the critical tasks of power conversion and control. Their unique operating mechanism combines the high input impedance of MOSFETs with the low on-state voltage drop of gate turn-off thyristors (GTRs), making them particularly suitable for applications requiring high power output, such as welding machines.
Key Technical Features:

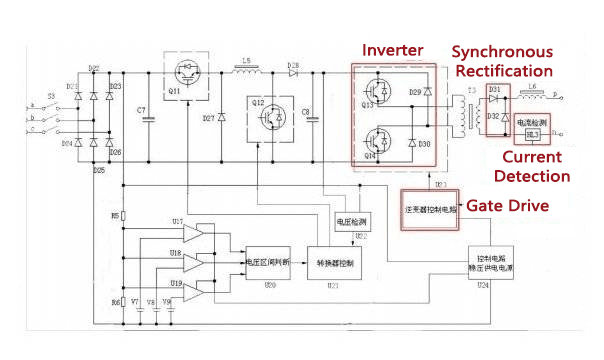

High-speed switching capability: IGBTs can achieve switching frequencies of 20 kHz to 50 kHz, far exceeding those of traditional power devices. This feature enables more precise current control in welding machines, maintaining arc stability during the welding process. For example, in pulse welding applications, the IGBT's fast switching characteristics ensure accurate reproduction of current waveforms, resulting in more uniform welds.
Excellent energy efficiency: SHYSEMI's IGBTs utilize advanced FS IGBT technology, achieving over 20% improvement in efficiency compared to traditional thyristor welders.This enhancement translates directly into a significant reduction in energy consumption. For instance, a 400 A industrial welder can save thousands of yuan in annual electricity costs.
Intelligent control capability: The IGBTs seamlessly integrate with microprocessor control systems, enabling precise digital adjustment of welding parameters. Modern IGBT drive circuits integrate multiple protection features, including overcurrent, overtemperature, and short-circuit protection, significantly enhancing equipment reliability and safety.
SHYSEMI IGBT's Innovative Technological Advantages
Based on years of technological development, SHYSEMI has developed a proprietary FS IGBT technology platform, achieving breakthrough innovations in device structure, process technology, and packaging.
Core Technology Breakthroughs:
Field-Stop (FS) IGBT Technology: Compared to traditional punch-through (PT) and non-punch-through (NPT) IGBTs, FS IGBT technology offers higher power density, lower conduction losses, improved short-circuit capability, and superior temperature characteristics. By incorporating a highly doped field-stop layer within the thick-body structure, it effectively shortens carrier transmission distances and optimizes electric field distribution, resulting in higher current density and efficiency, as well as superior thermal stability.
Advanced Packaging Technology: The TO-247 package design optimizes heat dissipation, maintaining low operating temperatures even under high loads and extending device service life.
Product Series Solutions:
SHYSEMI offers a complete range of discrete IGBT solutions for welding machines of varying power levels:
Medium and Low Voltage Series (600 V/650 V, 30 A–100 A): Utilizing third-generation micro-trench technology, the saturation voltage drop is reduced to 1.8 V (@25°C). This series offers efficient power conversion and stable performance, making it particularly suitable for portable welding machines and low- to medium-power industrial welding equipment.
High-Voltage, High-Current Series (1200 V, 20 A–100 A): Based on proprietary carrier enhancement technology, this series effectively improves conduction characteristics under high-voltage conditions while maintaining fast switching performance. These products are particularly suitable for high-power industrial welding machines with three-phase input, maintaining stable performance even in high-temperature environments.
In-Depth Analysis of Typical Application Scenarios
Manual Metal Arc (MMA) Welding Applications: SHYSEMI's 600 V/650 V IGBT series demonstrates excellent performance in small welding equipment. Its fast dynamic response ensures sufficient current surge during arc ignition while maintaining stable arc length throughout the welding process.
Tungsten Inert Gas (TIG) Welding Applications: The low switching losses of SHYSEMI's IGBTs are particularly important for precision welding of materials such as stainless steel and aluminum alloys. The soft switching technology effectively reduces di/dt and dv/dt, significantly minimizing electromagnetic interference during welding, ensuring weld quality, and preventing material damage caused by thermal effects.
Gas Metal Arc (MIG) Welding Applications: In automated welding production lines, SHYSEMI's 1200 V high-voltage IGBT series demonstrates unique advantages. Its advanced current control algorithm ensures perfect synchronization between wire feed speed and welding current. The high-efficiency power control maintains a stable welding process, prevents quality issues caused by current fluctuations, and effectively reduces spatter.
Conclusion
SHYSEMI, with its extensive technical expertise and continuous investment in innovation, provides the welding industry with high-performance and highly reliable IGBT solutions. From portable manual welders to fully automated industrial welding systems, SHYSEMI's IGBTs play a key role in improving welding quality, reducing energy consumption, and enhancing equipment reliability. Moving forward, SHYSEMI will continue to collaborate closely with industry partners to advance welding technology toward greater efficiency and intelligence, providing solid core technological support for the transformation and upgrading of the manufacturing industry.
