If you’ve ever searched for 'IGBT meaning in text', you likely found a dry definition: 'Insulated Gate Bipolar Transistor—a power semiconductor device'. But what does that actually mean in practice?
In reality, IGBTs are the workhorses behind:
Your electric car’s smooth acceleration
Solar inverters converting DC to AC
Factory robots moving with precision
This article bridges the gap between textbook IGBT meaning in text and real-world use. We’ll explore IGBT modules, compare half-bridge vs. full-bridge IGBT modules, and see how they power IGBT 3-phase inverters.
IGBT Meaning in Text: The Textbook Definition
The IGBT meaning in text boils down to:
Insulated Gate: Like a MOSFET, it’s voltage-controlled.
Bipolar: Conducts current like a BJT, handling high power.
Transistor: A switch for electricity.
But this doesn’t explain why engineers obsess over IGBTs. Let’s fix that.
From Text to Reality: How IGBTs Actually Work
1. IGBT Modules: The Building Blocks
An IGBT module packages multiple IGBTs with:
Gate drivers
Protection circuits
Thermal pads
Used in:
IGBT 3-phase inverters (more on this later)

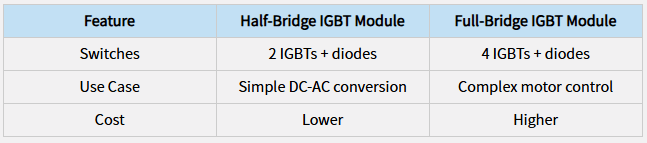

2. Half-Bridge vs. Full-Bridge IGBT Modules
Example: A half-bridge IGBT module might power a small pump, while a full-bridge IGBT module runs an EV’s traction motor.
3. IGBTs in 3-Phase Inverters
An IGBT 3-phase inverter converts DC (e.g., from a battery) into 3-phase AC for:
Industrial motors
EV drivetrains
Grid-tied solar systems
Key advantage: Smoother power delivery than single-phase designs.
Why the Text Definition Falls Short
The IGBT meaning in text misses critical real-world factors:
Heat Management: Textbooks rarely mention that IGBT modules need heatsinks or liquid cooling.
Gate Resistance: In theory, IGBTs switch instantly. In reality, tuning gate resistors prevents damage.
Parallel Operation: Few texts explain how to sync multiple IGBT modules for high-power systems.
Real-World Challenges (That Textbooks Don’t Cover)
1. Voltage Spikes
Textbook: IGBTs block high voltage.
Reality: Sudden spikes can kill them without snubber circuits.
2. Switching Losses
Textbook: "Low conduction losses."
Reality: Fast switching generates heat, requiring careful thermal design.
3. Module Failures
Textbook: Lists specs.
Reality: Half-bridge IGBT modules fail differently than full-bridge ones.
Bridging the Gap: Tips for Engineers
1. Read Beyond the Datasheet
Test IGBT modules under real loads.
2. Simulate First
Software like LTspice models IGBT 3-phase inverter behavior.
3. Monitor Temperatures
Use thermal cameras on prototypes.
FAQ: Quick IGBT Clarity
Q: Is an IGBT just a fancy transistor?
A: Yes—but optimized for high power and efficiency.
Q: Why use a full-bridge IGBT module over a half-bridge?
A: For bidirectional power flow (e.g., regenerative braking in EVs).
Q: What’s the biggest mistake beginners make?
A: Assuming the IGBT meaning in text covers all real-world quirks.
Conclusion
The IGBT meaning in text is a starting point—not the full story. Real-world use involves:
✔ Choosing between half-bridge and full-bridge IGBT modules
✔ Managing heat in IGBT 3-phase inverters
✔ Anticipating failures textbooks ignore
Now you’re equipped to move from theory to practice.
