Introduction

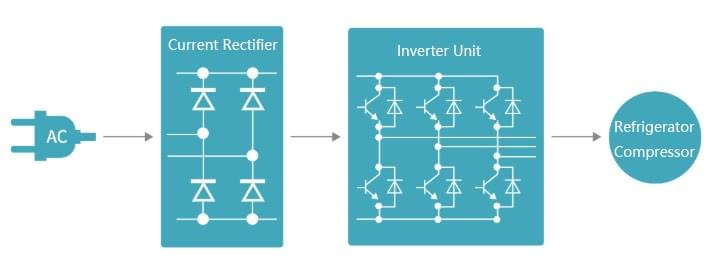

Inverter refrigerators rely on IPM (Intelligent Power Module) and IGBT devices to drive compressors, enabling wide-temperature energy savings and low-noise operation. However, the high-frequency switching of IGBTs generates sharp dv/dt and di/dt noise. In mass production, this frequently leads to critical issues such as current-sampling distortion, false protection triggering, EMI non-compliance, and catastrophic module failure due to overheating.
Proper PCB layout is the single most critical factor in determining the reliability of an inverter drive system. Leveraging the characteristics of SHYSEMI’s full lineup of refrigerator-grade power devices—including TOLL-8L MOSFETs, three-phase IPMs, and discrete IGBTs—this guide breaks down practical layout techniques across six key dimensions: functional zoning, power loop design, thermal management, high-voltage/low-voltage isolation, grounding, and current-sensing routing. Complete with standard layout principles, this guide serves as a practical reference for refrigerator electronic control board design, mass-production troubleshooting, and engineering training.

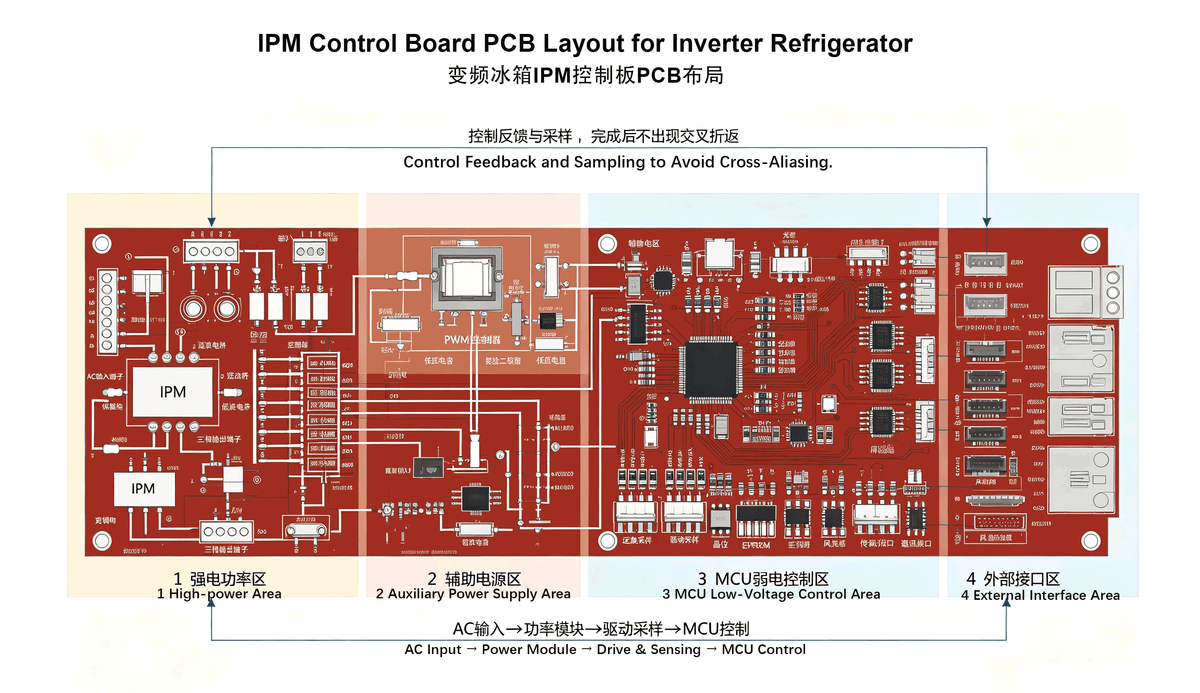

1. Functional Zoning and Layout Rules for Inverter Refrigerator PCBs
1.1 Four Distinct Functional Zones
To ensure optimal performance, the PCB layout must be strictly partitioned into four independent zones with physical separation. Mixing components across zones is strictly prohibited. The placement order must follow a unidirectional signal flow: AC Input → Power Module → Gate Drive & Sensing → MCU Control, eliminating any signal crossover or trace backtracking.
1.1.1 High-Voltage Power Zone (Primary Noise Source)
- Components: AC bridge rectifier, DC-bus electrolytic capacitors, SHYSEMI 3-phase IPM module, compressor three phase power output terminals, RC snubber circuits, and power inductors.
- Interference Profile: Characterized by high-frequency, high-current, and high-voltage switching noise. As the primary source of thermal energy and EMI on the board, it must be placed along the edge of the PCB with ample space dedicated to thermal dissipation.
1.1.2 Auxiliary Power Supply Zone
- Components: Line-frequency / flyback power supply ICs, transformers, filter capacitors, and optocoupler isolation circuits.
- Function: Positioned between the power and low-voltage zones to act as an isolation buffer band. Keep this area strictly away from sensitive MCU analog sensing traces.
1.1.3 Low-Voltage MCU Control Zone (Noise-Sensitive Zone)
- Components: Main MCU, temperature-sensing circuits, current-sensing operational amplifiers, crystal oscillators, key / display drivers, and communication circuits.
- Function: Extremely susceptible to noise. Must be placed as far away as possible from high-noise components like the IPM PCB area and DC-bus capacitors.
1.1.4 External Interface Zone
- Components: 220V AC input terminals, compressor connectors, refrigerator/freezer temperature sensor headers, and door control/communication headers. All connectors must be consolidated at the PCB perimeter.

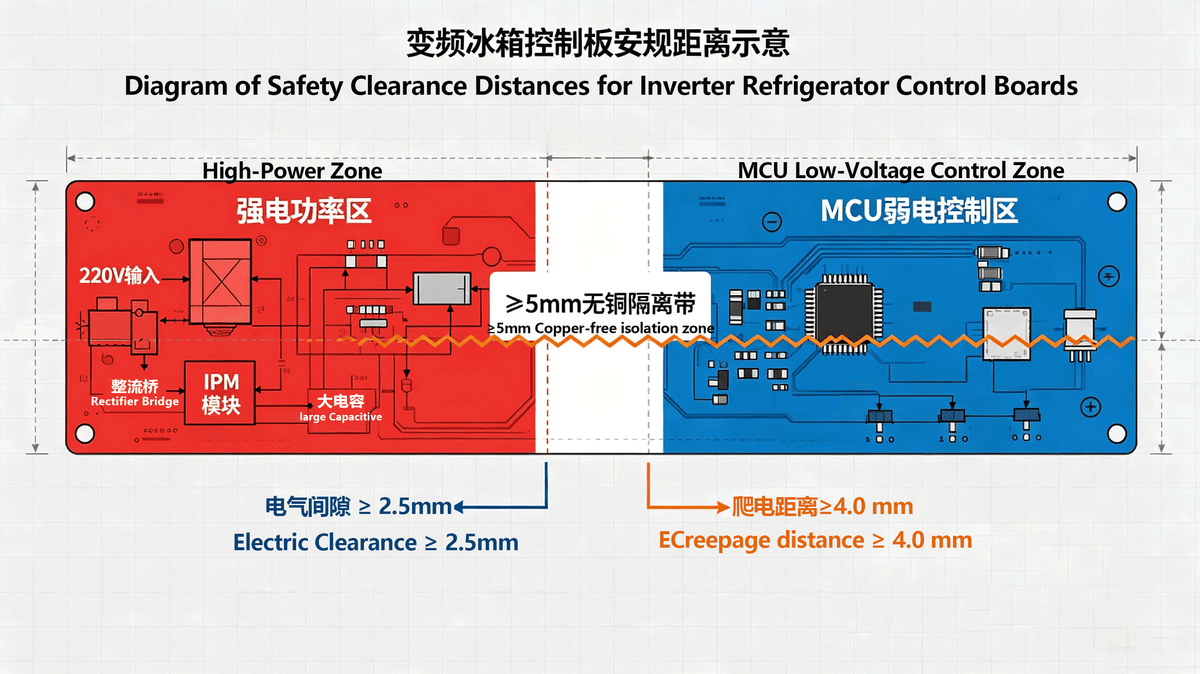

1.2 Strict Isolation and Safety Distance Rules (Safety Regulations & EMC)
For standard operating conditions, maintain a clearance ≥ 2.5mm and creepage distance ≥ 4.0mm between the 220V high-voltage section and the low-voltage control section.
For mass-produced models operating in high-humidity or high-interference environments, reinforced insulation is required: clearance ≥ 5.0mm and creepage distance ≥ 8.0mm to fully comply with global appliance safety standards for an inverter refrigerator.
- Isolation Slots: A 1mm-wide isolation slot can be routed along the isolation barrier to sever capacitive coupling paths.
- Trace Restrictions: Never route sensitive control/sensing signals or crystal oscillator traces through the power zone. High-voltage power traces must never cross directly under the MCU on bottom layers.
- Orientation: Align components within each zone in the same direction to prevent high-voltage and low-voltage components from overlapping on opposing board layers.
2. Power Loop Layout for IPM/IGBT Devices: Low-Inductance, Low-Loss Routing
Switching losses and radiated EMI from IGBTs/IPMs are directly proportional to the physical area of the power loop. SHYSEMI’s refrigerator IPM integrates six IGBT dies; therefore, the DC-bus, freewheel, and three phase power output loops must strictly adhere to four design rules: short, wide, direct, and minimized loop area.
2.1 DC-Bus Power Loop (Critical High-Frequency Path)
- Capacitor Placement: Place the main DC-bus electrolytic capacitor directly adjacent to the DC VCC and GND pins of the IPM PCB setup. Connect the capacitor’s positive and negative copper traces directly to the module pads, keeping trace length ≤ 3mm.
- High-Frequency Decoupling: Parallel a 0.1uF / 630V X7R ceramic capacitor across the electrolytic capacitor. Position the ceramic capacitor closer to the IPM pins than the electrolytic capacitor to filter out high-frequency voltage spikes and prevent device breakdown.
- Copper Pouring: Use trace widths ≥ 3mm for the DC bus. Mirror the copper pours symmetrically across both top and bottom layers, placing a dense matrix of thermal/power vias to lower line impedance, reduce board heating, and mitigate voltage ringing.
- Incorrect Implementation: Placing the bus capacitor far from the IPM or using convoluted trace routes doubles the loop area, increasing switching voltage spikes by over 30% and triggering unwanted overvoltage protection.
2.2 Compressor Three Phase Power Output Loop
- Trace Width and Symmetry: Traces from the IPM U/V/W output pins to the compressor terminal block must be short and wide, with a minimum width ≥ 2.5mm. Keep the three phase power traces parallel, equidistant, and equal in length to minimize current imbalance.
- Snubber Circuits: Mount output RC snubbers directly adjacent to the IPM output pins to absorb high-voltage reflection spikes from the motor cable, protecting the IGBT die from voltage breakdown.
- Orthogonal Routing: Three phase power traces must cross signal lines (such as temperature probes or current feedback) perpendicularly across layers. Long-distance parallel routing with signal traces is strictly forbidden.
2.3 Additional Layout Guidelines for Discrete IGBT Solutions
When designing a three phase bridge using discrete SHYSEMI TOLL-8L MOSFETs/IGBTs:
- Align the high-side and low-side IGBTs compactly, enclosing them with the DC-bus copper pour to minimize loop area.
- Place a high-frequency ceramic capacitor across the drain and source of each power switch to shrink individual half-bridge AC loops.
- Expose the solder mask over power device thermal pads for solder flooding, and place an array of thermal vias underneath leading to the bottom-layer copper pour.
3. Thermal Management Layout for Power Devices
In an inverter refrigerator operating continuously at low frequencies for extended periods, heat accumulation in the IPM significantly increases conduction losses and degrades device lifespan. Thermal management must be integrated directly into the PCB layout stage.
3.1 Power Device Placement Rules
- Edge Placement: Arrange the IPM PCB module, bridge rectifier, and power resistors along the board edge near the refrigerator's outer enclosure or ventilation path to facilitate heatsink mounting.
- Heat Dispersion: Space out heat-generating components. Avoid concentrating multiple heat sources in a small area to prevent localized hotspots.
- Thermal Isolation: Keep thermally sensitive components (such as temperature-sensing NTCs, crystal oscillators, and electrolytic capacitors) at a minimum distance of ≥ 8mm from the IPM to prevent parameter drift and capacity degradation.
3.2 Copper Pour and Via Array Thermal Standards
- Pad Windowing: Remove solder mask fully over the IPM thermal pad, and expand stencil aperture size to ensure maximum solder fill, minimizing thermal resistance.
- Thermal Via Arrays: Flood the area surrounding the module pads with large copper planes. Stitch the top and bottom copper layers tightly using 0.3mm vias spaced ≤ 1mm apart to form vertical thermal conduction channels.
- Continuous Heat Spreader: Maintain a solid, un-slotted ground plane on the bottom layer to act as an expansive heat dissipator.
- Resistor Heat Sinking: Expand copper pours around power resistors and snubber resistors to assist with heat dissipation and protect adjacent surface-mount components from thermal damage.
4. Isolation and Sensing Circuit Layout: Noise Mitigation Techniques
Over 70% of electronic control failures in an inverter refrigerator stem from current-sensing distortion or gate drive interference. Specialized layout rules must be applied to the gate drive signals, DC-bus current sensing, and motor phase current sensing lines connected to the IPM control pins.
4.1 Gate Drive Signal Traces (IPM Control Pins: U/V/W High/Low-Side Gate Drives)
- Keep traces from the MCU to the IPM drive inputs as short as possible, with total length ≤ 10mm. Shield drive traces with a ground guard trace along their entire length.
- Route gate drive traces perpendicular to high-voltage DC-bus and three phase power lines; parallel routing is strictly prohibited.
- Place gate resistors and filter capacitors right at the IPM signal pins to filter out coupled noise.
- Ensure a continuous reference ground plane directly beneath the gate drive traces, free of ground splits or isolation slots.
4.2 Current-Sensing Layout (High Noise Sensitivity Zone)
- Position bus shunt resistors and three-phase current shunts right at the power ground pins of the IPM PCB layout. Route differential sensing traces as symmetric, equal-length, tightly coupled pairs.
- Minimize the physical loop area of the differential sensing circuit, keeping it clear of high-power copper pours and power inductors.
- Place current-sensing op-amps within the low-voltage MCU zone. Shield the entire sensing line run with ground guard traces, and never route these signals through the power section.
- Connect the sensing ground to the power ground at a single point to prevent high-current ground noise from corrupting the reference signal.
4.3 Low-Voltage Temperature Sensor Routing
Route temperature probe traces (fridge, freezer, defrost) on the bottom layer directly above a solid ground plane. Maintain a distance ≥ 5mm from 220V AC traces, and flank the signal traces with ground shielding to prevent temperature reading fluctuations during compressor startup/shutdown cycles.

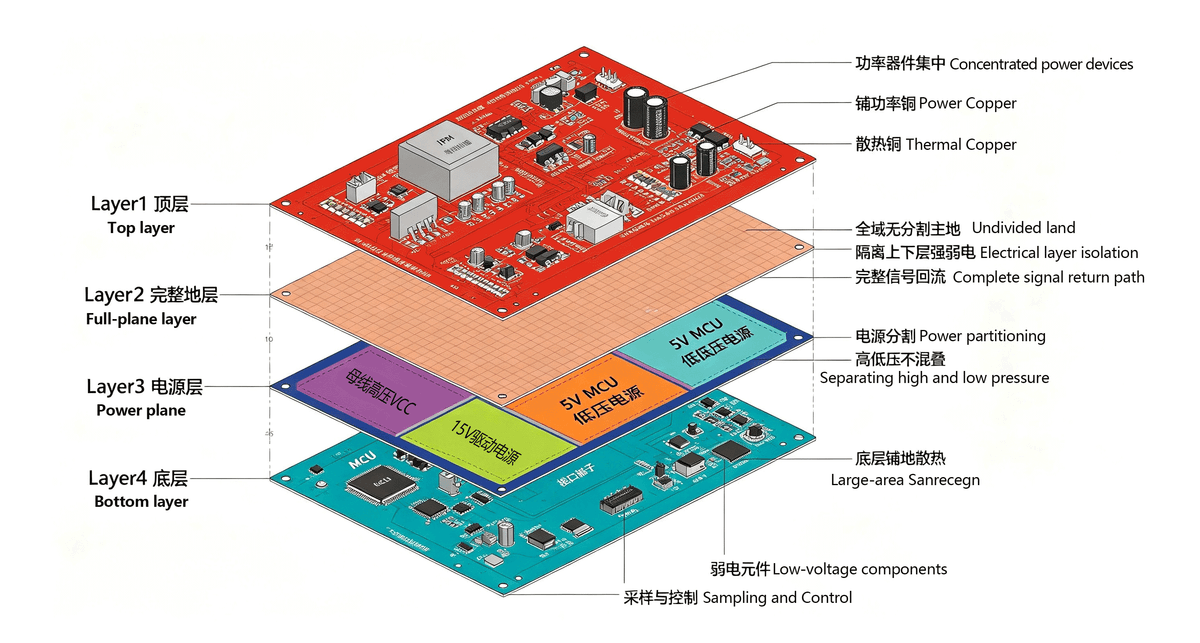

5. Layer Stackup and Grounding Strategy: Optimized 4-Layer PCB Design
A 4-layer PCB is recommended for an inverter refrigerator board, delivering an optimal balance of thermal dissipation, EMC compliance, and manufacturing cost. The recommended stackup is tailored for power modules:
- Three Grounds, Single-Point Connection: Maintain separate copper pours for Power Ground (PGND), Analog Sensing Ground (AGND), and Digital Ground (DGND). Tie them together at a single point near the negative terminal of the main DC-bus electrolytic capacitor to eliminate ground loops.
- IPM Power Ground Connection: Connect the IPM power ground pins directly to the PGND pour using wide copper traces with multiple vias to minimize ground inductance.
- Low-Noise Ground Vias: Place dense ground vias immediately next to the ground pins of the MCU, op-amps, and crystal oscillator, tying them directly into the Layer 2 ground plane.
- Optocoupler Isolation Barrier: Completely split the ground planes on both sides of isolation optocouplers, ensuring no copper traces traverse the isolation gap.
6. Quick Reference Checklist for IPM Power Layout Design
- Zone First: Keep high-voltage power on one edge, place the MCU in a low-noise corner, and maintain an isolation buffer band in between.
- Minimize Loops: Place the DC-bus capacitor right next to the IPM pins; keep power copper traces wide and short.
- Thermal Design: Place thermal via matrices under the IPM thermal pad, with solder mask openings over copper areas for heat dissipation.
- Protect Sensing Traces: Route current-sensing lines as differential pairs with ground shielding, keeping them isolated from three phase power and DC-bus traces.
- Ground Correctly: Keep PGND, AGND, and DGND separate, joining them at a single point over a continuous reference plane.
- Safety Compliance: Strict adherence to clearance and creepage minimums; add isolation slots across high-voltage barriers.
Frequently Asked Questions (FAQ)
Q: What are the main global safety standards for an inverter refrigerator?
1. China (CCC Certification - Mandatory)
- General Safety Standard: GB 4706.1-2024 (Safety of household and similar electrical appliances - Part 1: General requirements; equivalent to IEC 60335-1:2016).
- Refrigerator Specific Standard: GB 4706.13-2024 (Safety of household and similar electrical appliances - Particular requirements for refrigerating appliances, ice-cream appliances and ice makers).
2. International Base Standards (IEC System)
International appliance safety relies on IEC 60335-1 as the base standard, paired with IEC 60335-2-24:2020 as the specific standard for refrigerating appliances. Regional standards for any inverter refrigerator are adapted directly from this framework:
- European Union: EN 60335-1, EN 60335-2-24 (CE Low Voltage Directive / LVD compliance).
- United States: UL 60335-1, UL 60335-2-24 (UL Safety Certification).
- Japan: JIS C 60335 series (PSE Mark Certification).
