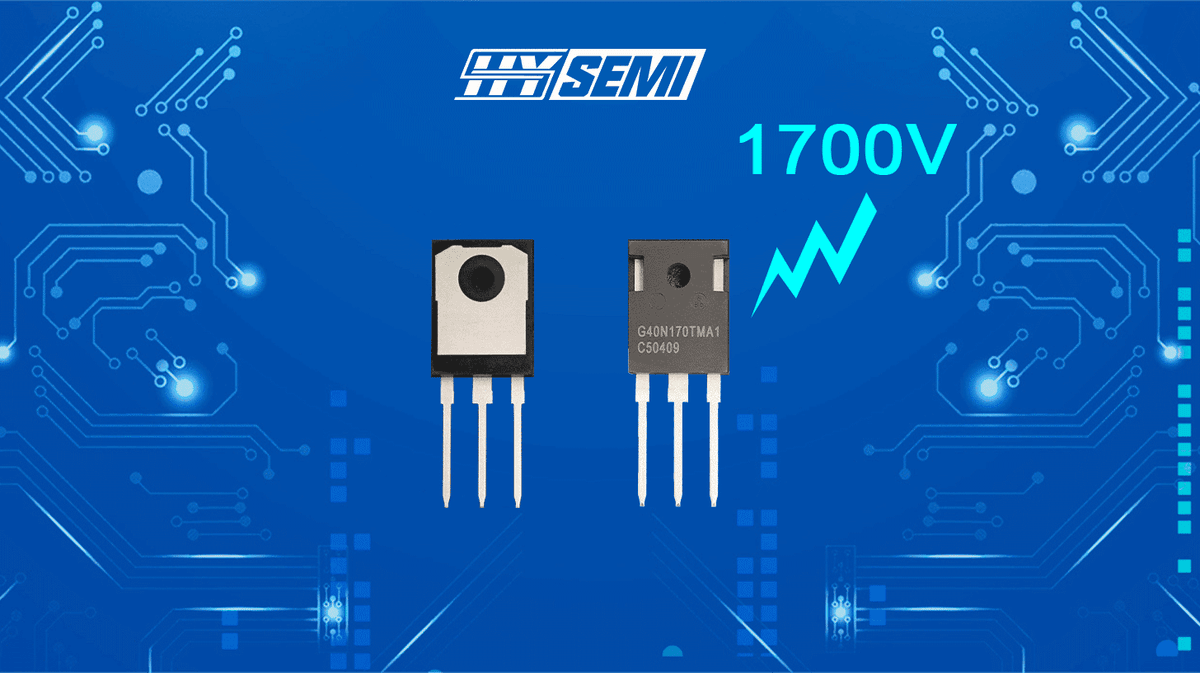

SYD40N170TMA1 – The Next-Gen 1700V IGBT for Industrial & New Energy Applications
In high-efficiency, stable, and compact power electronics, IGBT performance defines system limits. SHYSEMI's SYD40N170TMA1 delivers 1700V ultra-high voltage tolerance, 40A current handling, and breakthrough Trench-Stop™ technology, making it the ideal core for industrial inverters, EV charging, and high-end power systems.
✔ 1700V Ultra-High Voltage – Enhanced avalanche ruggedness for grid-level inverters & fast chargers
✔ Trench-Stop™ Technology – 1.7V VCE(sat) (typ. @40A), 75% lower conduction loss
✔ 10μs Short-Circuit Withstand – Industry-leading fault resilience
✔ High-Speed Switching – 35ns td(on) / 320ns td(off), 12mJ total switching loss
✔ Industrial Robustness – -40°C to +175°C operation, 0.25K/W thermal resistance
Applications: Powering Green Energy & Smart Industry
⚡ Industrial Drives & UPS – 98%+ efficiency, modular parallel expansion
⚡ EV Fast Chargers – Direct 800V compatibility, 50% faster charging
⚡ PTC Heating – Simplified multi-module control, uniform temperature
⚡ Solar & ESS Inverters – Superior grid disturbance immunity
Designed for Innovation
🔹 Integrated fast-recovery diode (67A IF @25°C)
🔹 Low gate charge (450nC Qg) for cost-effective driving
🔹 TO-247 package – Easy thermal integration & automated assembly
Choose SYD40N170TMA1 for:
✅ Ultra-High Reliability – 1700V isolation + 10μs SC withstand
✅ Maximized Efficiency – Lower losses & cooling costs
✅ Future-Ready – Compatible with SiC drive architectures
Proven Performance:
📊 40A continuous | 120A pulse | 175°C full-range | 0.25K/W thermal resistance
Upgrade your power system today – Let SYD40N170TMA1 be your ultimate solution!
Advantages of SHYSEMI Products:
SHYSEMI specializes in medium- and high-power semiconductor solutions, offering integrated advantages from IGBT chip design to device manufacturing.
- Self-Designed IGBT Chips – Utilizing 6th Gen Trench Field technology, we have developed 1200V (75A-200A) IGBT chips with matching FRD series, as well as 1700V 150A & 200A series, ranking among the industry’s best. Our 1700V series leads the domestic market.
- High-Performance IGBT Modules – Using in-house chips, our 62mm and Econo series modules outperform domestic competitors and even surpass Japanese counterparts in key performance tests.
- Cost-Effective IGBT Discrete Devices – Our 650V series delivers exceptional price-to-performance ratio.
- Reliable IPM Solutions – The 650V IPM series excels in industrial control and inverter applications with high reliability and superior quality.
- Innovative TOLL-8L MOSFETs for Energy Storage – Key benefits:
✔ Higher system efficiency
✔ Lower EMI noise
✔ 30%+ reduction in thermal loss
✔ 60% smaller footprint – Ideal for compact designs
SHYSEMI – Powering Innovation with Cutting-Edge Semiconductor Solutions.
