Why SiC Module Reliability Matters
Silicon carbide (SiC) power modules promise better efficiency, higher temperatures, and faster switching than traditional silicon. But how reliable are they really? Recent SiC module reliability tests reveal some surprising results. If you're using silicon carbide power modules, you need to know these findings. They could impact your design choices, warranty costs, and system performance.

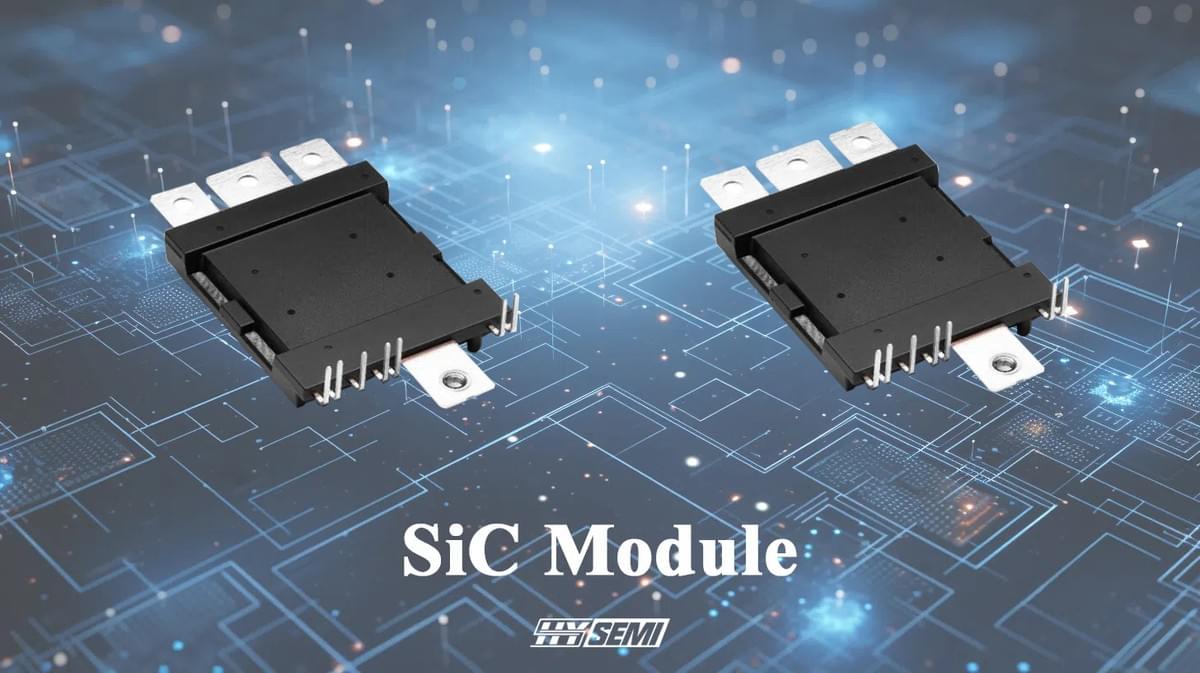

What Is a SiC Module?
Before diving into test results, let's clarify what is a SiC module. These are advanced power electronics that use silicon carbide instead of silicon. Benefits include:
- Higher voltage handling
- Lower energy losses
- Better thermal conductivity
They're used in EVs, solar inverters, and industrial power systems.
Key SiC Module Reliability Tests
Manufacturers and labs run strict tests on SiC power modules. Here are the most revealing ones:
1. High-Temperature Operating Life (HTOL) Test
What it checks: How long the module lasts under extreme heat.
Surprise finding: Some silicon carbide modules actually degrade slower than expected at 175°C+.
2. Power Cycling Test
What it checks: Performance after repeated on/off cycles.
Shocking result: Certain SiC power module designs fail earlier than specs claim due to bond wire fatigue.
3. Humidity and Corrosion Testing
What it checks: Resistance to moisture and chemicals.
Unexpected outcome: New coating technologies make modern SiC modules 3x more resistant than older versions.
Real-World Implications
These tests aren't just lab experiments. They affect your work:
1. For EV Manufacturers
- Battery systems using SiC modules may need less cooling than planned
- But gate driver circuits might need upgrades for long-term reliability
2. For Solar Installers
- Silicon carbide power modules in inverters could last 25+ years with proper thermal design
- However, cheaper models show early failures in dusty environments
3. For Industrial Equipment
- The SiC power module purpose in motor drives may shift from "high performance" to "ultra-reliable"
- Maintenance schedules might need adjustments based on new lifespan data
How to Use These Findings
Don't just trust the datasheet. When selecting SiC modules:
- Ask for actual test reports – Not just "typical" performance claims
- Check the failure modes – Do they match your operating conditions?
- Verify third-party testing – Some manufacturers exaggerate results
The Future of SiC Module Testing
New standards are emerging as silicon carbide modules evolve. Expect:
- Stricter high-voltage endurance requirements
- Vibration testing for automotive applications
- Standardized metrics for "end of life" predictions
Conclusion
SiC module reliability is better than many feared—but with caveats. The latest tests show:
✔ Some designs exceed expectations
✔ Others fail in unexpected ways
✔ Proper selection and testing prevent costly mistakes
Whether you're using SiC power modules for efficiency, size, or performance, these test results should guide your decisions.
