IGBTs (Insulated-Gate Bipolar Transistors)are widely used in inverters, electric vehicles, photovoltaic inverters, and various other high-efficiency energy conversion devices. Their superior performance makes them an indispensable component in power electronics. However, when selecting IGBT products, we often face a choice: IGBT Discretes or modules. While both are based on the same technology, what are the differences between them? Understanding these differences is crucial for selecting the right IGBT product.

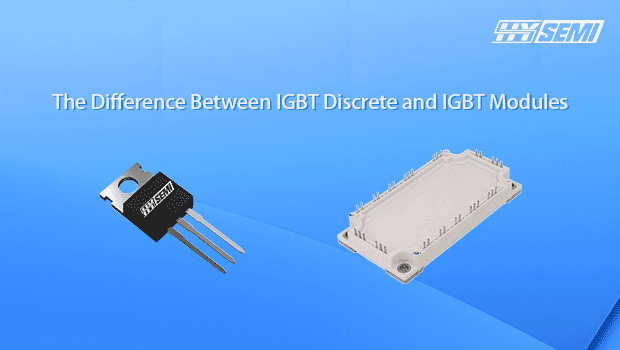

1.Basic Concepts of IGBT Discretes and IGBT Modules
An IGBT Discrete is with three pins: collector, emitter, and gate. An IGBT Discrete has a relatively simple structure and is suitable for lower-power applications.
An IGBT module is a high-power component that integrates multiple IGBTs, along with their drive and protection circuits, into a single package. Compared to IGBT Discretes, IGBT modules offer designers a more convenient installation and use experience while also demonstrating greater reliability and efficiency in high-power applications.
2.Core Differences Between IGBT Discretes and IGBT Modules
Power capacity: One of the most significant differences between IGBT Discretes and modules. IGBT Discretes are typically used in low- to medium-power applications, while IGBT modules are designed to meet high-power requirements. Modules offer significantly higher power capacity than IGBT Discretes because they can integrate multiple IGBTs operating in parallel, achieving higher current carrying capacity.
System Integration: IGBT modules typically integrate more functions, such as driver circuits, protection circuits, and temperature sensors, greatly facilitating system design. IGBT Discretes, on the other hand, typically require external circuitry to implement these functions, requiring additional design time and space.
Heat Dissipation: Because IGBT modules can integrate multiple IGBTs in a more compact footprint, they offer more efficient heat dissipation. Modules are typically equipped with dedicated heat dissipation solutions, such as heat sinks or fans, to ensure stability and reliability during high-power operation.
3.How to choose between an IGBT Discretes and an IGBT modules?
Cost-effectiveness: In the long run, although the initial cost of IGBT modules may be higher than that of IGBT Discretes, they offer greater cost-effectiveness in most high-power applications due to their high integration, superior performance, and reduced peripheral circuitry requirements.
Application flexibility: Due to their relatively simple structure, IGBT Discretes offer greater application flexibility. Designers can flexibly select the type and quantity of IGBTs based on specific application requirements to design the most suitable circuit solution. IGBT modules, on the other hand, are more suitable for applications with extremely high requirements for power, reliability, and integration.
4.Summary
Thus, the choice between IGBT Discretes and IGBT modules depends primarily on the specific application requirements. For small, low-power applications, IGBT Discretes may be more economical and flexible. For applications requiring high power and high reliability, IGBT modules are undoubtedly the better choice. Applications that withstand extreme weather and harsh environments, in particular, require high reliability and a trusted brand.
SHYSEMI prioritizes quality and employs a rigorous quality control process from raw material procurement to manufacturing to ensure product consistency and reliability to meet the high demands of our customers. The rapid development of IGBT technology has revolutionized the field of power electronics. Both IGBT Discretes and IGBT modules play an irreplaceable role in their respective applications. Understanding their differences can help designers make more informed choices and design more efficient and reliable power electronics systems.
