• IGBT Modules

    Mid Power E Series

    The medium-power E-series modules of SHYSEMI are divided into three types: Econo2, EconoDUAL, and Econo3. Its utilize a low-thermal-resistance alumina insulating substrate and a temperature-protection thermistor. The signal terminals are silver-plated for easier soldering, while the substrate is nickel-plated to prevent oxidation and improve long-term storage reliability.

    As one of SHYSEMI's flagship products, the Econo series represents leading domestic quality, delivering performance comparable to that of top German and Japanese products.

  • Package List

    在这里展示你的项目，功能或客户

    Section image

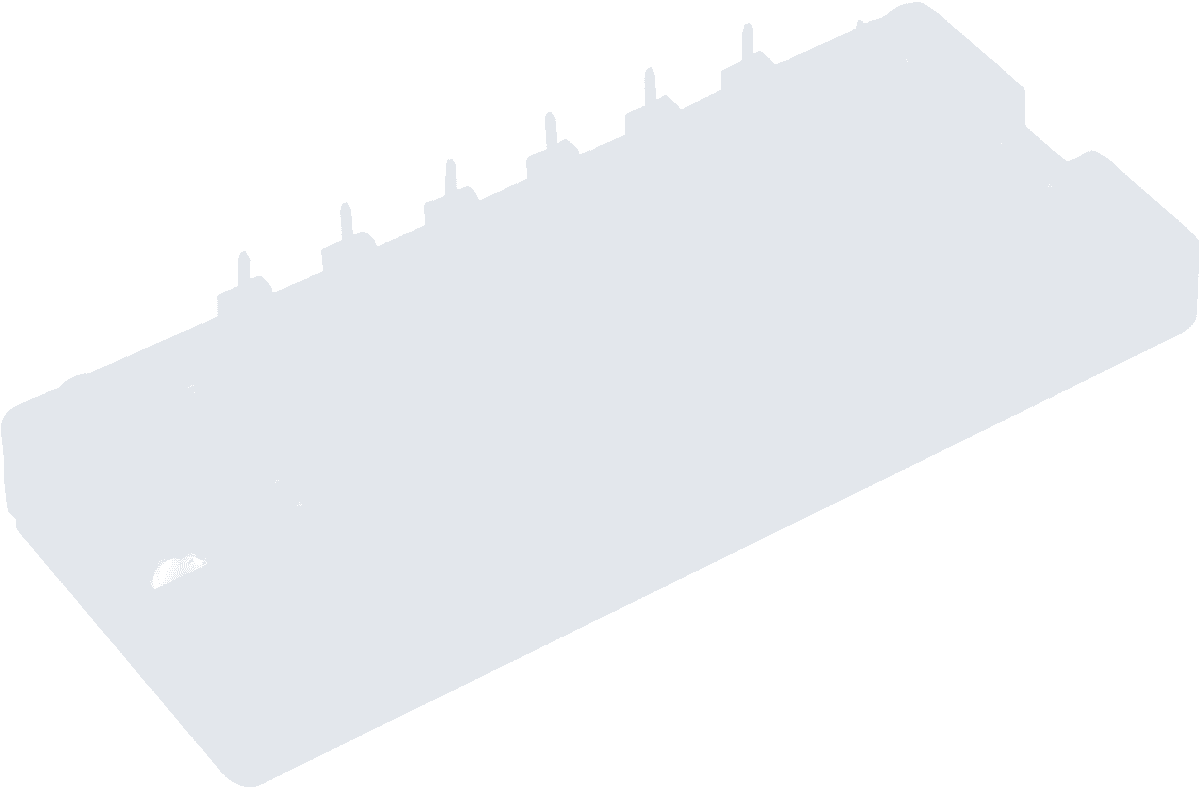

    Econo2

    The core value of the Econo series lies in adhering to the design philosophy of "sufficiency is enough", providing durable and cost-effective solutions for large-scale industrial applications.

    Section image

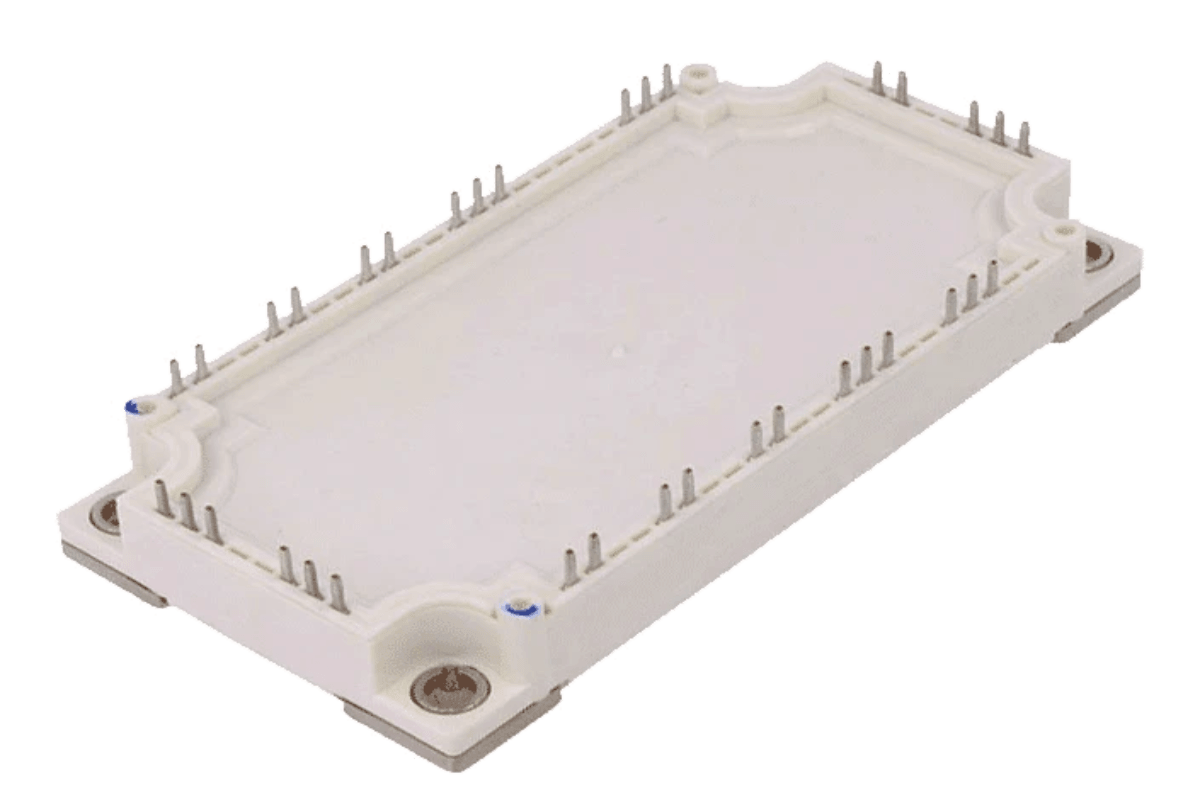

    EconoDUAL

    SHYSEMI's EconoDUAL package not only offers standard half-bridge modules, but also special topologies such as seven-unit/buck modules.

    Section image

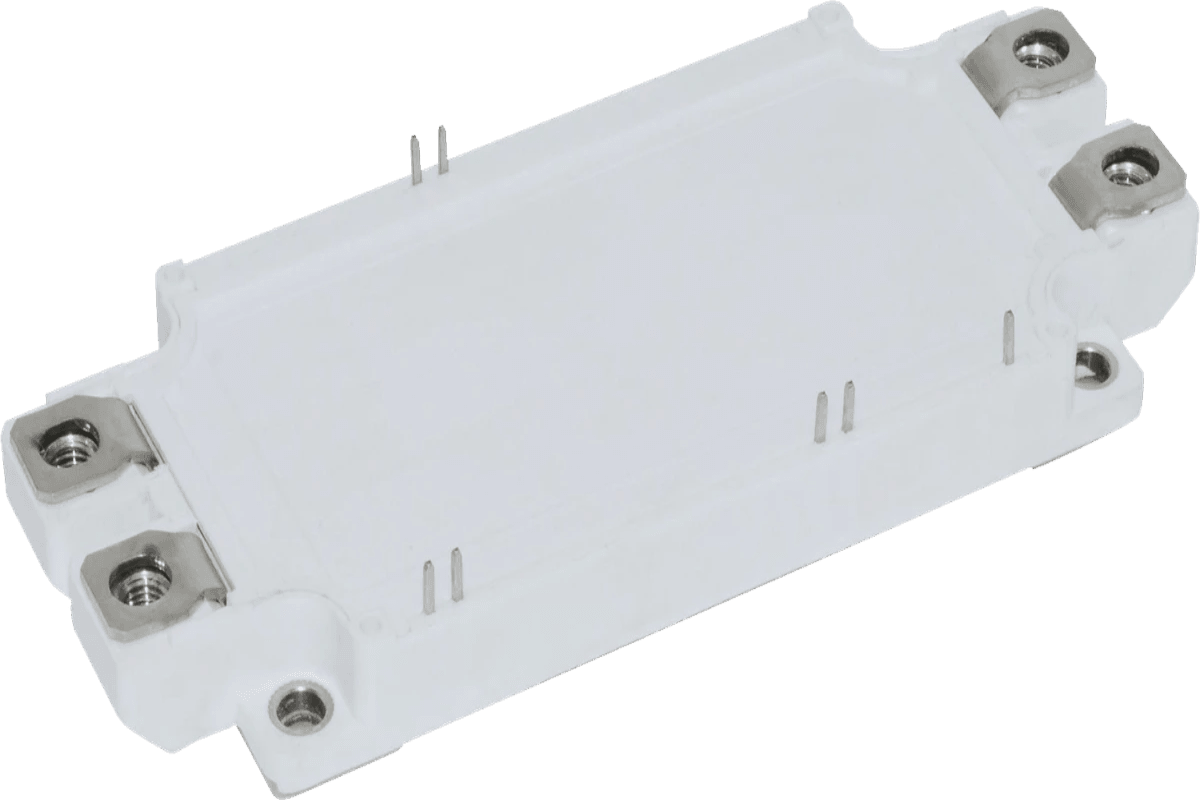

    Econo3

    By adopting moderate chip technology, the on-state loss and off-state loss are balanced. The system design is mature and does not require additional monitoring or protection functions.

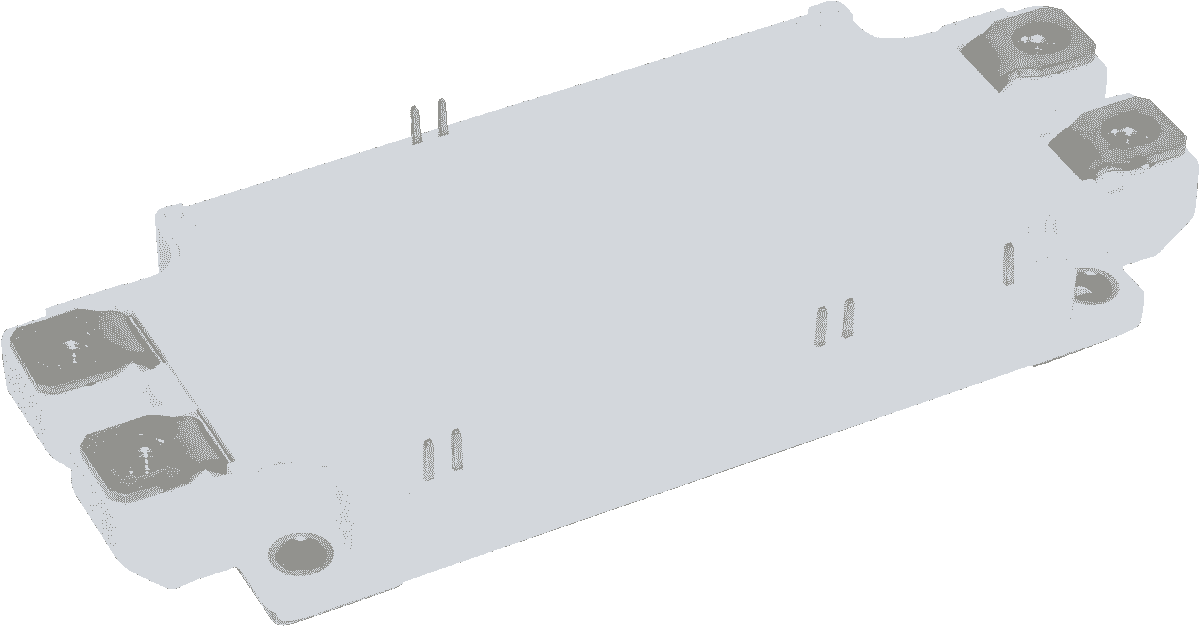

  • Econo2 Applications:

    Designed for cost-sensitive yet performance-driven applications, the Econo series IGBT modules (from brands such as Infineon, Fuji, and Mitsubishi) are engineered to offer the best possible value. Their key selling point is achieving exceptional cost-effectiveness while maintaining dependable operation. To ensure safe and reliable performance, it is crucial to conduct a thorough assessment of the actual application conditions, including voltage/current stresses, switching frequency, and heat dissipation capabilities.

    • Industrial Inverters
    • Servo Applications

    SYMTS25PI120T5H

    • Package：Econo2
    • Voltage(V): 1200
    • Current(A): 25
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.7

    SYMTS40PI120T5H

    • Package：Econo2
    • Voltage(V): 1200
    • Current(A): 40
    • VCE(SAT)@typ.Tj=25°C: 1.9
    • VGEth@typ.Tj=25°C: 5.8

    SYMT50PI120T6H-M

    • Package：Econo2
    • Voltage(V): 1200
    • Current(A): 50
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.6

  • Features:

    • Field Stop Trench Gate IGBT
    • Short Circuit Rated >10μs
    • Low Saturation Voltage
    • Low Switching Loss
    • 100% RBSOA Tested (2×Ic)
    • Low Stray Inductance
    • Lead Free, Compliant with RoHS Requirement
    Section image

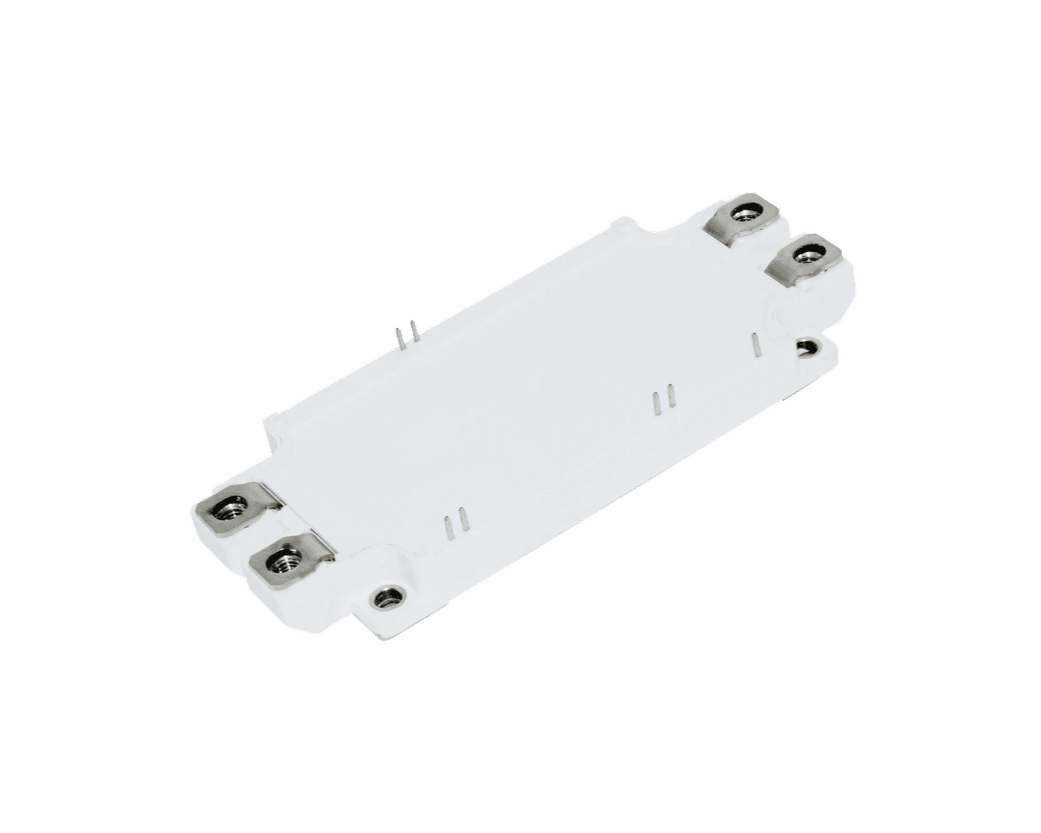

  • EconoDUAL Applications:

    The EconoDUAL package, developed by SHYSEMI, has proven its long-term market viability through effective platformization and standardization. It achieves unparalleled advantages in design simplicity, supply chain stability, and overall cost-effectiveness. Consequently, for the vast majority of conventional industrial drive applications, it remains one of the most balanced solutions in terms of performance, reliability, and cost.

    • Hybrid Electrical Vehicles(H)EV
    • Automotive Applications
    • Commercial Agriculture Vehicles
    • Motor Drives

  • SYMT300HF120T9H-M

    • Package：EconoDUAL
    • Voltage(V): 1200
    • Current(A): 300
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.6

    SYMT450HF120T9H-M

    • Package：EconoDUAL
    • Voltage(V): 1200
    • Current(A): 450
    • VCE(SAT)@typ.Tj=25°C: 1.75
    • VGEth@typ.Tj=25°C: 5.5

    SYMT600HF120T9H-M

    • Package：EconoDUAL
    • Voltage(V): 1200
    • Current(A): 600
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.5

  • Features:

    • Field Stop Trench Gate IGBT
    • Short Circuit Rated >10μs
    • Low Saturation Voltage
    • Low Switching Loss
    • 100% RBSOA Tested (2×Ic)
    • Low Stray Inductance
    • Lead Free, Compliant with RoHS Requirement
    Section image

  • Econo3 Applications:

    Econo is often used as an alternative to the earlier complex IGBT solutions or thyristor solutions, simplifying the internal structure (such as single diode configuration, standard packaging). Although it is an economical option, it still undergoes strict industrial-grade reliability tests (such as temperature cycling, power cycling), and mostly adopts third-generation or fourth-generation IGBT chip technology to balance power loss and cost, with controllable failure rate.

    • Industrial Inverters
    • Servo Applications

  • SYMT50PI120T6H-T4M

    • Package：Econo3
    • Voltage(V): 1200
    • Current(A): 50
    • VCE(SAT)@typ.Tj=25°C: 1.9
    • VGEth@typ.Tj=25°C: 5.6

    SYMT75PI120T6H-M

    • Package：Econo3
    • Voltage(V): 1200
    • Current(A): 75
    • VCE(SAT)@typ.Tj=25°C: 1.8
    • VGEth@typ.Tj=25°C: 5.6

    SYMT100PI120T6H-M

    • Package：Econo3
    • Voltage(V): 1200
    • Current(A): 100
    • VCE(SAT)@typ.Tj=25°C: 1.9
    • VGEth@typ.Tj=25°C: 5.5

    SYMT150PI120T6H-T4M

    • Package：Econo3
    • Voltage(V): 1200
    • Current(A): 150
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.9

    SYMT200FF120T6H-M

    • Package：Econo3
    • Voltage(V): 1200
    • Current(A): 200
    • VCE(SAT)@typ.Tj=25°C: 1.7
    • VGEth@typ.Tj=25°C: 5.6

  • Econo3 Features:

    • Short Circuit Rated >10μs
    • Non Punch Through (NPT) Technology
    • Low Saturation Voltage
    • Low Switching Loss
    • 100% RBSOA Tested (2×Ic)
    • Low Stray Inductance
    • Lead Free, Compliant with RoHS Requirement
    Section image
