MOSFET Basics for Power Systems
Power electronics rely heavily on MOSFETs. But what are the different types of MOSFET used in these applications? This guide breaks down the options and their best uses. MOSFETs control power flow in circuits. Unlike bipolar transistor vs MOSFET, MOSFETs are voltage-controlled, making them more efficient for switching.
Primary MOSFET Types for Power
1. Enhancement MOSFET
- Requires gate voltage to turn on
- Most common in power supplies
- Low standby power consumption
2. Depletion MOSFET
- Conducts when gate voltage is zero
- Used in amplifiers and analog circuits
- Rare in modern power designs
The depletion MOSFET and enhancement MOSFET differ mainly in their default states.
Power MOSFET Categories
1. Trench MOSFET
- Compact design
- Low resistance
Used in DC-DC converters
2. Superjunction MOSFET
- Handles high voltages (600V+)
- Common in inverters
- Better efficiency than planar MOSFETs
3. Lateral MOSFET
- Fast switching
- Used in RF and high-frequency apps
- Limited power handling
MOSFET vs. Alternatives

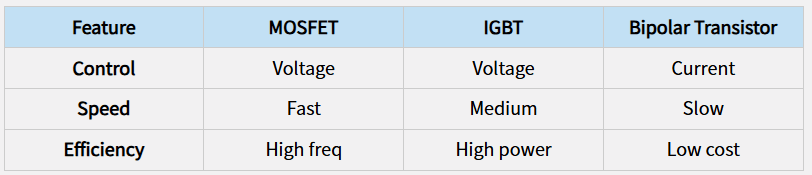

The IGBT vs MOSFET debate depends on voltage and frequency needs.
Choosing Between MOSFET or Transistor
When to Use MOSFETs
- High-frequency switching
- Low-power control circuits
- Efficient power conversion
When to Use Bipolar Transistors
- Analog amplification
- Simple switching tasks
- Cost-sensitive designs
Key Power Applications
- Trench MOSFETs dominate
- Enable compact, efficient designs
2. Motor Drives
- Superjunction MOSFETs handle high currents
- Better than bipolar transistor vs MOSFET for PWM control
- High-voltage MOSFETs or IGBTs
- Depends on system size
Future Trends
1. Wide-bandgap MOSFETs (SiC/GaN) for higher efficiency
2. Smarter gate drivers for faster switching
3.Integrated modules reducing system size
FAQ
Q: What are the different types of MOSFET used in EVs?
A: Mostly superjunction and SiC MOSFETs for motor controllers.
Q: MOSFET or transistor for audio amps?
A: Bipolar transistors for analog, MOSFETs for digital amps.
Q: How does IGBT vs MOSFET compare in solar inverters?
A: IGBTs for high power, MOSFETs for smaller systems.
Conclusion
Understanding what are the different types of MOSFET helps engineers select the right one. Key takeaways:
✔ Enhancement MOSFETs dominate power apps
✔ Superjunction types handle high voltages
✔ MOSFETs outperform bipolars in switching
Choose based on voltage, frequency, and efficiency needs.
