Have you ever wondered what is IGBT? IGBT stands for Insulated Gate Bipolar Transistor. It’s a key component in modern electronics, combining the fast switching of MOSFETs with the high-power handling of bipolar transistors. But what makes IGBTs truly efficient? The answer lies in their IGBT packaging - a critical factor often overlooked.
What is IGBT? A Quick Introduction
In simple terms, what does IGBT stand for? Think of it as a 'smart switch' for high-power systems like electric cars, solar inverters, or industrial motors. Without proper IGBT package types, even the best semiconductor designs can fail. Let’s explore how packaging techniques make these devices faster, cooler, and more reliable.
Breaking Down IGBT Packaging: Why It Matters
IGBT packaging isn’t just about wrapping a chip in plastic. It’s a science. The package protects the semiconductor from heat, moisture, and physical stress while ensuring electrical connections work smoothly. Different IGBT package types—like modules, discrete packages, or press-fit designs—serve unique purposes.
For example, a IGBT module package might house multiple IGBTs and diodes in one unit. This cuts energy loss and simplifies circuit design. By optimizing materials like silicon gel or copper substrates, modern packaging reduces heat buildup. Cooler devices last longer and perform better—key for electric vehicles and renewable energy systems.
How Packaging Techniques Boost Efficiency
So, how do IGBT packaging techniques improve efficiency? Let’s break it down:
- Heat Dissipation: IGBTs generate heat during operation. Advanced packages use materials like aluminum nitride or direct-bonded copper (DBC) to pull heat away faster. This prevents overheating and keeps efficiency high.
- Electrical Performance: Better packaging minimizes resistance in power pathways. For example, solderless designs reduce connection failures. This means less energy wasted as heat and more delivered to your devices.
- Compact Design: Smaller IGBT package types, like wafer-level packaging, save space. This lets engineers build lighter, faster systems—think drones or portable medical equipment.
- Reliability: High-quality seals and coatings guard against dust and humidity. Reliable IGBTs mean fewer breakdowns in critical systems like wind turbines or trains.
Popular IGBT Package Types and Their Uses

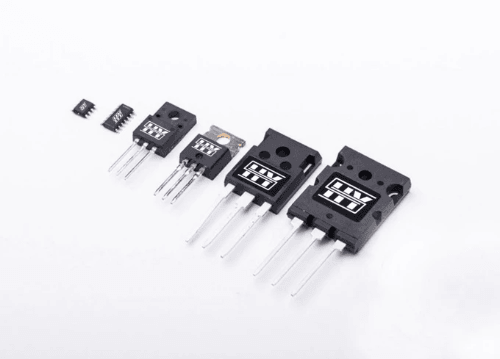

Not all IGBTs are packed the same way. Here are common IGBT package types and where they shine:
- Module Packages: Used in EVs and solar inverters. They combine multiple IGBTs, diodes, and sensors for high-power tasks.

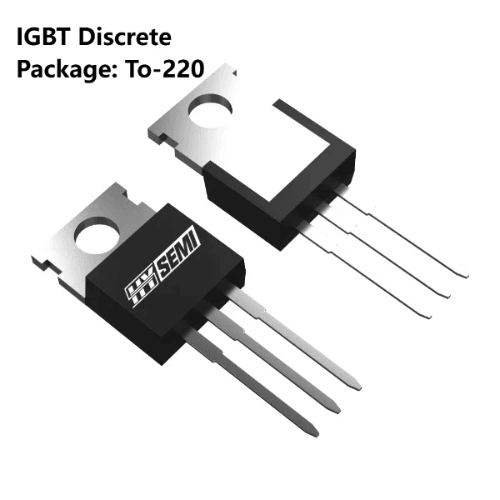

- Discrete Packages: Ideal for small appliances or power supplies. These single-chip units are cost-effective and easy to replace.
- Press-Fit Packages: No soldering is needed! These save time in factories and work well in automotive systems.
- Smart Modules: Packed with sensors for real-time temperature monitoring. Perfect for smart grids or industrial robots.
Choosing the right package ensures the IGBT works efficiently in its specific role.
The Future of IGBT Packaging
As industries demand greener tech, IGBT packaging keeps evolving. Innovations like silicon carbide (SiC) substrates or 3D-printed cooling structures push efficiency further. For example, Tesla’s EVs use advanced IGBT modules to extend battery life and reduce charging time.
Researchers also focus on eco-friendly materials. Biodegradable coatings or recyclable metals could make future IGBTs sustainable without sacrificing performance.
Conclusion
To answer 'What is IGBT?', look beyond the semiconductor itself. The IGBT package types and packaging techniques decide how well the device handles power, heat, and real-world stress. From EVs to solar farms, smarter packaging means faster, cleaner energy for everyone. By understanding what does IGBT stand for and how its packaging works, engineers can design systems that are efficient, durable, and ready for tomorrow’s challenges.
