An IGBT module is a power semiconductor device that combines multiple IGBTs (Insulated Gate Bipolar Transistors) into a single unit. These modules act as high-speed switches, managing large currents and voltages in systems like electric vehicles (EVs), solar inverters, and industrial drives. Unlike standalone IGBTs, modules integrate cooling, control circuits, and protection features for better performance.
But why are IGBT module innovations so critical today? As industries demand faster, smaller, and greener solutions, advanced designs are pushing efficiency to new heights. Let’s dive into how these upgrades are changing power electronics.
Key Innovations in Modern IGBT Modules
Recent breakthroughs in IGBT module technology focus on three areas: efficiency, size, and durability.
- Silicon Carbide (SiC) Integration: Traditional IGBT modules use silicon chips. Now, silicon carbide (SiC) materials reduce energy loss by up to 70%. This means cooler operation and longer lifespans for EVs and wind turbines.
- Compact Packaging: New IGBT package types, like wafer-level modules, shrink devices without sacrificing power. Smaller modules fit into drones, medical tools, and smart home systems.
- Advanced Cooling: Liquid-cooled bases and 3D-printed heat sinks prevent overheating. For example, Tesla’s latest EV inverters use these to handle extreme loads.
How to Test IGBT Modules: Ensuring Reliability
IGBT module testing is vital to avoid failures in harsh conditions. Here’s a simplified look at how to test IGBT module performance:
Thermal Cycling Tests: Modules are heated and cooled repeatedly to mimic real-world stress. This checks if solder joints or materials crack over time.
Electrical Stress Tests: High voltages and currents are applied to spot weak points. Engineers use tools like curve tracers to measure switching speeds and losses.
Environmental Tests: Modules are exposed to humidity, dust, and vibrations. For example, half bridge IGBT modules in trains must survive constant shaking.
Proper testing ensures modules work reliably in solar farms, factories, or EVs.

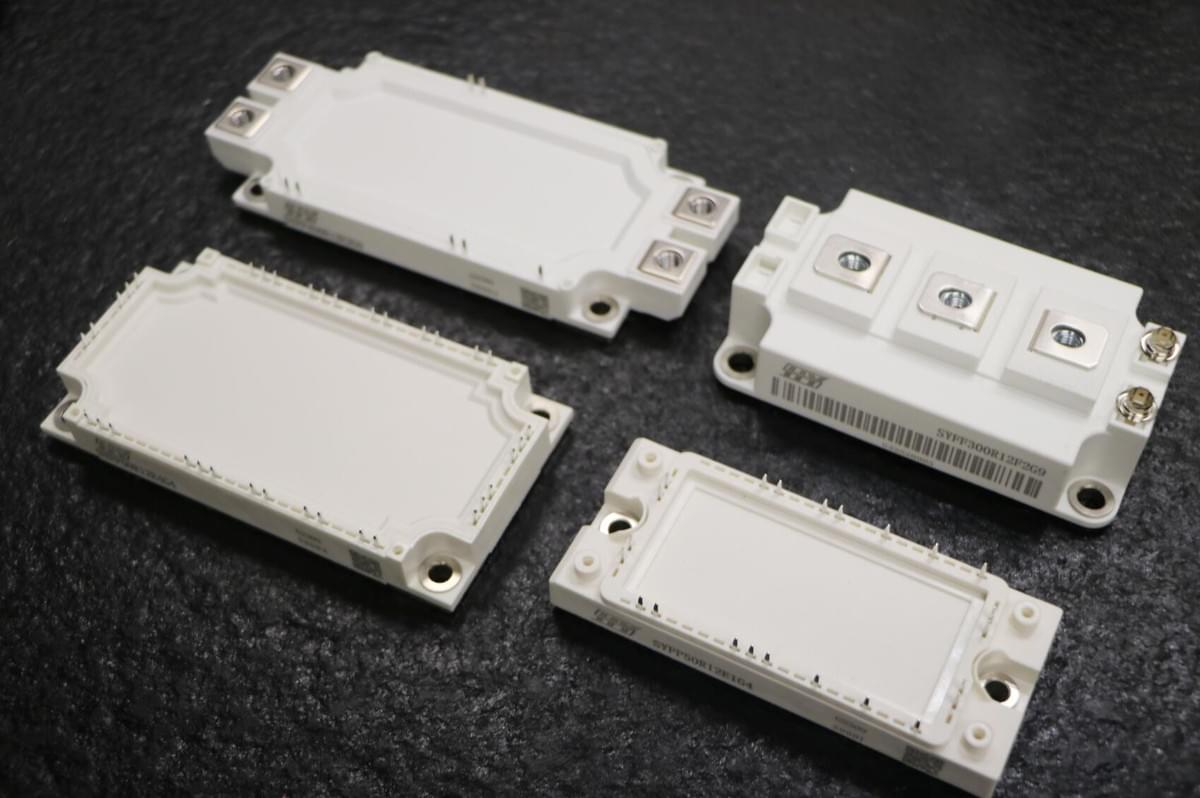

IGBT Package Types: From Half Bridge to Full Bridge
Not all modules are built the same.IGBT package types vary based on circuit needs. Two common designs are:

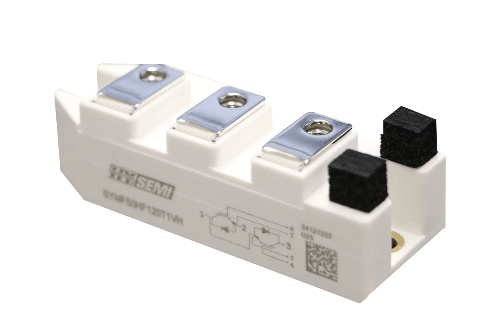

Half Bridge IGBT Module: Contains two IGBTs and diodes, ideal for motor drives and UPS systems. They’re cost-effective but handle moderate power.
Full Bridge IGBT Module: Uses four IGBTs for higher power output. These suit solar inverters and EV chargers where energy flow needs precise control.
Case Study: IGBT Modules in Renewable Energy
Wind turbines and solar farms rely on rugged IGBT modules to convert raw energy into usable electricity. For instance:
Solar Inverters: Full bridge IGBT modules manage DC-to-AC conversion. Advanced designs now cut energy loss by 15%, boosting panel efficiency.
Wind Turbines: SiC-based modules handle fluctuating loads from wind speeds. They’re tested using IGBT module testing methods like thermal imaging to prevent offshore failures.
The Future of IGBT Module Technology
What’s next for IGBT modules? Here are three trends to watch:
AI-Driven Testing: Machine learning predicts module failures before they happen. This reduces downtime in factories and power plants.
Eco-Friendly Materials: Recyclable substrates and lead-free solders make modules greener without compromising power.
Integration with IoT: Smart IGBT modules with embedded sensors send real-time data to grids. This helps balance energy demand in cities.
Why Innovations in IGBT Modules Matter
From EVs to smart grids, IGBT module advancements are reshaping how we use energy. Better cooling, smarter IGBT package types, and rigorous how to test IGBT module methods ensure devices last longer and waste less power.
Whether it’s a half bridge IGBT module in a factory robot or a full bridge design in a solar farm, these innovations make systems faster, smaller, and greener. As technology evolves, IGBT modules will remain at the heart of the power revolution.
