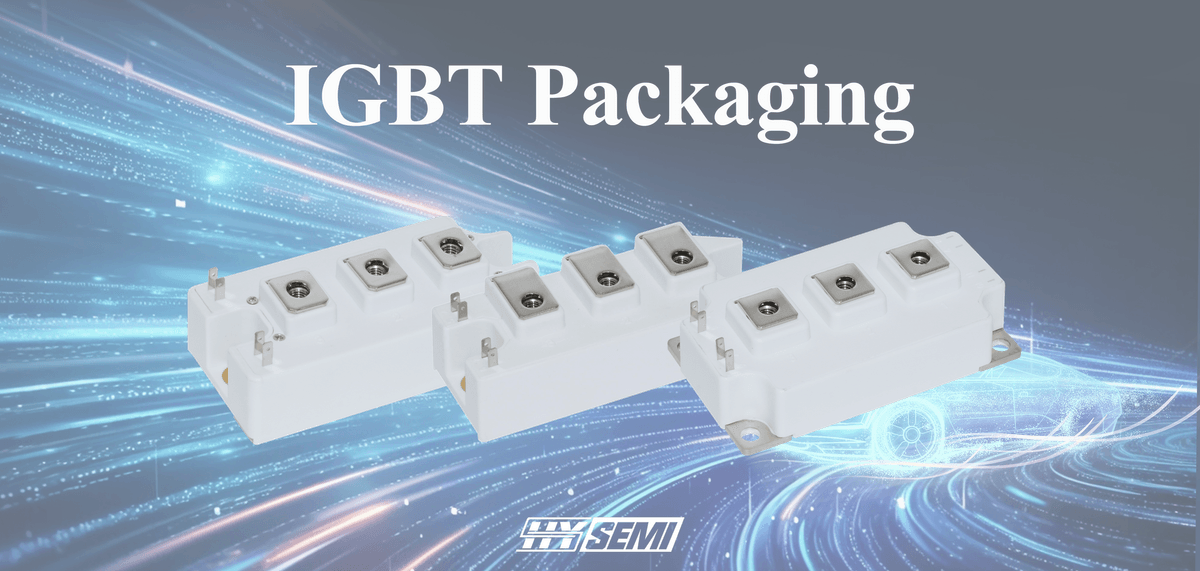

Power electronics have come a long way, and IGBT packaging has been at the heart of this revolution. From early wire-bonded designs to today’s advanced silicon carbide (SiC) modules, packaging innovations have made IGBTs smaller, stronger, and more efficient.
But first—what is IGBT? An Insulated Gate Bipolar Transistor (that’s what IGBT stands for) is a key component in high-power applications like EVs and solar inverters. Its performance depends heavily on IGBT packaging, which has seen major breakthroughs in recent years.
In this article, we’ll explore:
The evolution of IGBT package types
Why wire bonds are being replaced
How silicon carbide is changing the game
What Is IGBT Packaging?
IGBT packaging refers to how the semiconductor is enclosed and connected. It protects the chip, manages heat, and ensures electrical performance.
Key parts of IGBT packaging:
- Chip (Die) – The actual IGBT semiconductor
- Substrate – Connects the chip to the circuit
- Encapsulation – Shields against moisture and dust
- Cooling System – Prevents overheating
Different IGBT package types serve different needs—some prioritize power handling, others focus on compact size.
The Era of Wire-Bonded IGBT Packaging
For decades, wire bonding was the standard. Thin gold or aluminum wires connected the IGBT chip to the package leads.
Pros:
✅ Low cost
✅ Simple manufacturing
Cons:
❌ Weak under thermal stress (wires can break)
❌ Limits power density
❌ Higher electrical resistance
Wire bonds worked for early applications, but modern power systems needed something better.
Modern IGBT Packaging Breakthroughs
1. Press-Pack Modules
Instead of wires, press-pack IGBTs use direct metal contacts. Benefits:
Handles higher currents
Better heat dissipation
Longer lifespan
Used in:
High-voltage power transmission
2. Silver Sintering
Replaces solder with silver paste for stronger, heat-resistant bonds.
5x better thermal conductivity
Reduces failure rates
3. Silicon Carbide (SiC) IGBTs
SiC is the biggest leap in IGBT packaging. Advantages:
Higher temperature tolerance
Faster switching speeds
Lower energy losses
SiC IGBTs are ideal for:

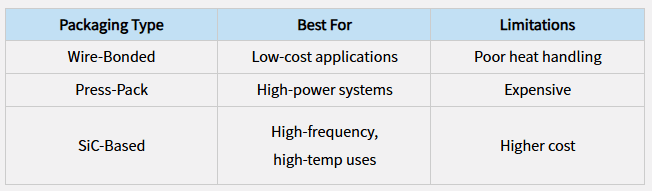

Comparing IGBT Package Types
Future of IGBT Packaging
3D Packaging – Stacks chips vertically for compact designs.
Liquid Cooling – For ultra-high-power applications.
Self-Healing Materials – Repairs minor cracks automatically.
FAQ: Quick IGBT Basics
1. What does IGBT stand for?
Insulated Gate Bipolar Transistor—a hybrid of MOSFET and BJT transistors.
2. What is IGBT’s main advantage?
Efficient high-power switching with low losses.
3. Which IGBT package type is best for EVs?
Silicon carbide (SiC) modules—they handle heat and power best.
Conclusion
IGBT packaging has evolved dramatically—from fragile wire bonds to rugged SiC modules. Each breakthrough improves efficiency, power density, and reliability.
Now you know:
✔ What IGBT stands for and why packaging matters
✔ The pros and cons of different IGBT package types
✔ How silicon carbide is shaping the future
The next time you see an EV or solar inverter, remember—the real magic is in the packaging.
