If you work with electronics or power systems, you’ve likely heard the term IGBT. But what exactly is the IGBT meaning, and why is it so important? An IGBT (Insulated Gate Bipolar Transistor) is a key component in modern power electronics. It combines the best features of MOSFETs and bipolar transistors, making it ideal for high-efficiency switching.
In this article, we’ll uncover the IGBT meaning, explore its applications, and highlight its key benefits.

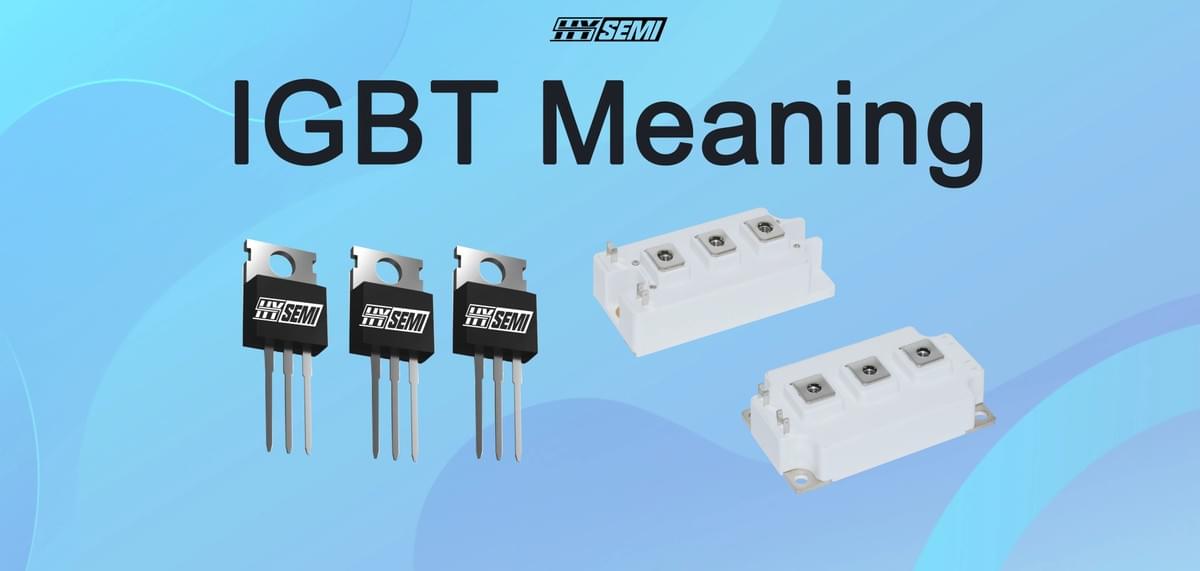

What Is the IGBT Meaning?
To define IGBT, it stands for Insulated Gate Bipolar Transistor. It is a semiconductor device that controls high-power electrical currents efficiently.
Unlike standard transistors, an IGBT has:
- A MOSFET-like gate for easy control.
- A bipolar transistor structure for handling high current and voltage.
This hybrid design makes it perfect for power conversion in industrial and consumer electronics.
How Does an IGBT Work?
An IGBT works as an electronic switch. When a small voltage is applied to its gate, it allows a large current to flow between its collector and emitter.
Here’s a simple breakdown:
- Gate Signal Applied – A small voltage turns the IGBT on.
- Current Flows – Power moves from the collector to the emitter.
- Fast Switching – It can switch on/off rapidly with minimal losses.
Because of this, power IGBT modules are widely used in inverters, motor drives, and renewable energy systems.
IGBTs are crucial in many high-power applications. Here are some common uses:
IGBTs control the motor speed and convert battery power efficiently. Without them, EVs wouldn’t be as energy-efficient.
Factories use IGBT power modules to control heavy machinery. They ensure smooth operation and reduce energy waste.
Solar inverters and wind turbines rely on IGBTs to convert DC power into usable AC power.
4. Consumer Electronics
Devices like air conditioners and induction cooktops use IGBTs for better power management.
Uninterruptible power supplies (UPS) use power module IGBT designs for stable energy delivery.
Key Benefits of IGBTs
Why are IGBTs preferred over other transistors? Here are their main advantages:
1. High Efficiency
IGBTs reduce power loss, making systems more energy-efficient.
2. Fast Switching Speed
They switch on/off quickly, improving performance in high-frequency applications.
3. High Voltage & Current Handling
Unlike MOSFETs, IGBTs can handle very high power levels without overheating.
4. Reliable & Durable
They last longer under heavy loads, reducing maintenance costs.
5. Easy to Control
Since they use a voltage-controlled gate (like MOSFETs), they’re easier to integrate into circuits.
IGBT vs. Other Power Transistors

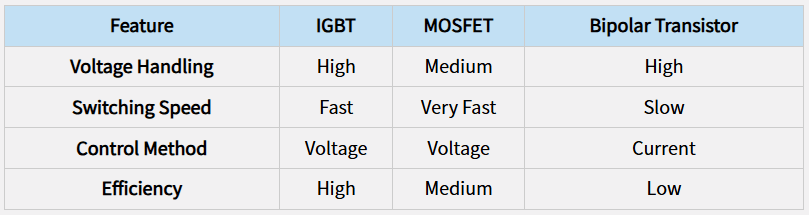

How does an IGBT compare to MOSFETs and bipolar transistors?
As seen, IGBTs strike a balance between power handling and switching speed.
Future of IGBT Technology
IGBTs continue to evolve. Newer IGBT power modules are becoming:
- More compact – Smaller sizes with higher power density.
- More efficient – Lower energy losses for greener electronics.
- Smarter – Integrated sensors for better thermal management.
With the rise of electric vehicles and renewable energy, IGBTs will remain essential.
Conclusion
Now that you know the IGBT meaning, its uses, and benefits, you can see why it’s a game-changer in power electronics. From EVs to industrial machines, power IGBT modules make modern technology more efficient and reliable. If you’re working with high-power circuits, understanding IGBTs is a must. Their ability to switch quickly, handle high voltages, and save energy makes them irreplaceable.
