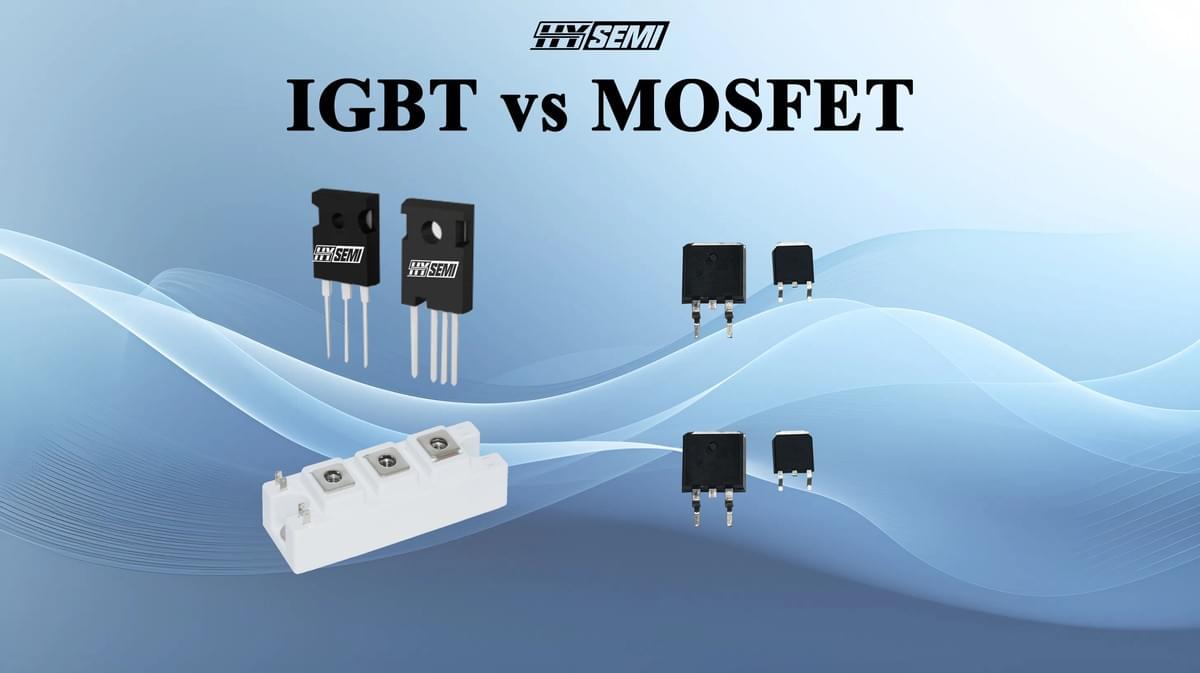

IGBT vs MOSFET Which One Should You Choose for High-Power Applications

Choosing the right power semiconductor is critical for efficiency and performance. The debate between IGBT vs MOSFET is common in high-power applications like motor drives, solar inverters, and electric vehicles (EVs). Both have unique strengths, but which one is better for your needs? This guide compares IGBT vs MOSFET in simple terms, helping you make the best choice.

Understanding MOSFETs and IGBTs

What Is a MOSFET?

A MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is a voltage-controlled device. It’s widely used in power switching due to its fast switching speed and efficiency at lower voltages.

What are the different types of MOSFET?

• Enhancement-mode MOSFET (normally off, needs gate voltage to conduct).
• Depletion-mode MOSFET (normally on, needs gate voltage to turn off).
• Power MOSFETs (designed for high-current handling).

What Is an IGBT?

An IGBT (Insulated Gate Bipolar Transistor) combines MOSFET’s gate control with a bipolar transistor’s high-current handling. It’s ideal for high-voltage, high-power applications.

MOSFET vs transistor (BJT):

While MOSFETs are voltage-controlled, traditional bipolar transistors (BJTs) are current-controlled. IGBTs merge the best of both.

When to Use MOSFET?

MOSFETs are better when:

✔ High switching speed is needed (e.g., DC-DC converters).

✔ Low-voltage, high-frequency applications (e.g., SMPS, motor controllers).

✔ Minimal heat generation is crucial.

What are the different types of power MOSFET?

• Trench MOSFET (compact, high-density).
• Planar MOSFET (traditional, cost-effective).
• Superjunction MOSFET (high-voltage efficiency).

MOSFET vs Bipolar Transistor: Where Does IGBT Fit?

Bipolar transistors (BJTs) are older technology. They’re current-controlled, making them less efficient than voltage-controlled MOSFETs and IGBTs.

MOSFET vs bipolar transistor:

• MOSFETs are faster and more efficient in switching.
• BJTs are cheaper but lose efficiency at high power.
• IGBTs fill the gap, offering high power handling with better control.

Real-World Applications

1. Electric Vehicles (EVs)

• MOSFETs in low-voltage DC-DC converters.
• IGBTs in high-power traction inverters.

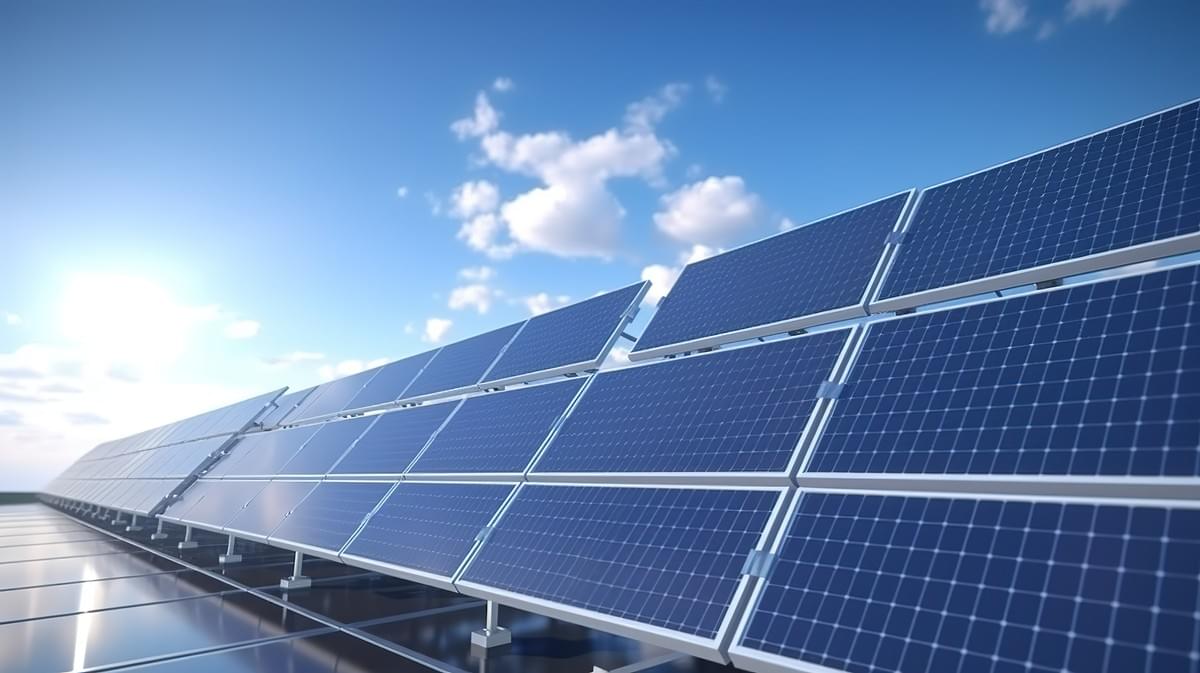

2. Solar Inverters

• MOSFETs in microinverters (low power).
• IGBTs in central inverters (high power).

3. Industrial Motor Drives

• MOSFETs in servo drives (fast switching).
• IGBTs in heavy-duty motor controllers.

Which One Should You Choose?

Pick a MOSFET if:

• You need fast switching (100kHz+).
• Your application runs below 600V.
• Efficiency at high frequency matters.

Pick an IGBT if:

• You’re working with 600V+ and high current.
• Switching speed is less critical than power handling.
• Long-term reliability in harsh conditions is key.

Conclusion

The IGBT vs MOSFET debate depends on your project’s needs. MOSFETs excel in high-speed, low-power circuits, while IGBTs dominate high-power, high-voltage systems. Understanding what are the different types of MOSFET and where each device shines helps optimize performance. Whether it's MOSFET vs transistor (BJT) or MOSFET vs bipolar transistor, the right choice saves cost and boosts efficiency.

For high-power applications, IGBTs are often the best fit—but always check voltage, frequency, and thermal needs before deciding.
