• 40A - 800A IGBT Modules 1200V/1700V

    As SHYSEMI's flagship product line, the 34mm and 62mm series represents leading quality in China, with test data comparable to that of top German and Japanese products.

    34mm IGBT Module Packing
    62mm IGBT Modules Packing
    34mm-2 IGBT Modules Packing
    62mm IGBT Modules Packing

  • Why Choose SHYSEMI’s Mid/High Power F Series IGBT Modules?

    The medium and high-power F series modules of SHYSEMI are available in two sizes: 34mm and 62mm packages, Those IGBT modules represents a highly mature and widely adopted standard for high-power applications. Its design integrates numerous advanced IGBT and diode chips to achieve exceptionally high current ratings. The high heat generated by these multiple chips is effectively dissipated through high-performance thermal interface materials and sintering technology.

  • Package List

    Some packages differ only in their external shape and can be replaced according to the actual installation layout. For details, please consult an engineer: info@shysemi.com

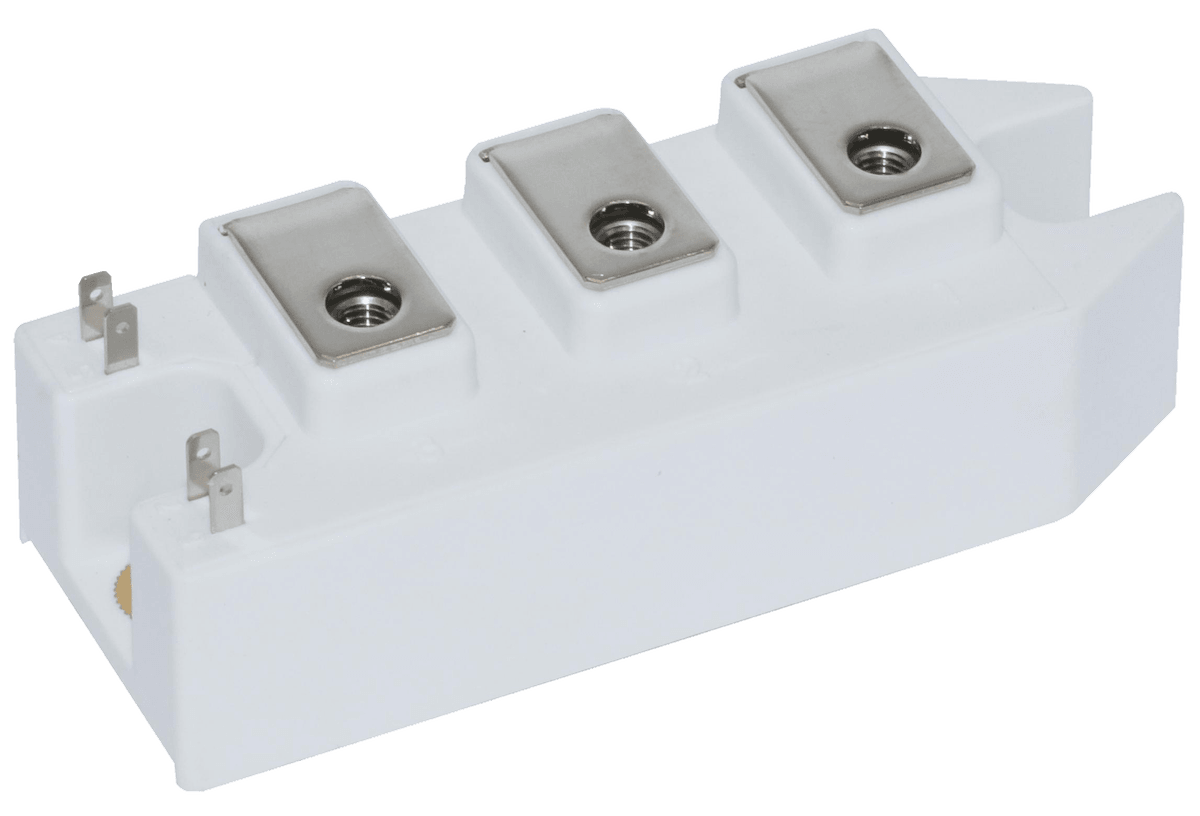

    34mm IGBT Modules

    34mm IGBT Modules

    34mm IGBT module products are built with self-developed chips and offer high functional compatibility, strong integration, and reliable insulation, with customizable solutions available to meet specific application needs.

    • Micro-Pattern Trench FS Chips — Reduced Eon/Eoff Losses
    • Sintered Connection for Minimized Thermal Resistance

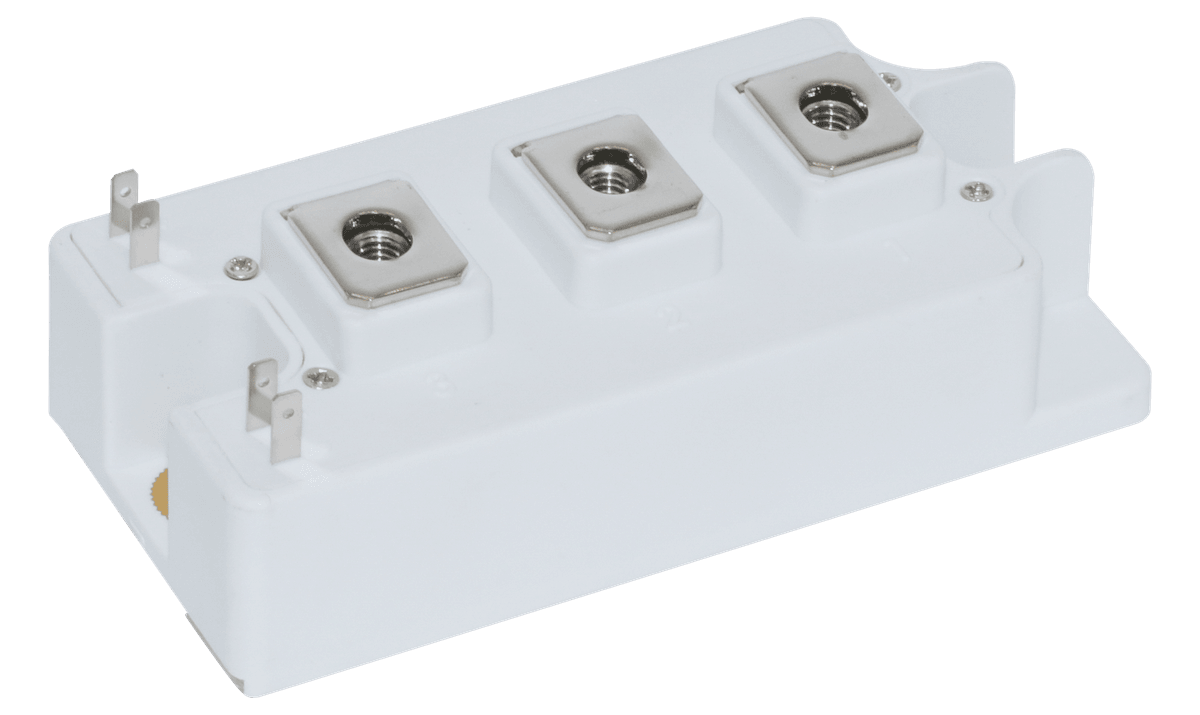

    62mm IGBT Modules

    62mm IGBT Modules

    As SHYSEMI's flagship product line, the 62 mm series represents leading quality in China, with test data comparable to that of top German and Japanese products.

    • 1200V Series (100A-300A) for Welding, HEV & Industrial Drives
    • 1700V Series (100A-200A) for Harsh 24/7 Industrial Operation

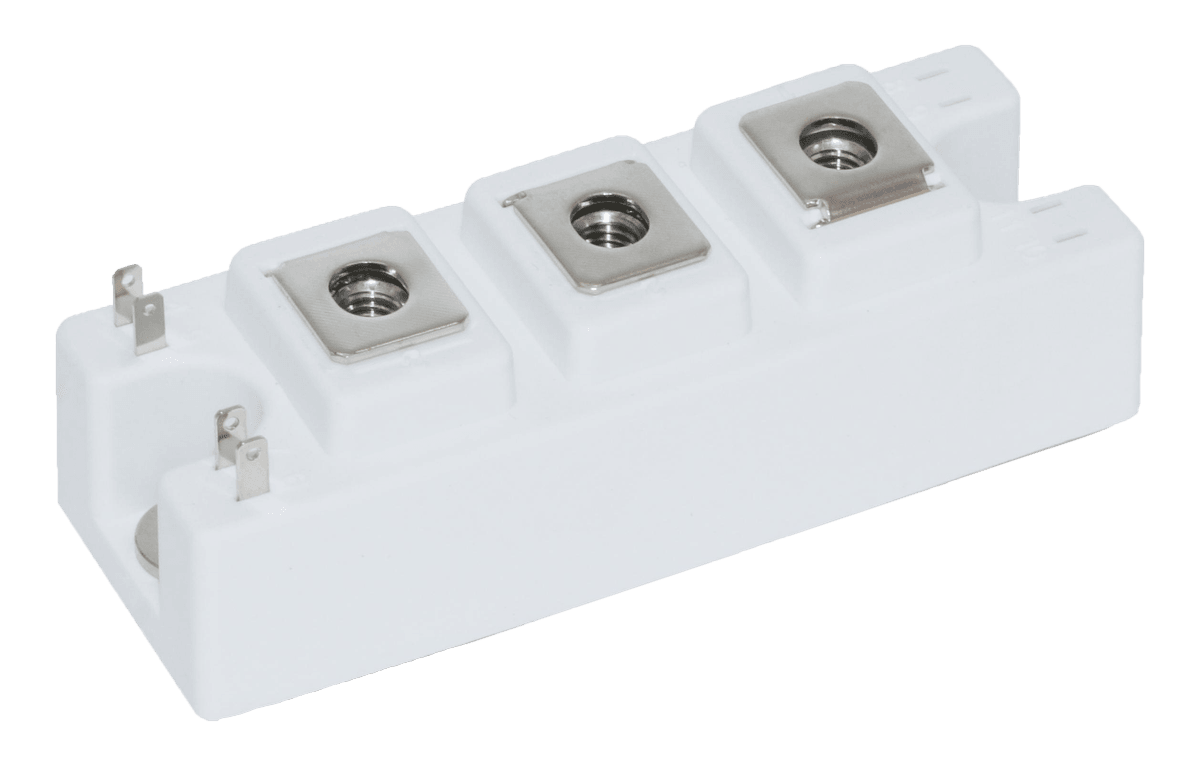

  • IGBT Module - 34mm Download Datasheet

    The 34mm IGBT module standard was primarily established by industry leaders such as Infineon, Fuji Electric, and Mitsubishi. SHYSEMI has now made significant breakthroughs in this technology. By employing the latest micro-pattern trench field-stop chip technology, the company produces thinner chips that substantially reduce both turn-on and turn-off losses (Eon/Eoff). Furthermore, through the use of high-performance thermal grease or even sintered connections to attach the chip directly to the substrate, thermal resistance is greatly minimized.

  • product image
    SYMT150HF120T1VH-SF: 1200V/150A, Field Stop Trench Gate IGBT Module with ultra-low VCE(sat)
    product image
    SYMF100HF120T1VH: 1200V/100A NPT IGBT Module featuring low switching loss, low VCE(sat), and >10μs
    product image
    SYMF75HF120T1VH: 1200V/75A, NPT IGBT Module with low switching loss, >10μs short-circuit capability

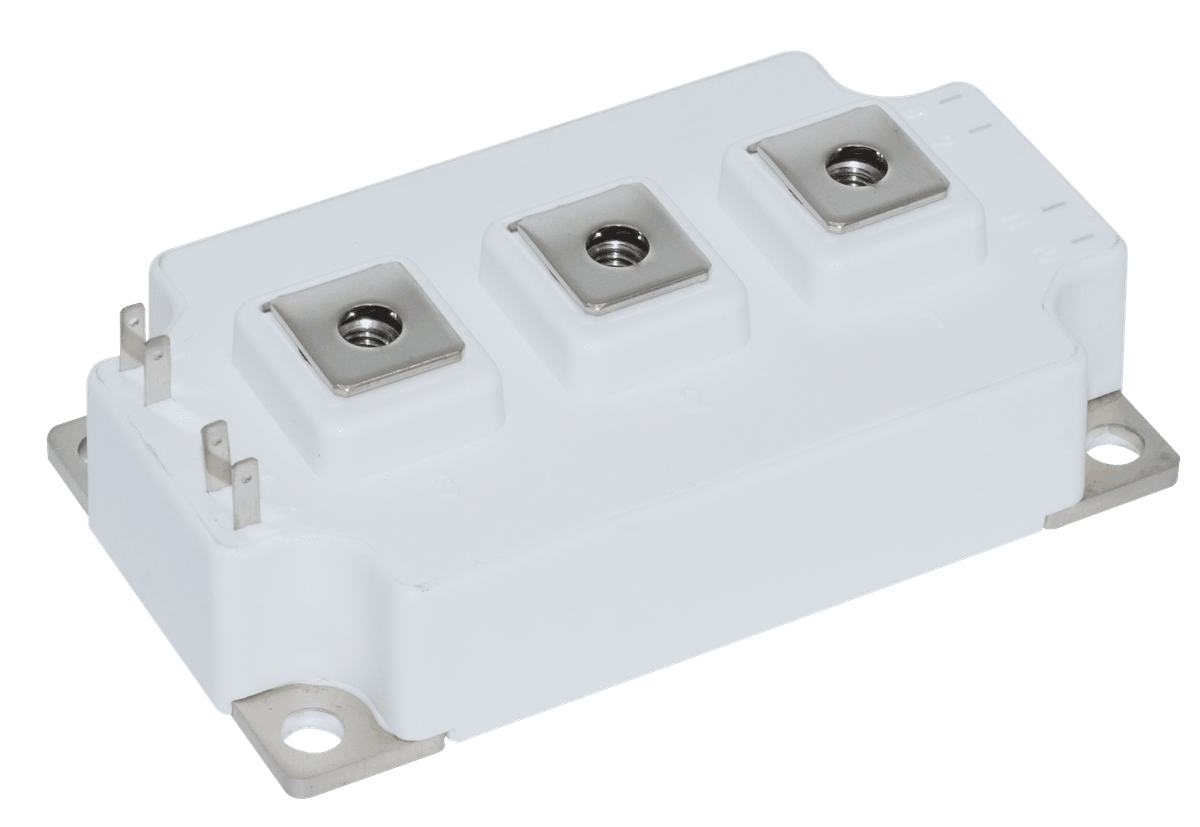

  • IGBT Module - 62mm Download Datasheet

    Engineered for demanding 24/7 industrial operation in harsh environments—such as mines, steel mills, and offshore wind farms—this module offers significant system-level advantages. Specifically, compared to using several smaller modules in parallel, a single 62mm module simplifies the design of the gate drive circuit, cooling system, busbar connections, and protection circuitry, thereby lowering overall system integration costs.

  • product image
    SYMT200CU120T2VH: 1200V/200A IGBT module for welding, HEV and industrial drive
    product image
    SYMT150CU120T2VH: 1200V/150A IGBT module for industrial power applications
    product image
    SYMT200HF170T2VH: 1700V/200A IGBT module delivers low saturation voltage, short-circuit reliability
    product image
    SYMT150HF170T2VH: 1700V/150A IGBT module features low saturation voltage, short-circuit capability
    product image
    SYMT300HF120T2VH-M: 1200V/300A IGBT module delivers low saturation voltage, high reliability
    product image
    SYMT200HF120T2VH-M: 1200V/200A high-current IGBT module delivers low saturation voltage
    product image
    SYMT100HF170T1VH: 1700V/100A IGBT module features low saturation voltage, low switching loss

  • Application Areas for 40A–800A IGBT Modules

    8A–50A 1200V IGBT Modules for industrial inverters, UPS systems, motor drives, and power conversion applications, integrating fast recovery diodes (FRDs) for soft recovery, low reverse recovery loss, high surge current capability, and excellent thermal performance.

    Servo Drive
    UPS icon
    Wind Turbine Power icon
    Welding Machines ICON

    Servo Drive

    UPS

    Wind Turbine Power

    Welding Machines
