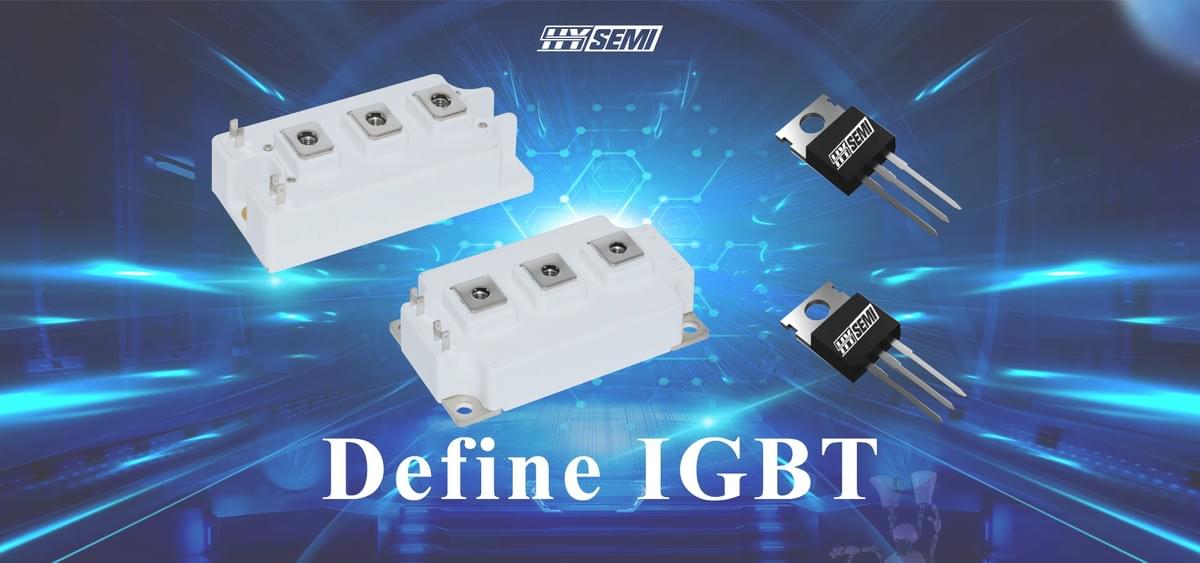

What Exactly is an IGBT?
To properly define IGBT, we must break down its name:
I: Insulated
G: Gate
B: Bipolar
T: Transistor
This bipolar transistor hybrid combines:
✔ MOSFET's fast switching
✔ BJT's high current handling
The IGBT meaning in practice? A smart power switch that makes modern energy systems possible.
IGBT Structure Explained
A power IGBT module contains three main parts:
Gate - Controls switching (like a faucet handle)
Collector - Receives high power input
Emitter - Outputs controlled power
Modern power module IGBT designs add:
Thermal sensors
Protection circuits
Compact packaging
Why IGBTs Dominate Power Conversion
1. High Efficiency Operation
- Loses less energy than MOSFETs at high voltage
- An IGBT power module can exceed 98% efficiency
2. Rugged Performance
- Handles thousands of volts
- Works in extreme temperatures
3. Smart Control
- Precise switching timing
- Integrates with digital controllers
Key Applications
Power module IGBT units control:
- Motor speed
- Regenerative braking
- Battery charging
Solar inverters use power IGBT modules to:
- Convert DC to AC
- Maximize energy harvest
- Provides smooth motor control
- Reduces energy waste in factories
The Future of IGBT Technology
- Wider Bandgap Materials - SiC and GaN hybrids
- Higher Power Density - More compact designs
- Smarter Modules - Built-in diagnostics
Frequently Asked Questions
Q: How would you define IGBT simply?
A: A high-power electronic switch that controls energy flow efficiently.
Q: What's the difference between IGBT and standard transistors?
A: IGBTs handle much higher power with better efficiency.
Q: Why use a power IGBT module instead of discrete parts?
A: Modules offer better reliability and simpler design.
Conclusion
To define IGBT completely means understanding its role as:
- The backbone of modern power conversion
- A bridge between control systems and high power
- An evolving technology enabling energy innovation
From EV charging stations to wind turbines, IGBT power modules make efficient energy use possible. Their unique combination of traits continues to drive technological progress across industries.
