Medium-frequency power supplies are widely used across industrial manufacturing, medical equipment, and scientific research. At the heart of these systems lies the IGBT (Insulated Gate Bipolar Transistor), a critical power semiconductor device that plays a decisive role in system performance and reliability.
In this article, SHYSEMI provides an in-depth analysis of the working principles of IGBTs in medium-frequency power supplies, their key functions, as well as common failure modes and practical solutions.

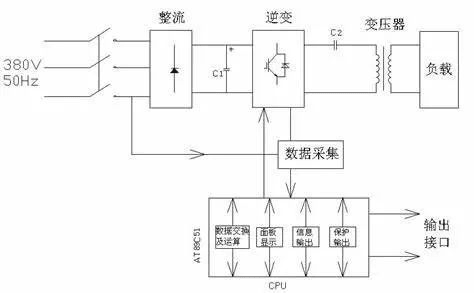

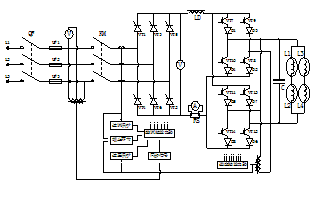

1. Working Principle of IGBT in Medium-Frequency Power Supplies
In medium-frequency power systems, IGBTs primarily operate in switching mode.
When a positive voltage is applied to the gate, a conductive channel forms inside the IGBT, allowing electrons to flow from the emitter to the collector. At this point, the IGBT is in the on-state, enabling current to pass efficiently—much like opening a clear pathway for energy transmission.
Conversely, when the gate voltage is removed or reversed, the conductive channel disappears, and the IGBT enters the off-state, blocking current flow entirely—effectively cutting off the energy path.
By precisely controlling the gate voltage, engineers can accurately switch the IGBT on and off, thereby regulating the output voltage and current of the medium-frequency power supply with high precision.
2. Key Roles of IGBT in Medium-Frequency Power Supplies
High-Efficiency Power Conversion
IGBTs are capable of rapid switching, significantly improving energy conversion efficiency. By minimizing switching losses during power conversion, they enable medium-frequency power supplies to operate more efficiently, ultimately reducing operational costs.
Precise Frequency Control
Medium-frequency power supplies must deliver AC power at specific frequencies. Thanks to the fast switching characteristics of IGBTs, the conduction timing can be precisely controlled, allowing accurate adjustment of output frequency to meet diverse industrial requirements.
High Voltage and Current Capability
Many industrial applications involve high voltage and large current demands. IGBTs are designed to handle these conditions reliably, ensuring stable operation of medium-frequency power supplies even in harsh industrial environments.
3. Common Failure Modes of IGBT and Solutions
1. Overcurrent Fault
Symptoms:
Current exceeds the rated value, potentially leading to overheating and device failure.
Causes:
Load short circuits or driver circuit malfunctions. For example, a shorted load can cause a sudden surge in current.
Solutions:
- Install fast-acting fuses or overcurrent protection devices
- Regularly inspect load conditions and driver circuitry
- Ensure proper system design margins
2. Overvoltage Fault
Symptoms:
Voltage across the IGBT exceeds its rated blocking voltage, potentially causing breakdown damage.
Causes:
Voltage spikes generated by inductive elements during switching, or abnormal fluctuations in the power supply.
Solutions:
- Implement snubber circuits (e.g., RC snubber) to suppress voltage spikes
- Use voltage regulators to stabilize the power supply
- Optimize circuit layout to reduce parasitic inductance
3. Overheating Fault
Symptoms:
Excessive operating temperature beyond safe limits, degrading performance and shortening device lifespan.
Causes:
Poor thermal management, such as improper heatsink installation or cooling fan failure. Prolonged high-load operation also contributes to heat buildup.
Solutions:
- Ensure proper heatsink installation and apply thermal interface materials correctly
- Clean heatsinks regularly to maintain airflow
- Verify cooling fan operation and replace if necessary
- Avoid continuous operation under excessive load conditions
4. Conclusion
As the core component of medium-frequency power supplies, IGBTs play a vital role in enabling efficient, stable, and high-performance power conversion. Understanding their working principles and common failure mechanisms is essential for ensuring system reliability and improving operational efficiency.
With ongoing advancements in power semiconductor technology, IGBTs continue to evolve, offering enhanced performance, higher efficiency, and greater robustness. These innovations will further drive the development of medium-frequency power systems and unlock new possibilities across industrial and energy applications.
