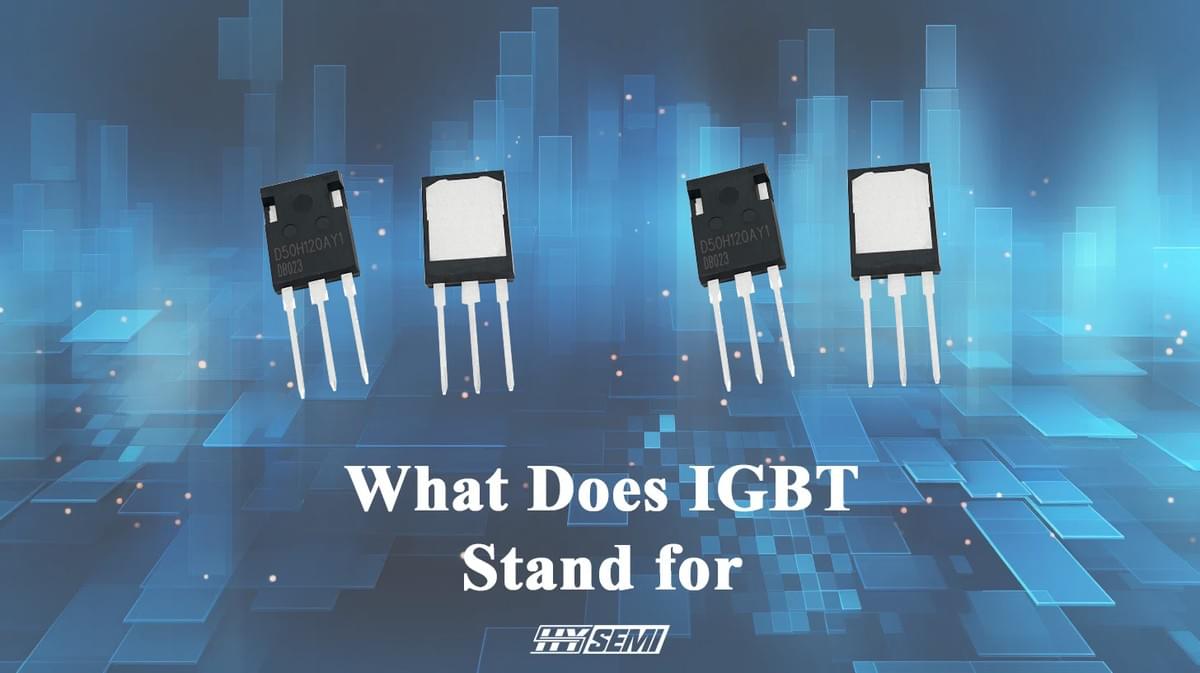

Understanding the Basics: What Does IGBT Stand For?
If you've ever wondered 'what does IGBT stand for,' you're not alone. IGBT stands for Insulated Gate Bipolar Transistor, a crucial component in modern power electronics. But what is IGBT exactly? It's a semiconductor device that combines the best features of MOSFETs and bipolar transistors, creating an efficient switch for high-power applications.
These devices have become the backbone of power conversion systems across industries. From electric vehicles to factory equipment and even your home appliances, IGBTs work silently to manage power efficiently. Their ability to handle high voltages and currents while maintaining precise control makes them indispensable in today's technology landscape.
IGBT Fundamentals: How They Work and Why They Matter
At its core, an IGBT is a three-terminal power semiconductor device. It has:
- A gate (for control)
- A collector (power input)
- An emitter (power output)
The magic happens when voltage is applied to the gate terminal. This creates a conductive path between collector and emitter, allowing large currents to flow with minimal loss. When the gate voltage is removed, the device switches off quickly.
What makes IGBTs special is their hybrid nature. They use MOSFET technology for fast switching while incorporating bipolar transistor characteristics for high current handling. This combination enables them to outperform other power devices in many applications.
IGBT Packaging: Protecting the Power Within
IGBT packaging plays a critical role in device performance and reliability. Manufacturers use various IGBT package types to meet different application needs:
- Discrete packages for low-power applications
- Module packages for industrial systems
- Advanced cooling designs for high power IGBT applications
The packaging must handle electrical insulation, thermal management, and mechanical protection simultaneously. For high voltage IGBT applications, special attention is given to creepage and clearance distances to prevent arcing.
Automotive Applications: Driving the EV Revolution
The automotive sector has become one of the biggest users of IGBT technology. Modern electric vehicles typically contain dozens of these devices in their power systems.
Key automotive applications include:
- Traction inverters (converting battery DC to motor AC)
- On-board chargers
- DC-DC converters
- Battery management systems
In EVs, IGBTs face extreme demands. They must handle hundreds of volts and amps while surviving vibration, temperature swings, and years of continuous operation. Automotive-grade IGBTs use rugged packaging and advanced materials to meet these challenges.
Industrial Power: Where IGBTs Shine Brightest
Industrial applications represent the traditional stronghold of IGBT technology. Factories worldwide rely on these devices for:
- Motor drives (controlling speed and torque)
- Uninterruptible power supplies (UPS)
- Welding equipment
- Industrial heating systems
- Renewable energy inverters
In these settings, high power IGBT modules dominate. They're built to deliver reliable performance in harsh environments, often operating 24/7 for years. Industrial IGBT packages prioritize heat dissipation and mechanical robustness above all else.
Consumer Tech: The Hidden IGBT Revolution
While less visible, IGBTs play important roles in consumer products:
- Air conditioner inverters
- Induction cooktops
- Microwave ovens
- High-end audio amplifiers
Consumer applications demand cost-effective solutions. Manufacturers often use compact IGBT package types optimized for mass production. The focus here is on miniaturization while maintaining adequate performance and reliability.

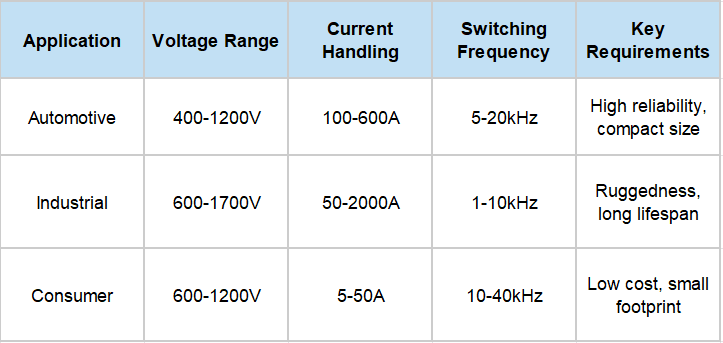

Comparing Performance Across Sectors
The Future of IGBT Technology
As power demands grow across all sectors, IGBT technology continues to evolve. Recent advancements include:
- Higher voltage ratings (up to 6.5kV)
- Improved switching speeds
- Better thermal performanceMore compact packaging
Silicon carbide (SiC) and gallium nitride (GaN) devices are challenging IGBTs in some applications. However, for many high power IGBT applications, the technology remains the most cost-effective solution.
Choosing the Right IGBT for Your Needs
When selecting an IGBT, consider:
- Voltage and current requirements
- Switching frequency needs
- Thermal management capabilities
- Package type and mounting options
- Cost constraints
For most high voltage IGBT applications, module packages offer the best balance of performance and reliability. For consumer products, discrete devices often suffice.
