[SYD2065SLA] 650V/20A IGBT delivers low saturation voltage, low switching loss and built-in FRD
Package：TO-220
VCE(SAT)@typ.Tj=25°C: 1.7
VGEth@typ.Tj=25°C: 5.5
Details: SYD2065SLA/SLP/SLB/SLD 650V 20A high-performance IGBT transistor features low VCE(sat), low conduction & switching loss, fast recovery diode, multiple packages (TO-247/220/220F/263), ideal for UPS, PFC, motor drive & power supply semiconductor solutions.
*For English specifications, please contact us.
VCE(SAT)@typ.Tj=25°C: 1.7
VGEth@typ.Tj=25°C: 5.5
Details: SYD2065SLA/SLP/SLB/SLD 650V 20A high-performance IGBT transistor features low VCE(sat), low conduction & switching loss, fast recovery diode, multiple packages (TO-247/220/220F/263), ideal for UPS, PFC, motor drive & power supply semiconductor solutions.
*For English specifications, please contact us.
More Details
Applications:
- UPS
- PFC
- Motor Control
Features:
- Saturation Voltage Drop: Positive Temperature Coefficient
- Easy to Use in Parallel Circuits
- Low Switching Loss
- Built-in Fast Recovery Diode
- High Reliability and Thermal Stability
- Good Parameter Consistency

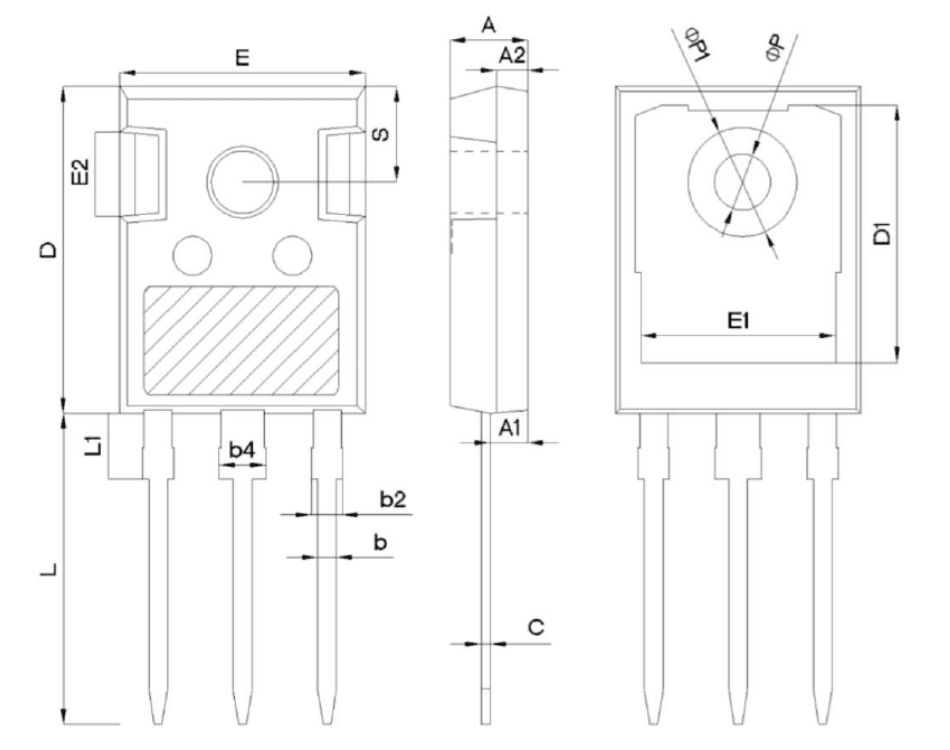

Package Dimension Diagram:
![[SYD2065SLA] 650V/20A IGBT delivers low saturation voltage, low switching loss and built-in FRD](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/650285_471233.png)
