• FRD Chip

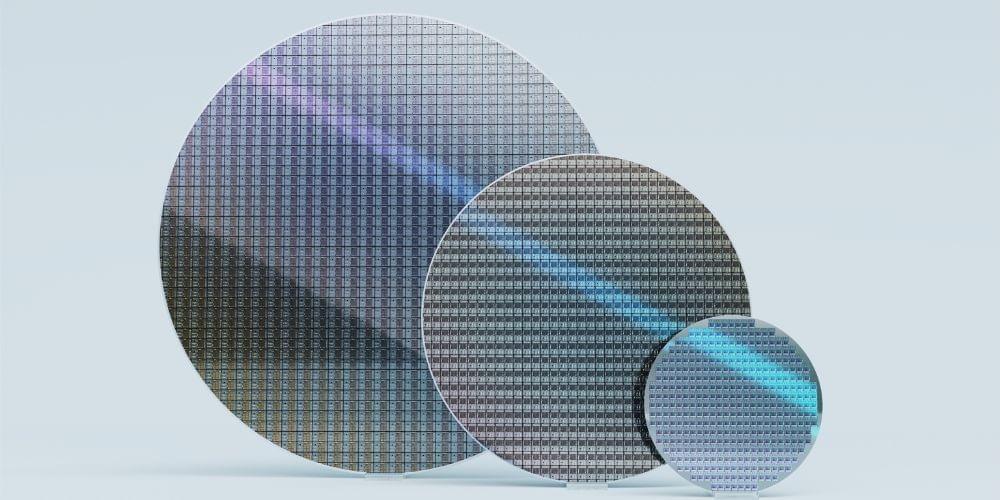

    Wafer Size: 1700V = 1200V

  • What are the outstanding features of SHYSEMI's FRD chips?

    A watershed in power semiconductor technology, the 6th-generation Trench Field Stop (TFS) process delivers an optimal balance of blocking voltage, conduction loss, and switching speed, establishing the definitive state-of-the-art for silicon FRDs.

    SHYSEMI leverages this process to develop its 1200 V and 1700 V product series, which features a uniform die size for manufacturing efficiency. The chips are taped out by Huahong Group, the world's sixth-largest global foundry.

  • FRD Chip's Application

    Application Circuits: High-frequency switching mode power supply, power factor correction (PFC) circuits.
    Application Areas: Solar inverters, UPS, electric vehicles, on-board chargers and electric drive auxiliary power supplies, industrial motor drives, frequency converters, welding equipment.

    • Industrial Motor Drive
    • UPS
    • Welding
    • Solar Inverter

    SYF60P120A6K1

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1200
    • IFM: 60
    • Effective Die Quantity: 420

    SYF100P120A6F

    • Size(Inch): 6
    • Type: Fast
    • VRRM: 1200
    • IFM: 100
    • Effective Die Quantity: 265

    SYF150FD120MR

    • Size(Inch): 6
    • Type: Fast
    • VRRM: 1200
    • IFM: 150
    • Effective Die Quantity: 171

    SYF200P120A6K1

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1200
    • IFM: 200
    • Effective Die Quantity: 126

    SYF60P170E1

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1700
    • IFM: 60
    • Effective Die Quantity: 340

    SYF100P170E1

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1700
    • IFM: 100
    • Effective Die Quantity: 252

    SYF150P170E1

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1700
    • IFM: 150
    • Effective Die Quantity: 158

    SYF200P170CBK

    • Size(Inch): 12
    • Type: Std
    • VRRM: 1700
    • IFM: 200
    • Effective Die Quantity: 550

    SYF100P65E2

    • Size(Inch): 6
    • Type: Std
    • VRRM: 750
    • IFM: 100
    • Effective Die Quantity: 513

    SYF150P120A6S2

    • Size(Inch): 6
    • Type: Std
    • VRRM: 1200
    • IFM: 150
    • Effective Die Quantity: 185

  • Features:

    • Reduced Power Loss In Diode And Switching Transistor
    • High Frequency Operation
    • Optimized for switching softness, Reduced EMI
