规格书[SYD2065SL] 650V/20A IGBT features low loss, fast switching, built-in FRD, easy parallel for UPS
Package：TO-247-3L
VCE(SAT)@typ.Tj=25°C: 1.7
VGEth@typ.Tj=25°C: 5.5
Details: SYD2065SLW/SLA/SLB/SLP 650V 20A trench IGBT with low VCE(sat), low switching loss, fast recovery diode, 5μs short-circuit withstand, multi-packages, RoHS for UPS, PFC, motor drive semiconductor solutions.
*For English specification, please contact us.
VCE(SAT)@typ.Tj=25°C: 1.7
VGEth@typ.Tj=25°C: 5.5
Details: SYD2065SLW/SLA/SLB/SLP 650V 20A trench IGBT with low VCE(sat), low switching loss, fast recovery diode, 5μs short-circuit withstand, multi-packages, RoHS for UPS, PFC, motor drive semiconductor solutions.
*For English specification, please contact us.
More Details
Applications:
- UPS
- PFC
- Motor Control
Features:
- Saturation Voltage Drop: Positive Temperature Coefficient
- Easy to Use in Parallel Circuits
- Low Switching Loss
- Built-in Fast Recovery Diode
- High Reliability and Thermal Stability
- Good Parameter Consistency

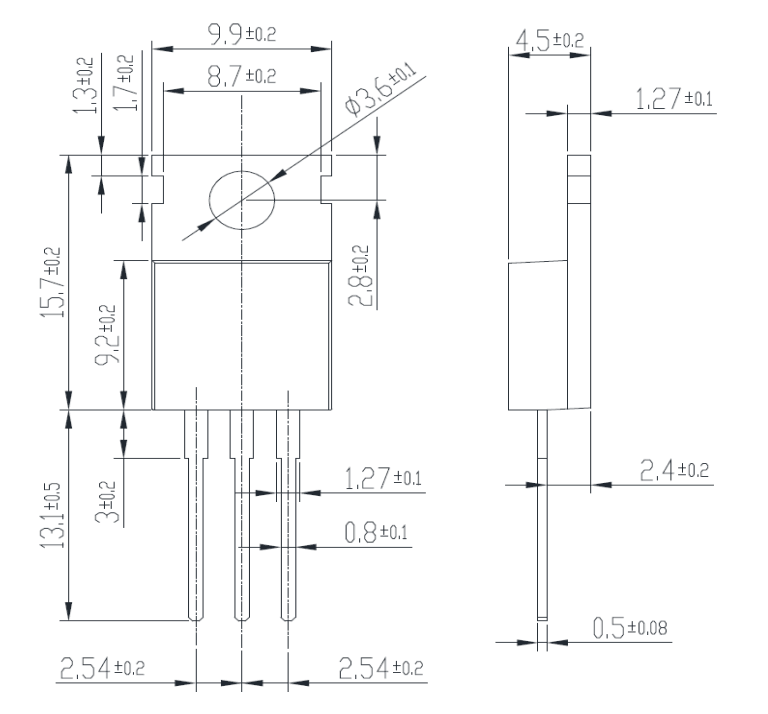

Package Dimensions Diagram:
![[SYD2065SLW]](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/563088_500726.png)
