[SYD75H120FNB] 1200V/75A trench IGBT, low loss, 10μs SC, fast recovery diode for solar/UPS/welding
Package：TO-247 Plus
VCE(SAT)@typ.Tj=25°C: 1.85
VGEth@typ.Tj=25°C: 5.7
Details: SYD75H120FHB 1200V 75A trench field‑stop IGBT, low VCE(sat), low switching loss, 10μs short‑circuit, fast recovery anti‑parallel diode, 150°C, RoHS, solar inverter, UPS, welding machine, PFC semiconductor.
VCE(SAT)@typ.Tj=25°C: 1.85
VGEth@typ.Tj=25°C: 5.7
Details: SYD75H120FHB 1200V 75A trench field‑stop IGBT, low VCE(sat), low switching loss, 10μs short‑circuit, fast recovery anti‑parallel diode, 150°C, RoHS, solar inverter, UPS, welding machine, PFC semiconductor.
More Details
Applications:
- Uninterrupted Power Supply
- Solar Inverters
- Inverter Welding Machine
- PFC
Features:
- Low VcE (sat) Trench IGBT Technology
- Low Switching Loss
- 10us Short Circuit SOA
- Square RBSOA
- Positive VCE(sat) Temperature Coefficient
- Tight Parameter Distribution
- Low Thermal Resistance
- Very Fast Recovery Antiparallel Diode
Benefits:
- High Efficiency in a Wide Range of Applications
- Suitable for a Wide Range of Switching Frequencies due toLow VcE(sat) and Low Switching Losses
- Rugged Transient Performance for Increased Reliability
- Excellent Current Sharing in Parallel Operation

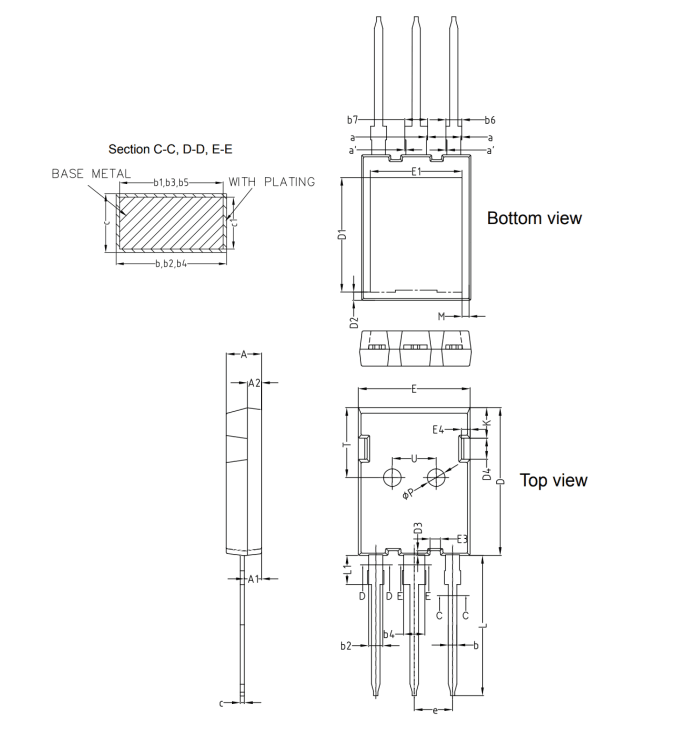

Package Dimensions Diagram:
![[SYD75H120FNB] 1200V/75A trench IGBT, low loss, 10μs SC, fast recovery diode for solar/UPS/welding](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/684067_407813.png)
