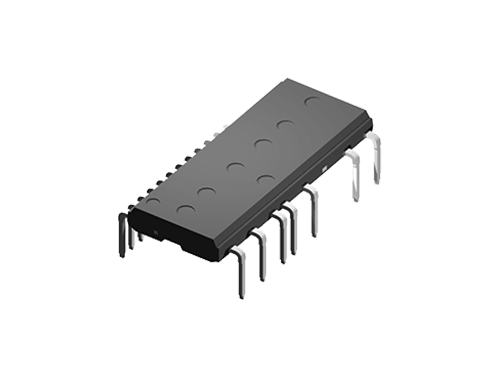

[ SYIM06G60BTA ] 600V/6A, 3-phase IGBT IPM with integrated drivers, simplified inverter
Pin No. : 23
SHYSEMI’s SYIM06G60BTA IPM is a three-phase IGBT intelligent power module with integrated gate drivers, delivering high efficiency, strong reliability, and simplified inverter design for power electronics applications.
Mainly applied in frequency converters of air conditioners, washing machines, air purifiers, etc.
SHYSEMI’s SYIM06G60BTA IPM is a three-phase IGBT intelligent power module with integrated gate drivers, delivering high efficiency, strong reliability, and simplified inverter design for power electronics applications.
Mainly applied in frequency converters of air conditioners, washing machines, air purifiers, etc.
More Details
Applications:
- Frequency converter
- Air Conditioning compressor
- Refrigerator compressor
- Air cleaner
Features:
- Integrated 6 low-loss IGBTs(600V/6A)
- Integrated high voltage gate drive circuit
- Compatible with 3.3V&5V input signal,effective at high level
- Insulation class 1500Vrms / min
- Integrated bootstrap functionality
- High reliability and thermal stability,good parameter consistency
Internal Electrical Schematic:
![[ SYIM06G60BTA ] 600V 6A, 3-phase IGBT IPM with integrated drivers, simplified inverter design](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/112556_63345.png)
