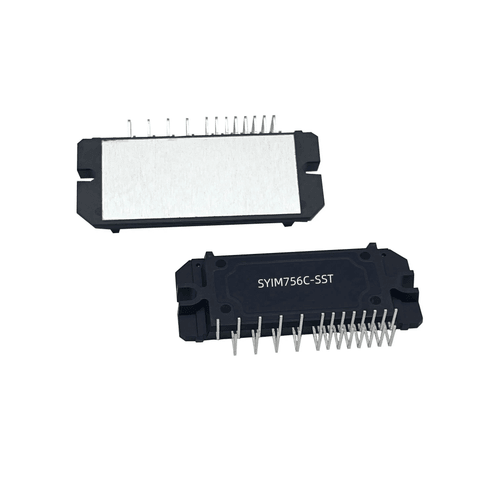

[SYIM756C-SST] 600V/15A, Hybrid SiC IPM with integrated PFC, low power loss, and built-in protection
Strength: 3Φ
PFC: 40A 600V
Applicable powerUp to 100 kHz, with NTC
Details: 600V Intelligent Power Module features Hybrid SiC technology, low switching loss IGBT, SiC Schottky Barrier Diode (SBD), integrated bootstrap circuit, and advanced protection functions for inverter, converter, and motor control applications.
PFC: 40A 600V
Applicable powerUp to 100 kHz, with NTC
Details: 600V Intelligent Power Module features Hybrid SiC technology, low switching loss IGBT, SiC Schottky Barrier Diode (SBD), integrated bootstrap circuit, and advanced protection functions for inverter, converter, and motor control applications.
More Details
Applications:
- Inverter
- Converter
Features:
- Fully Insulated Single In-line Power Module
- Using IMS Insulated and Heat-dissipating Substrate
- SIP (single in line) Fully Insulated Package Structure is Adopted
- Three-phase full bridge 15A 600V, PFC 30A 600V
- Active High, Compatible With TTL / CMOS level
- Integrated Bootstrap Functionality
- PFC uses SiC SBD
- Independent Inverter and PFC Over-current Shutdown
- Under-voltage Lockout at all Channels
- Cross-conduction Prevention
- Fault Signal Output
- Independent Low Side IGBT Emitter
- Built-in NTC thermistor for Temperature Monitornote
Internal Electrical Schematic:
