[SYSD120N015A] 1200V 112A SiC MOSFET, ultra‑low 15mΩ RDS(on), for solar/UPS/EV charging
Package：TO-247-4L
Voltage(V): 1200
RDS(ON), TYP: 15
Details: The SYSD120N015A is a high‑current 1200V SiC MOSFET with ultra‑low 15mΩ on‑resistance. It features fast switching and low recovery, ideal for solar inverters, UPS and EV charging systems.
Voltage(V): 1200
RDS(ON), TYP: 15
Details: The SYSD120N015A is a high‑current 1200V SiC MOSFET with ultra‑low 15mΩ on‑resistance. It features fast switching and low recovery, ideal for solar inverters, UPS and EV charging systems.
More Details
Applications:
- Solar inverters
- PFC
- UPS
- DC-DC Converter
- Welding
- EV Charging
Features:
- Low drain-source on-resistance: RDS(ON) = 15mΩ (typ.),ID,pulse:280A
- Easy to control Gate switching
- Enhancement mode: Vth = 2 to 4 V

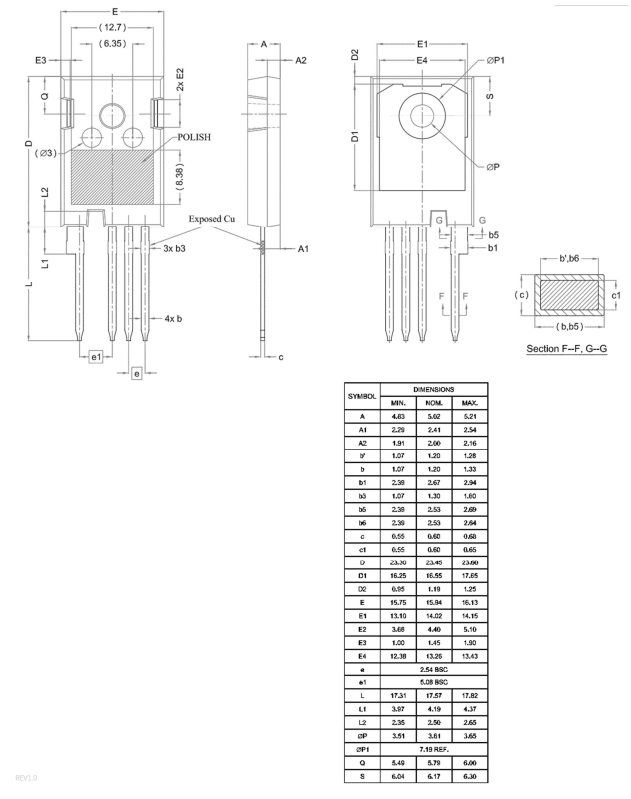

Package Outlines:
![[SYSD120N015A]](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/471623_98032.png)
