[SYSM120N200A] 1200V 200A SiC MOSFET module, 15mΩ low RDS(on), fast switching for DC/DC & SMPS
Package：EconoDUAL
Voltage(V): 1200
Current(A): 200
VGEth@typ.Tj=25°C: 2.5
Details: The SYSM120N015 is a high‑power 1200V SiC MOSFET module with 15mΩ on‑resistance. It offers fast switching, low gate charge and rugged performance, ideal for high‑speed industrial converters and SMPS.
*For English specification, please contact us.
Voltage(V): 1200
Current(A): 200
VGEth@typ.Tj=25°C: 2.5
Details: The SYSM120N015 is a high‑power 1200V SiC MOSFET module with 15mΩ on‑resistance. It offers fast switching, low gate charge and rugged performance, ideal for high‑speed industrial converters and SMPS.
*For English specification, please contact us.
More Details
1. Applications
- Synchronous rectification in SMPS (Switch Mode Power Supplies)
- Hard-switching and high-speed circuits
- DC/DC converters for telecommunications and industrial applications
2. Features
- High-speed power switching capability
- Enhanced body diode dv/dt ruggedness
- Enhanced avalanche capability

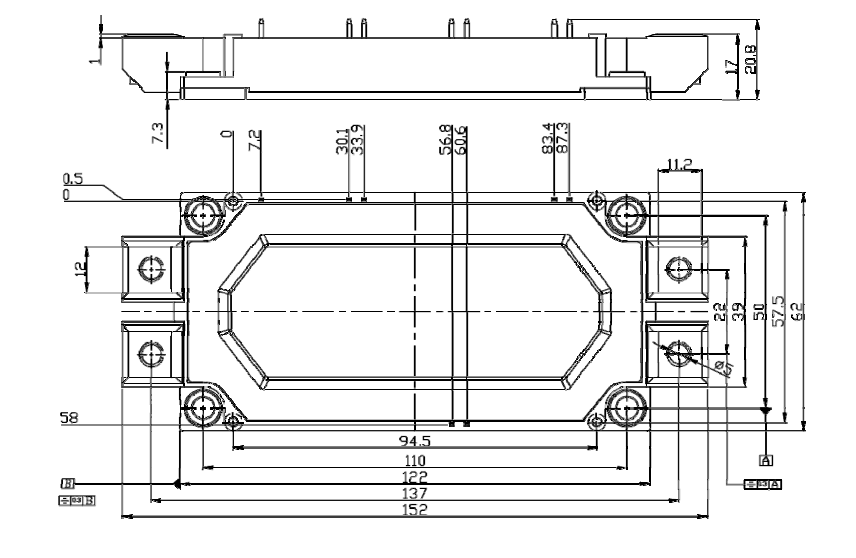

Package Dimensions Diagram:
![[SYSM120N200A] 1200V 200A SiC MOSFET module, 15mΩ low RDS(on), fast switching for DC/DC & SMPS](http://custom-images.strikinglycdn.com/res/hrscywv4p/image/upload/c_limit,fl_lossy,h_9000,w_1200,f_auto,q_auto/23234143/964475_867853.png)
