In power electronics, the topology of an IGBT (Insulated Gate Bipolar Transistor) defines how current is controlled and where the device can be used.
Two of the most common configurations are the half-bridge and the three-phase full-bridge.
In simple terms, the half-bridge is a building block, while the three-phase full-bridge is a complete system for driving multi-phase loads.
1. Topology Comparison: Half-Bridge vs. Three-Phase Full-Bridge

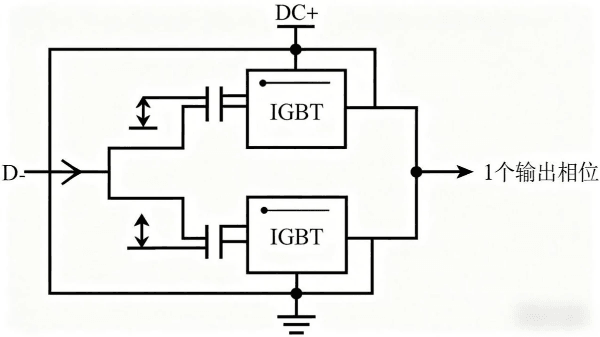

Half-Bridge Topology
Structure:
Two IGBT switches connected in series (high-side and low-side).
Output:
One AC output node taken from the midpoint of the two switches.
Current Path:
Requires either:
- A split DC bus (with capacitors), or
- Another half-bridge to complete the circuit
This is the most basic power switching cell in many converter designs.
Three-Phase Full-Bridge Topology
Structure:
Three half-bridge legs combined into one system, totaling six IGBTs.
Output:
Three AC outputs, typically labeled U, V, W.
Current Path:
Phases form internal current loops. No neutral point from external capacitors is required.
This topology is the standard for motor drives and high-power inverters.
2. Operating Principles and Functional Differences
3. Advantages and Typical Applications
(1) Half-Bridge Advantages
- Low cost: Only two IGBTs required. Simple gate driver design and low BOM cost.
- Compact and simple: Ideal for low-power and space-constrained designs.
- Easy control: Uses complementary PWM without complex algorithms.
- Best for single-phase systems: Matches applications where only one phase is needed.
Typical Applications:
- Switching power supplies (SMPS)
- Single-phase inverters
- Battery charge/discharge systems
- LLC resonant converters
- Basic PWM voltage control
(2) Three-Phase Full-Bridge Advantages
- Direct motor drive capability: Most industrial motors are three-phase and require this topology.
- High power handling: Balanced three-phase currents reduce stress and improve efficiency.
- Smooth operation: Lower torque ripple and reduced vibration/noise compared to single-phase systems.
- Bidirectional energy flow: Supports regenerative braking in EVs and servo systems.
- Industrial compatibility: Works directly with standard 380V / 690V power systems.
Typical Applications:
- Variable frequency drives (VFDs)
- Servo drives
- Electric vehicles (EV inverters)
- Wind power converters
- High-power industrial power supplies
4. Common Misconceptions
Myth 1: Half-Bridge Means Low Power
Not necessarily. Half-bridge circuits can be scaled to high power, but they are typically used in single-phase systems.
Three-phase full-bridges are preferred for motor-driven and high-power applications.
Myth 2: A Three-Phase Bridge Is Just “More Switches”
It’s more than adding devices. It requires:
- Three-phase PWM control
- Dead-time coordination
- Current sensing and phase management
- Advanced control algorithms (e.g., FOC – Field-Oriented Control)
Myth 3: A Half-Bridge Can Replace a Three-Phase Bridge
It cannot.
A half-bridge produces only a single-phase voltage and cannot generate a rotating magnetic field, which is essential for driving three-phase motors.
5. Key Differences That Matter in Design
Degrees of Freedom
- Half-bridge: controls one node voltage
- Three-phase bridge: generates a rotating magnetic field (critical for motor operation)
Integration Level

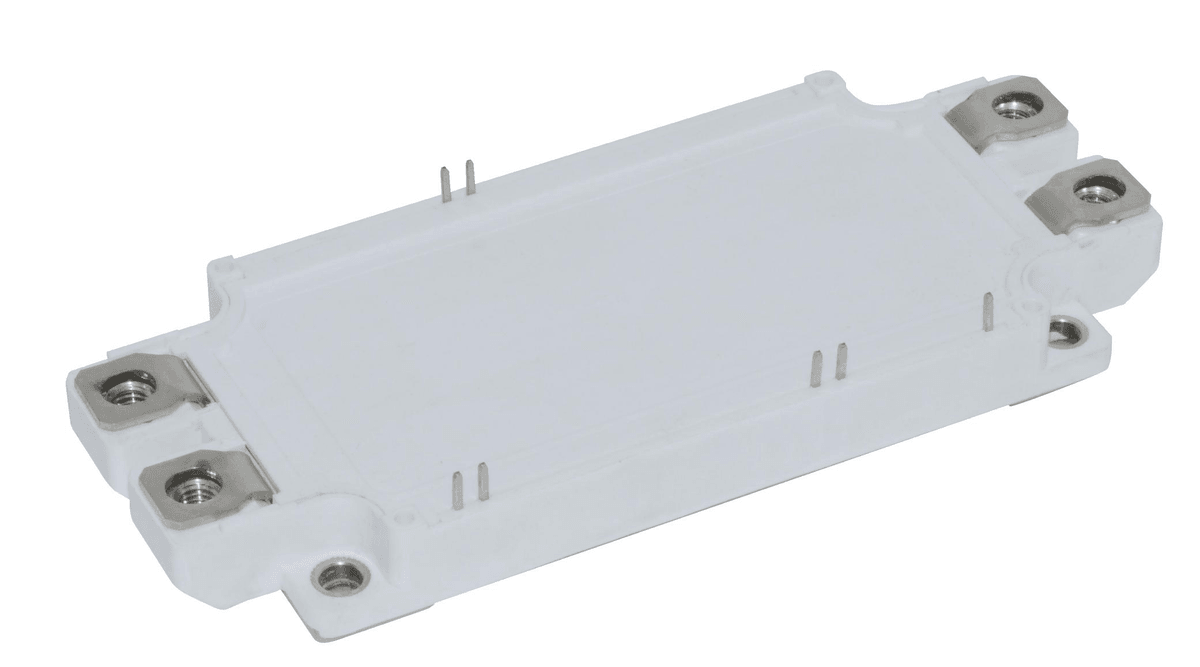

- Half-bridge: often available as 1-in-1 or 2-in-1 modules

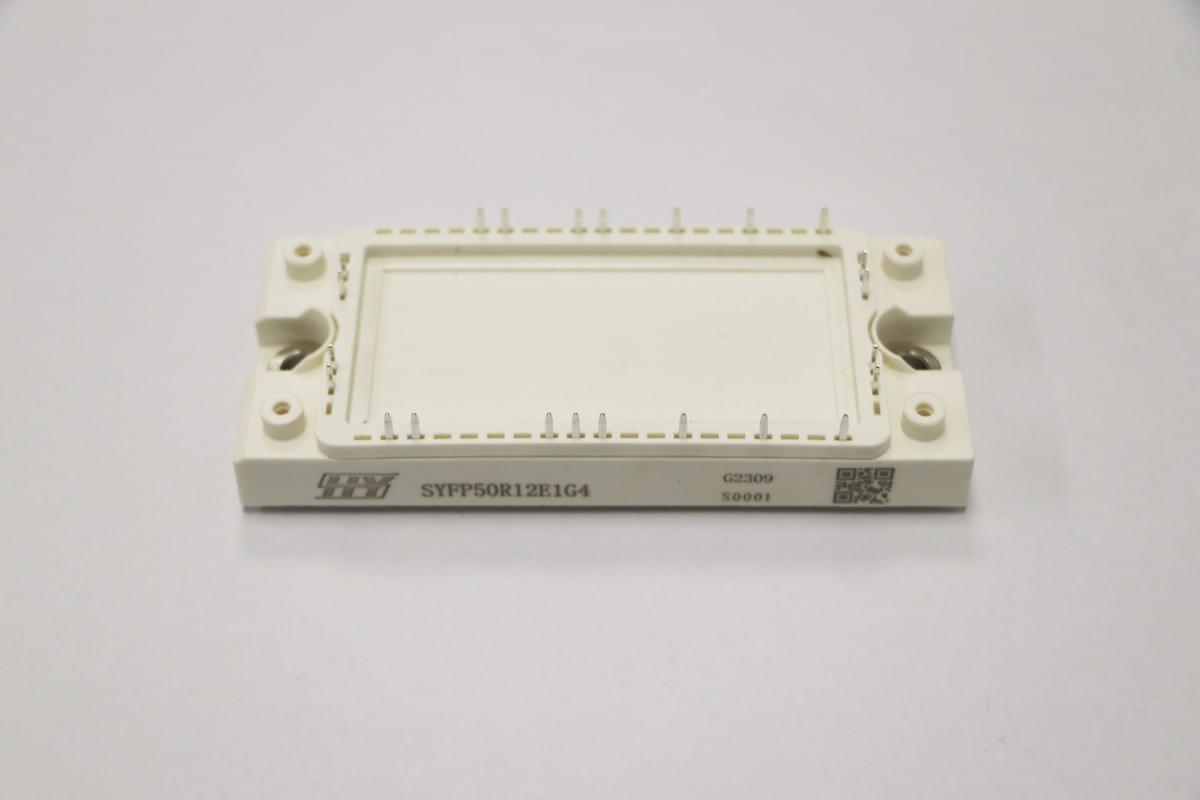

- Three-phase bridge: typically integrated as 6-pack modules or IPM (Integrated Power Modules)
Efficiency and System Cost
While a three-phase full-bridge has higher cost and complexity, it delivers:
- Better energy utilization
- Higher control precision
- Superior performance in inductive loads like motors
6. Design Recommendations
- For single-phase inverters, DC-DC converters, or induction heating, the half-bridge offers the best cost-performance balance.
- For motor drives, robotics, and EV systems, the three-phase full-bridge is the industry-standard and most reliable solution.
FAQ: Half-Bridge vs. Three-Phase Full-Bridge
Q1: Why do motor drives require a three-phase full-bridge?
Industrial motors (such as PMSM or induction motors) need three sinusoidal currents with 120° phase shift to generate a rotating magnetic field.
A half-bridge cannot produce this, so it cannot drive standard three-phase motors.
Q2: What is the biggest risk in a three-phase bridge design?
Shoot-through (short circuit).
If the high-side and low-side IGBTs in the same leg turn on simultaneously, the DC bus is shorted instantly.
Proper dead time design is critical to prevent this failure.
Q3: How do module selections differ?
- Half-bridge modules: Often used in high-current systems by paralleling multiple units (e.g., traction systems).
- Three-phase (6-pack) modules: Designed for high integration, commonly used in EV inverters and industrial drives. They reduce parasitic inductance and simplify thermal design.
