• IPM-DIP-25 Package

    600V Intelligent Power Module for Home Applications

  • What are the differences of SHYSEMI's IPM?

    DIP-25 packages are preferred in scenarios where reliability, power capability, and ease of use take precedence over size constraints. This 600V IPM is an integrated industrial power semiconductor module designed for frequency converter and inverter applications.

    Compared with ultra-high-density packages, DIP-25 features lower parasitic capacitance and inductance between pins. Designers benefit from greater routing flexibility on both sides and inner layers of the PCB, allowing for optimized power distribution and signal isolation.

  • Select model

    product image
    [ SYIM10G60BTE ] 600V/10A, Integrated 6 low-loss IGBTs, Insulation class 1500Vrms/min

  • Applications:

    This 600V Intelligent Power Module (IPM) is an integrated industrial power semiconductor module designed for motor drive and inverter applications.

    By combining IGBT devices, gate drivers and protection circuits in one package, the module improves system reliability, reduces PCB complexity and shortens product development cycles for industrial power electronics designs.

    • Air conditioning compressor
    • Refrigerator compressor
    • Frequency converter
    • Washing Machine

  • Features:

    • Integrated 6 fast recovery power MOSFETs
    • Integrated high voltage gate drive circuit
    • Compatible with 3.3 V & 5 V input signal, effective at high level
    • Integrated temperature output
    • Built-inquick recovery boot strap diode
    • Insulation class 1500 Vrms / min
    • Integrated bootstrap functionality
    • High reliability and thermal stability, good parameter consistency

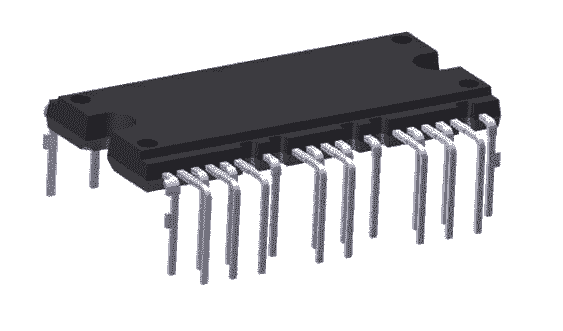

    Section image
