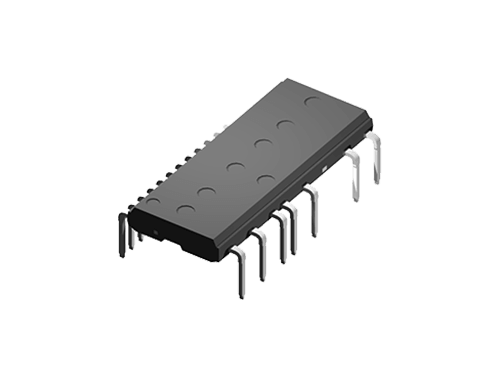

SYIM03M60ATA: 600V/3A, 3-phase IPM with built-in drivers
Package Type: DIP-23
RDS(on)@Typ.Tj=25°C: 2.5
Highly integrated 600V/3A three-phase IPM with built-in drivers and protection, offering high reliability, excellent thermal stability, and simplified system design.
It is suitable for use in inverters for refrigerator compressors, air conditioner compressors, dishwashers, etc.
RDS(on)@Typ.Tj=25°C: 2.5
Highly integrated 600V/3A three-phase IPM with built-in drivers and protection, offering high reliability, excellent thermal stability, and simplified system design.
It is suitable for use in inverters for refrigerator compressors, air conditioner compressors, dishwashers, etc.
More Details
Applications:
- Frequency converter
- Air Conditioning compressor
- Air cleaner
- Dish washer
- Cooker hood
- Refrigerator compressor
Features:
- Integrated 6 fast recovery power MOSFETs
- Integrated high voltage gate drive circuit
- Compatible with 3.3 V & 5 V input signal, effective at high level
- Integrated temperature output
- Built-inquick recovery boot strap diode
- Insulation class 1500 Vrms / min
- Integrated bootstrap functionality
- High reliability and thermal stability, good parameter consistency
Internal Electrical Schematic:
