[ SYIM03M60ATA ] 600V 3A, 3-phase IPM with built-in drivers
RDS(on)@Typ.Tj=25°C: 2.5
Pin No. : 23
Highly integrated 600V/3A three-phase IPM with built-in drivers and protection, offering high reliability, excellent thermal stability, and simplified system design.
It is suitable for use in inverters for refrigerator compressors, air conditioner compressors, dishwashers, etc.
Pin No. : 23
Highly integrated 600V/3A three-phase IPM with built-in drivers and protection, offering high reliability, excellent thermal stability, and simplified system design.
It is suitable for use in inverters for refrigerator compressors, air conditioner compressors, dishwashers, etc.
More Details
Applications:
- Frequency converter
- Air Conditioning compressor
- Air cleaner
- Dish washer
- Cooker hood
- Refrigerator compressor
Features:
- Integrated 6 fast recovery power MOSFETs
- Integrated high voltage gate drive circuit
- Compatible with 3.3 V & 5 V input signal, effective at high level
- Integrated temperature output
- Built-inquick recovery boot strap diode
- Insulation class 1500 Vrms / min
- Integrated bootstrap functionality
- High reliability and thermal stability, good parameter consistency

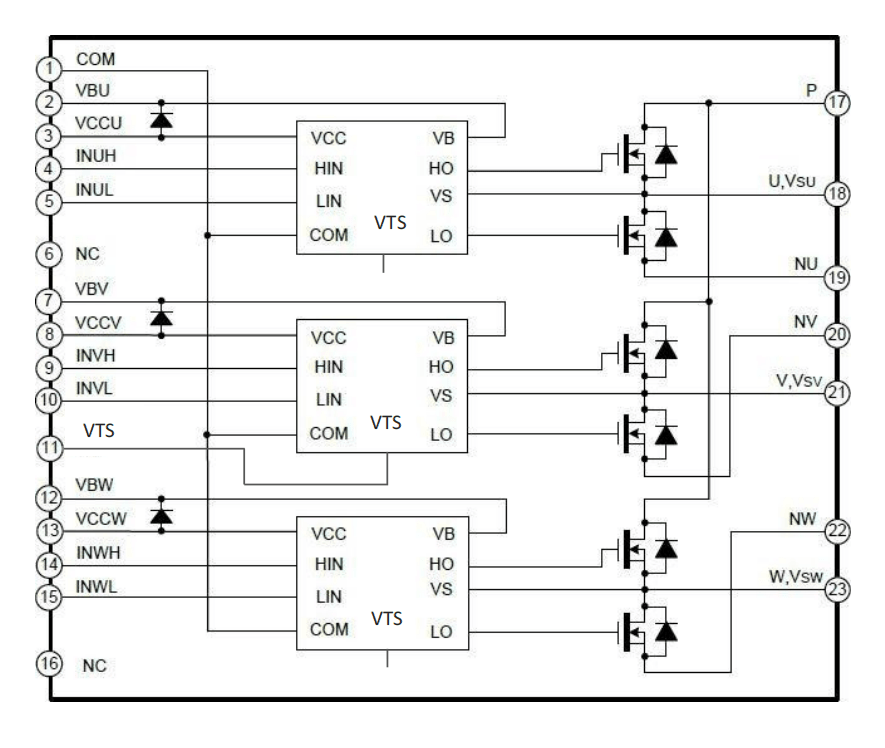

Internal Electrical Schematic:
